Front Door Panel: Service and Repair

REMOVAL

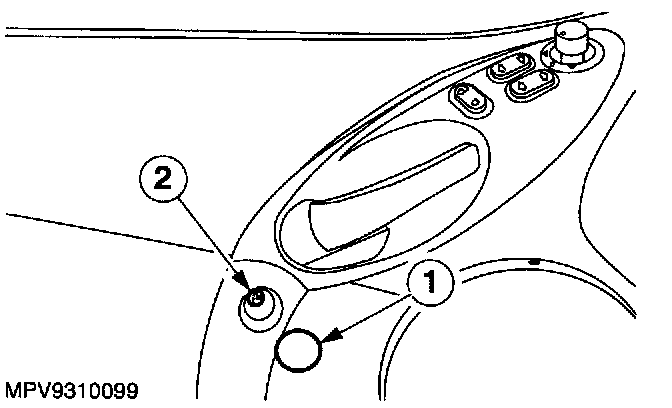

1. Remove the door pull handle screw.
1 Remove the screw cover.
2 Remove the screw.

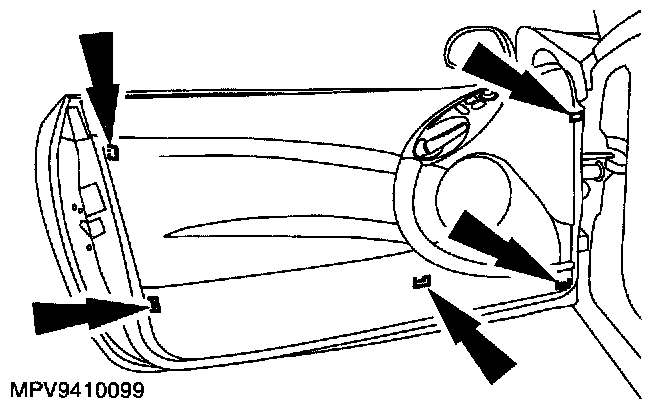

2. Detach the door trim panel.

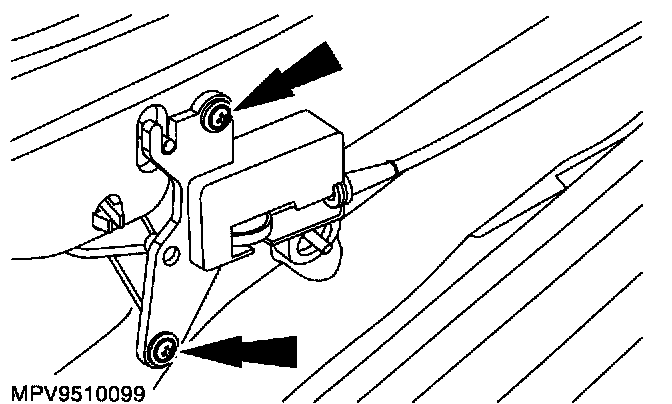

3. Detach the remote door release handle.

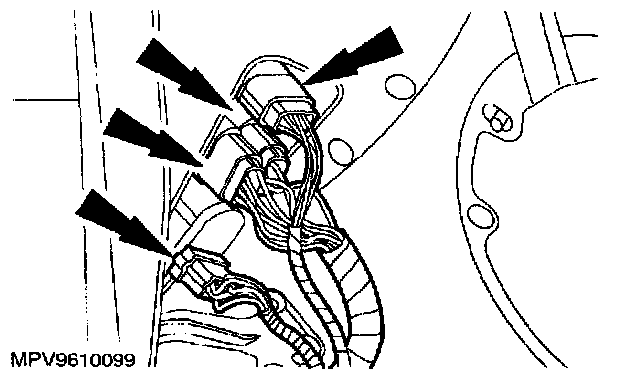

4. Disconnect the electrical connectors.
- Remove the trim panel.

INSTALLATION
1. To install, reverse the removal procedure.
