Component Tests and General Diagnostics

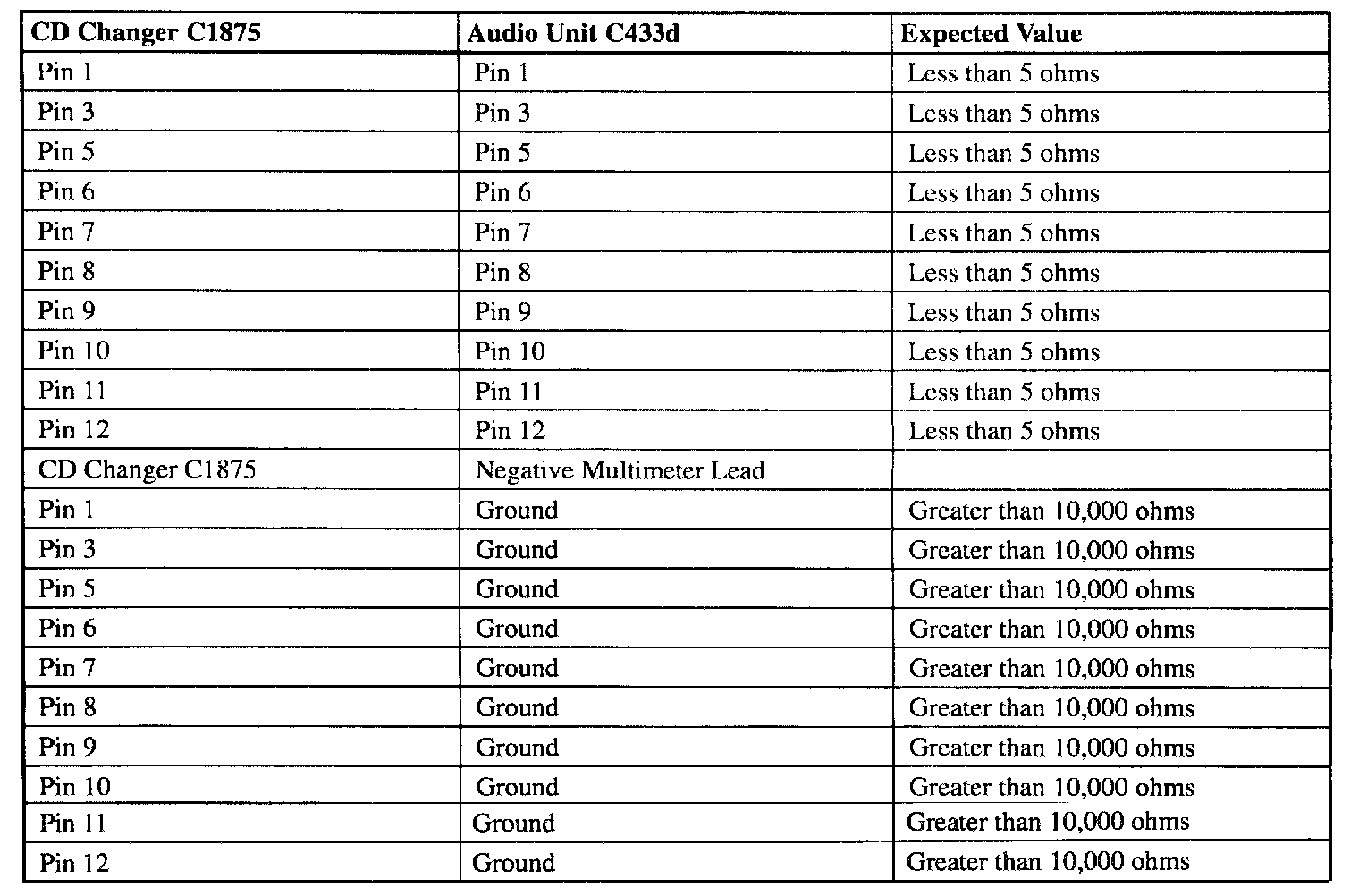

1. Using a multimeter, test the CD changer hamess using the following table as a guide to meter lead placement as well as expected values.
2. If routed here from a Pinpoint Test, return to the Pinpoint Test.
