Radio/Stereo: Service and Repair

Radio Removal Tool:

SPECIAL SERVICE TOOLS

REMOVAL
1. Disconnect the battery ground cable.

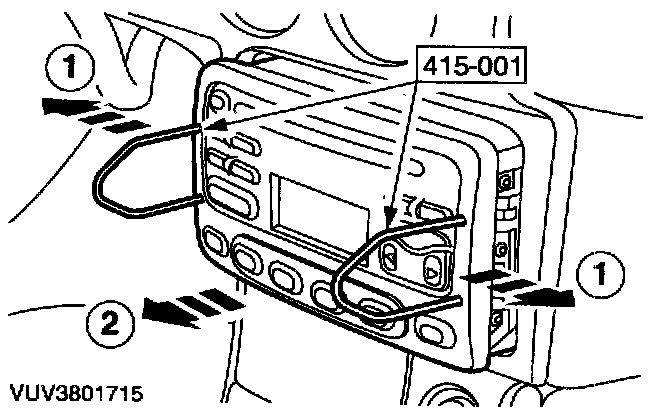

2. Using the special tool, detach the audio unit.
^ Insert the special tool into the locating holes until they click into place.
1 Pull the tools gently to the left and right of the unit to release the locking tangs.
2 Pull the unit out of the instrument panel.

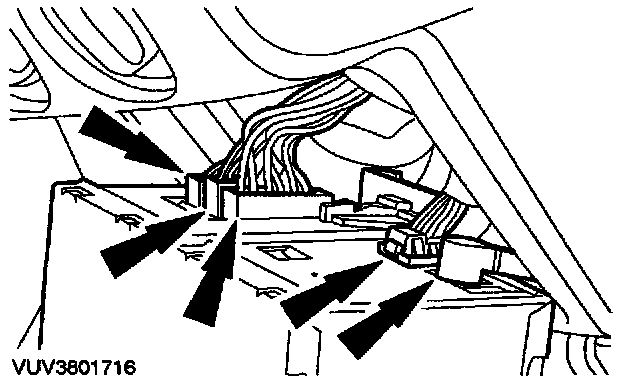

3. Remove the audio unit.
^ Disconnect the four electrical connectors.
^ Disconnect the audio unit antenna cable.

INSTALLATION
1. To install, reverse the removal procedure.
