E: PATS Transceiver Signal Is Not Received

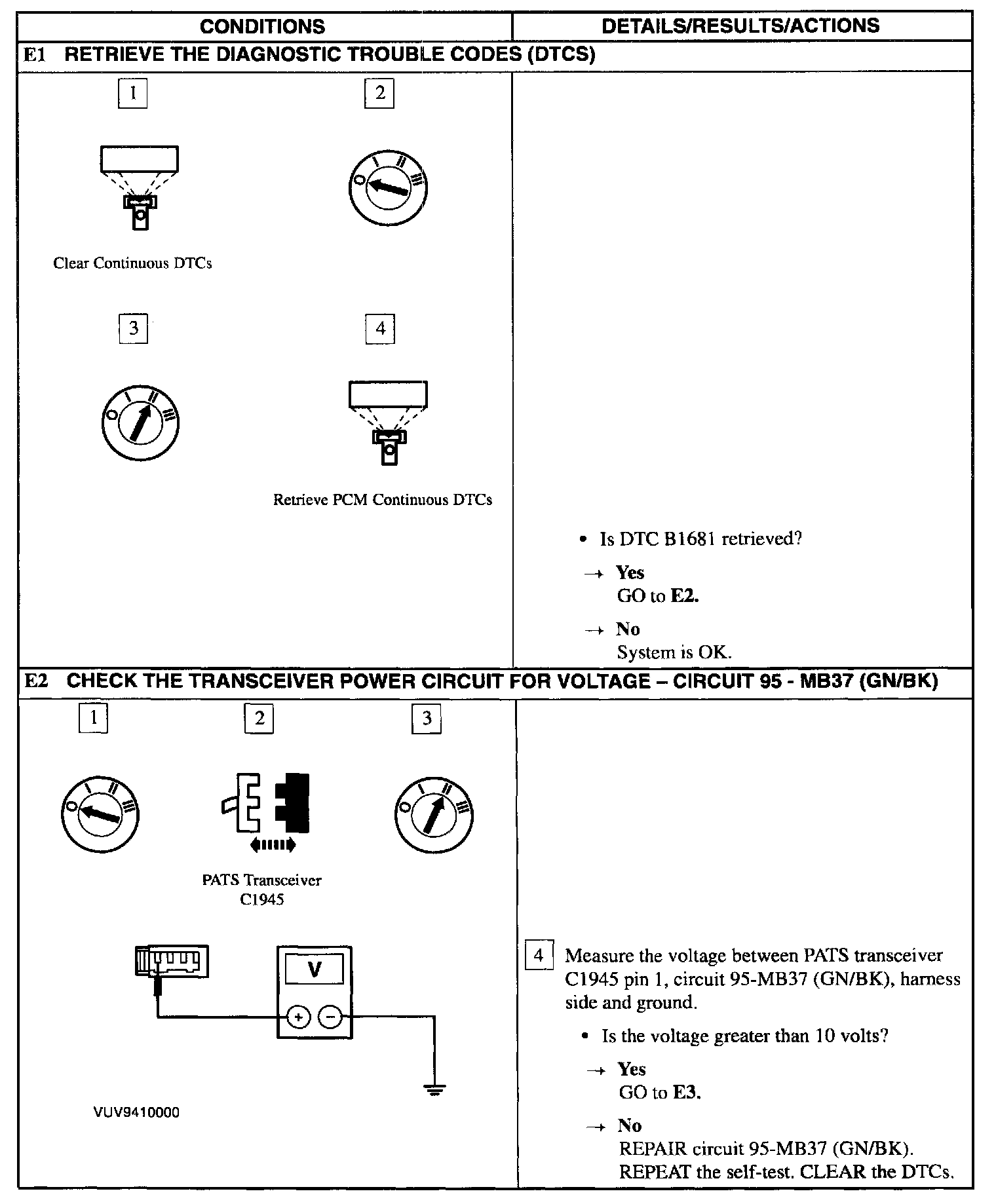

E1 - E2:

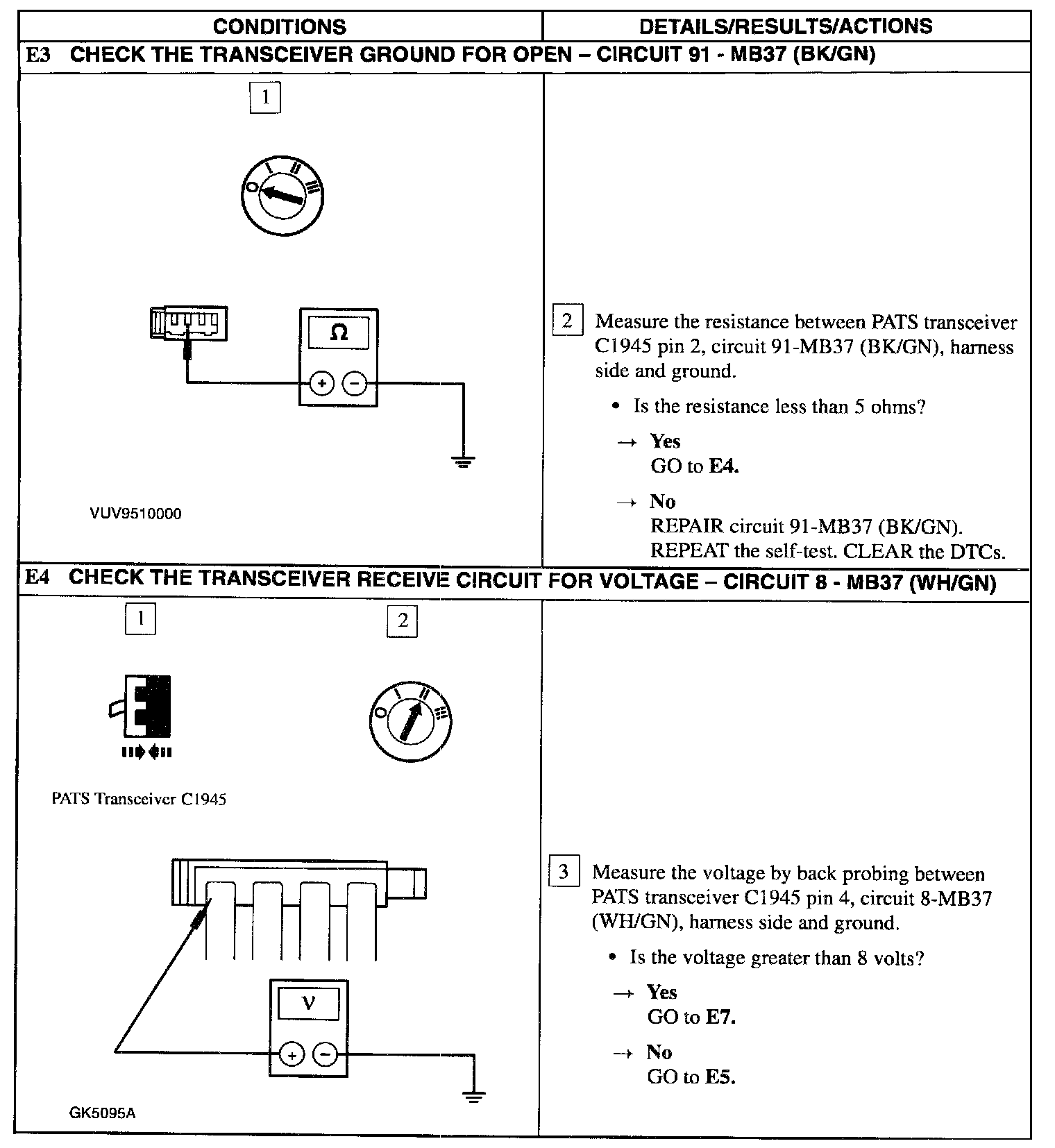

E3 - E4:

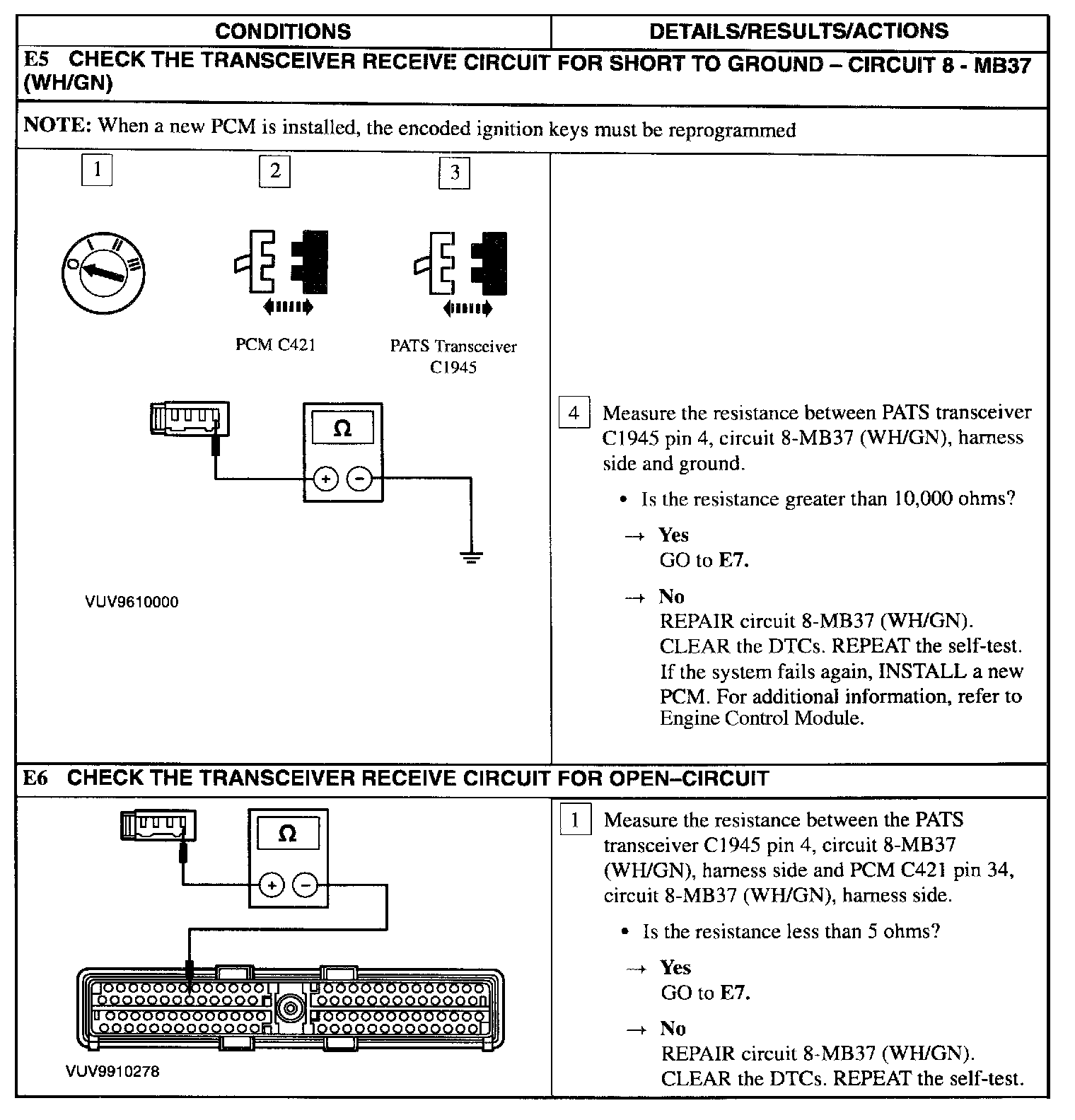

E5 - E6:

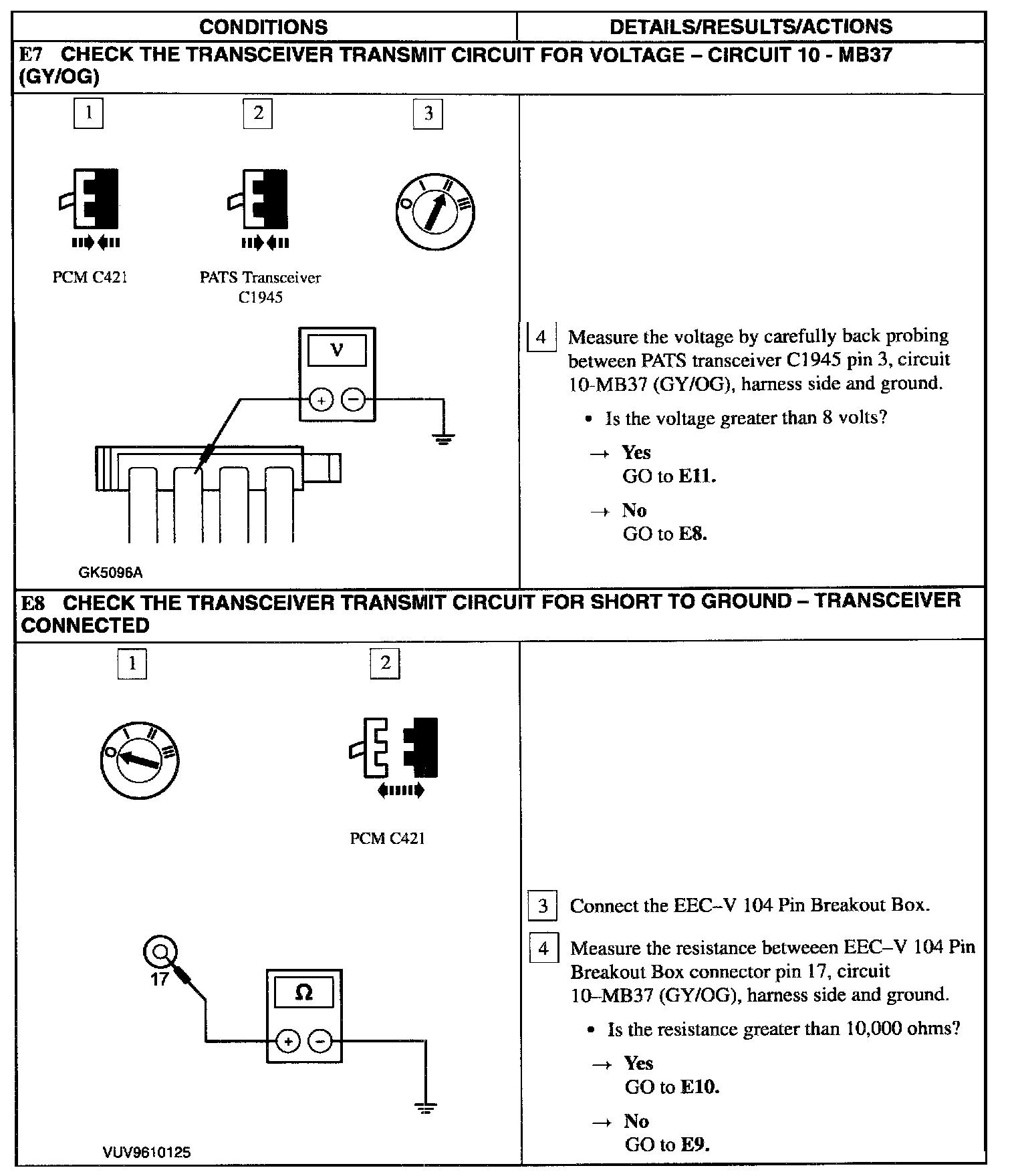

E7 - E8:

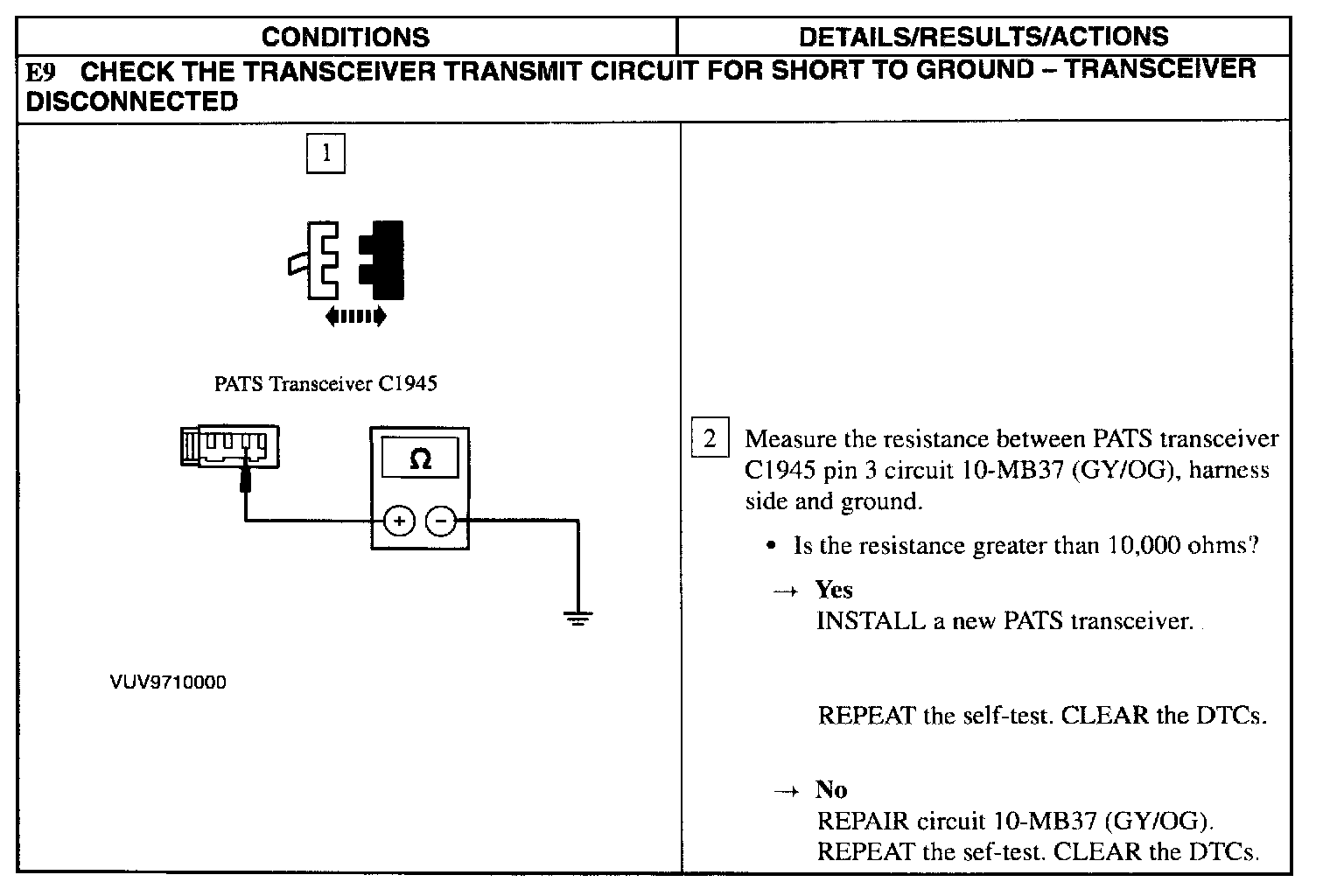

E9:






E10 - E11:

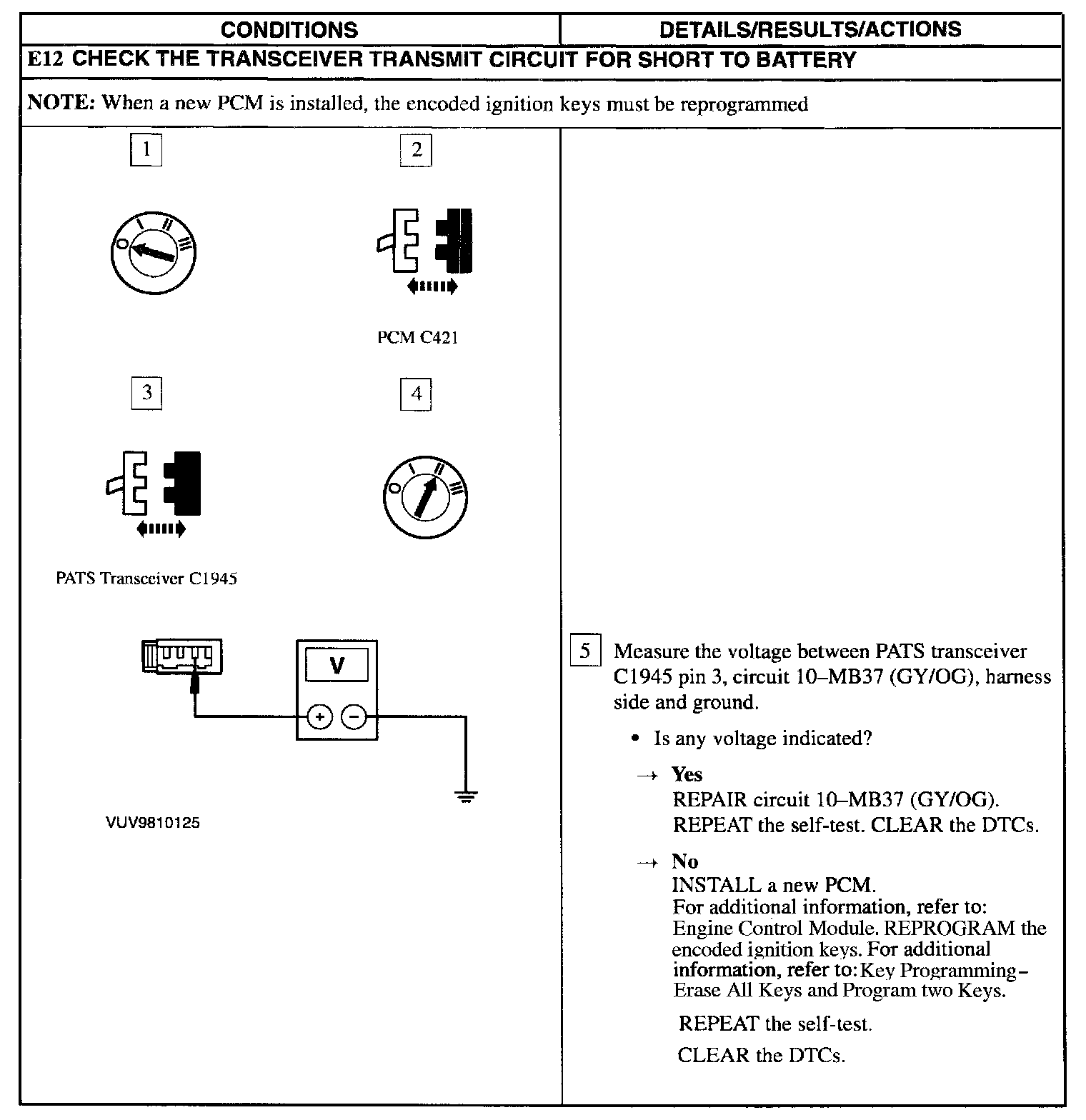

E12:
