Pivot Arm-Rear Window Wiper

REMOVAL







1. Remove the rear wiper output arm cover.

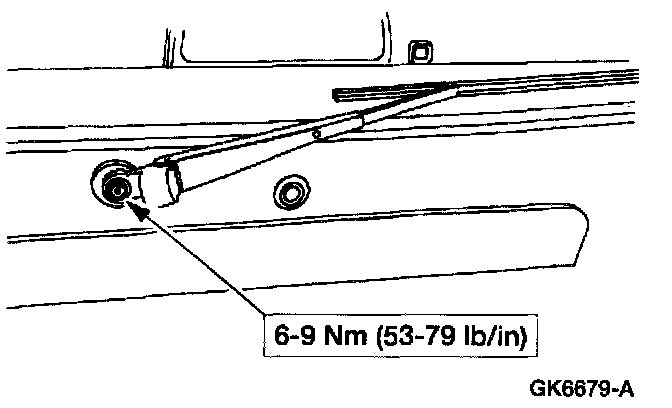

2. Remove the rear window wiper pivot arm nut.
3. Pull upward and twist to remove the rear wiper pivot arm.

INSTALLATION







1. To install, reverse the removal procedure.
^ If necessary, adjust the pivot arms.
