Pivot Arm

REMOVAL

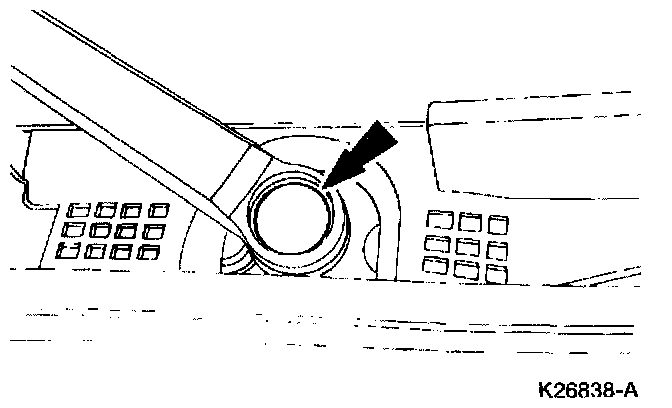

1. Remove the windshield wiper output arm cover.

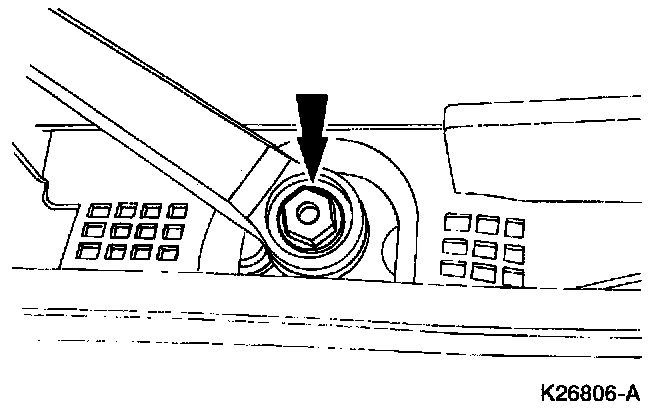

2. Remove the windshield wiper pivot arm nut.

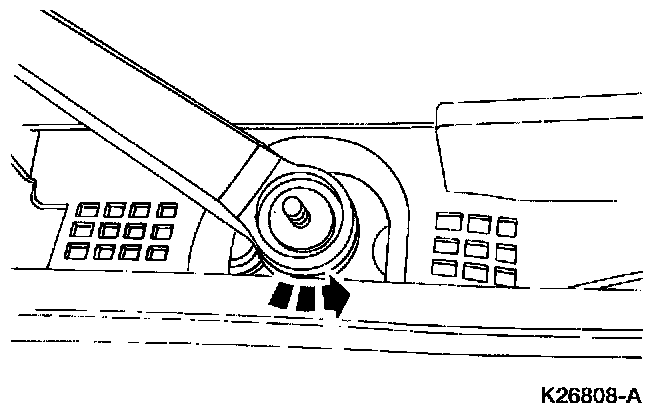

3. Pull upward and twist to remove the windshield wiper pivot arm.

INSTALLATION

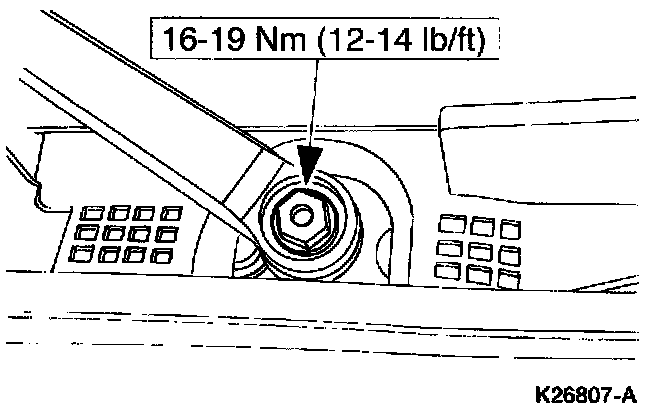

1. To install, reverse the removal procedure.
^ If necessary, adjust the windshield wiper pivot arms and wiper blades.
