Home >> Mercury >> 1998 >> Tracer L4-122 2.0L SOHC >> Repair and Diagnosis >> Wiper and Washer Systems >> Testing and Inspection >> Pinpoint Tests >> Test A: The Wipers Are Inoperative-Front, All Positions

Test A: The Wipers Are Inoperative-Front, All Positions

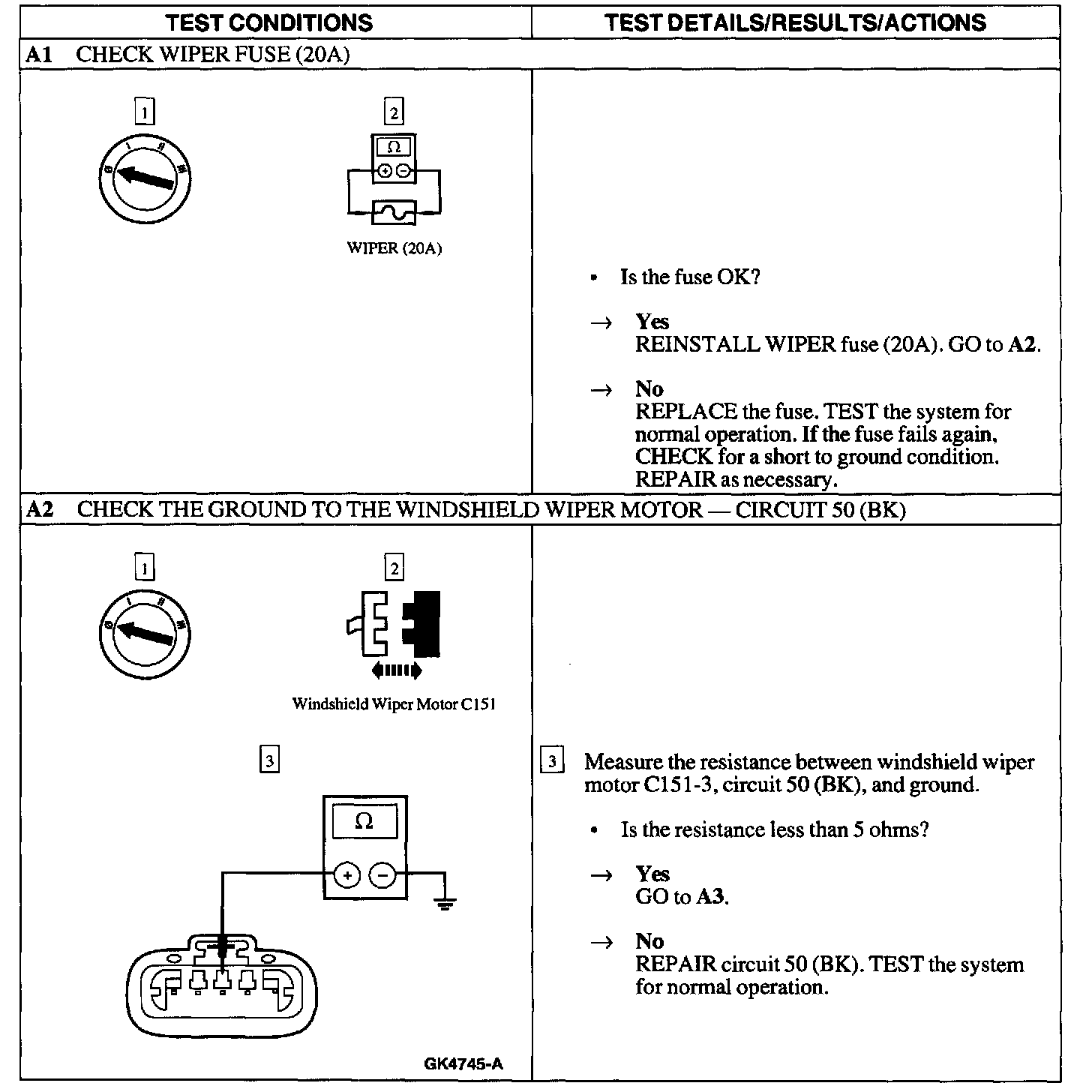

A1 - A2:



A3 - A5:
