Multi-Function Switch

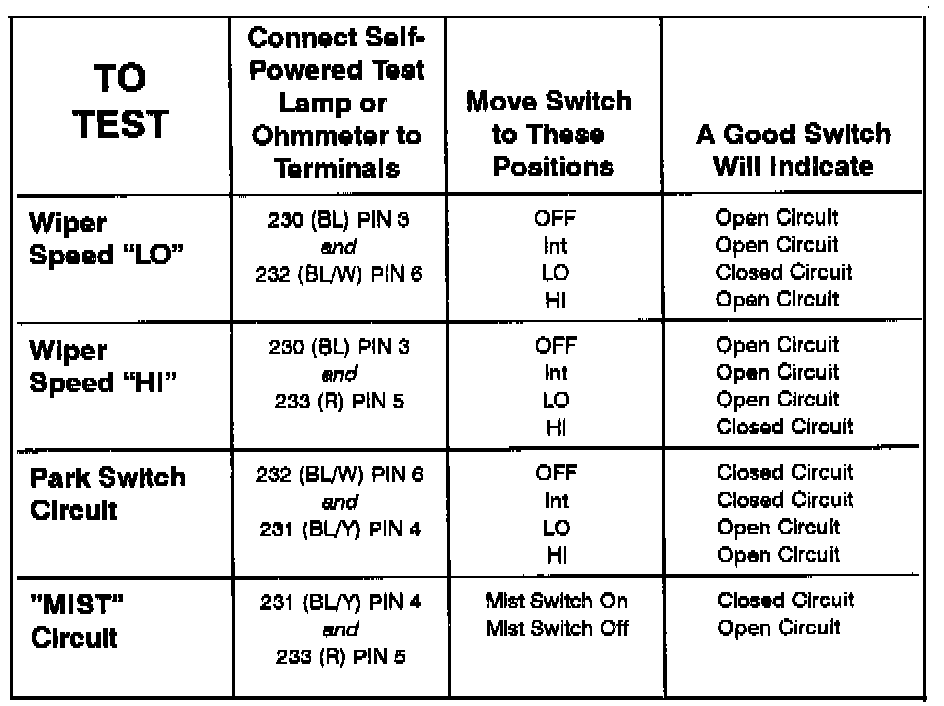

Multi-Function Switch - Component Testing Procedure:

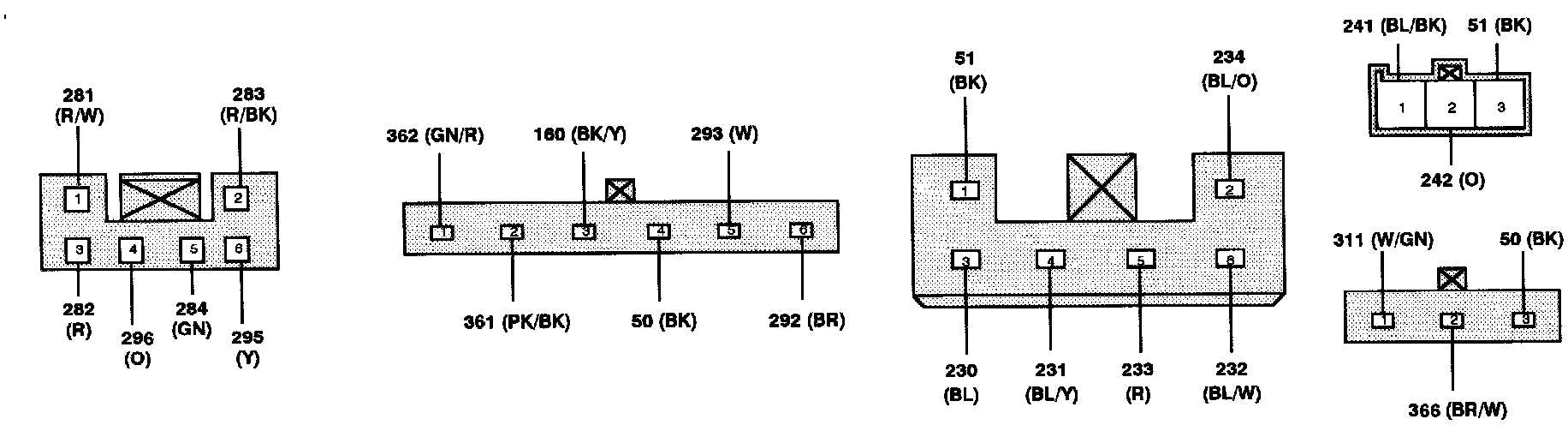

Multi-Function Switch - Terminal Locations:




Multi-Function Switch - Schematic:

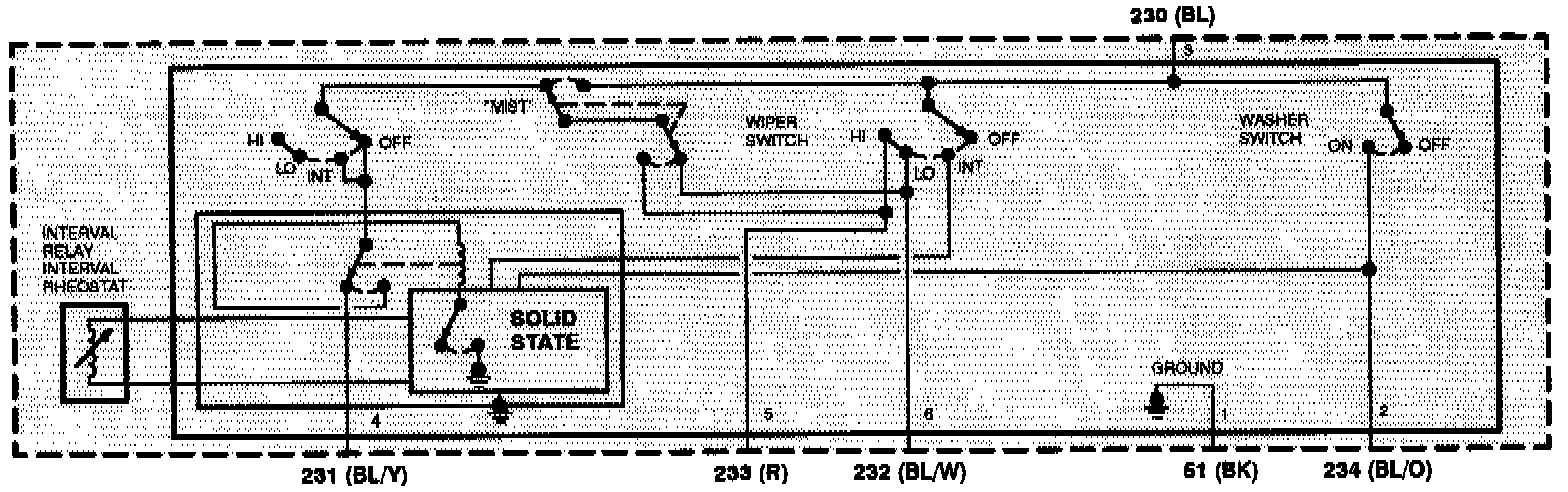

Multi-Function Switch - Schematic:
