Single Window Regulator Control-Sedan, Wagon

1. Key OFF.
2. Remove and disconnect the single window regulator control switch.

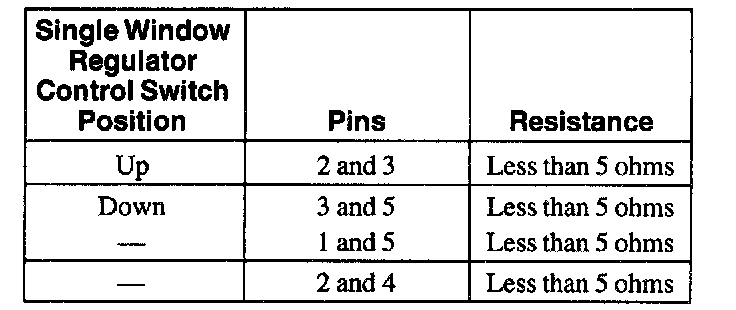

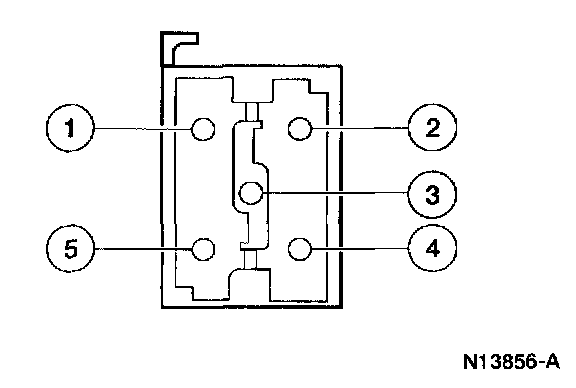

3. Measure the resistance between the following terminal pins of the single window regulator control switch:












4. If the single window regulator control switch fails any of these tests, replace it.
