Power Window Switch: Testing and Inspection

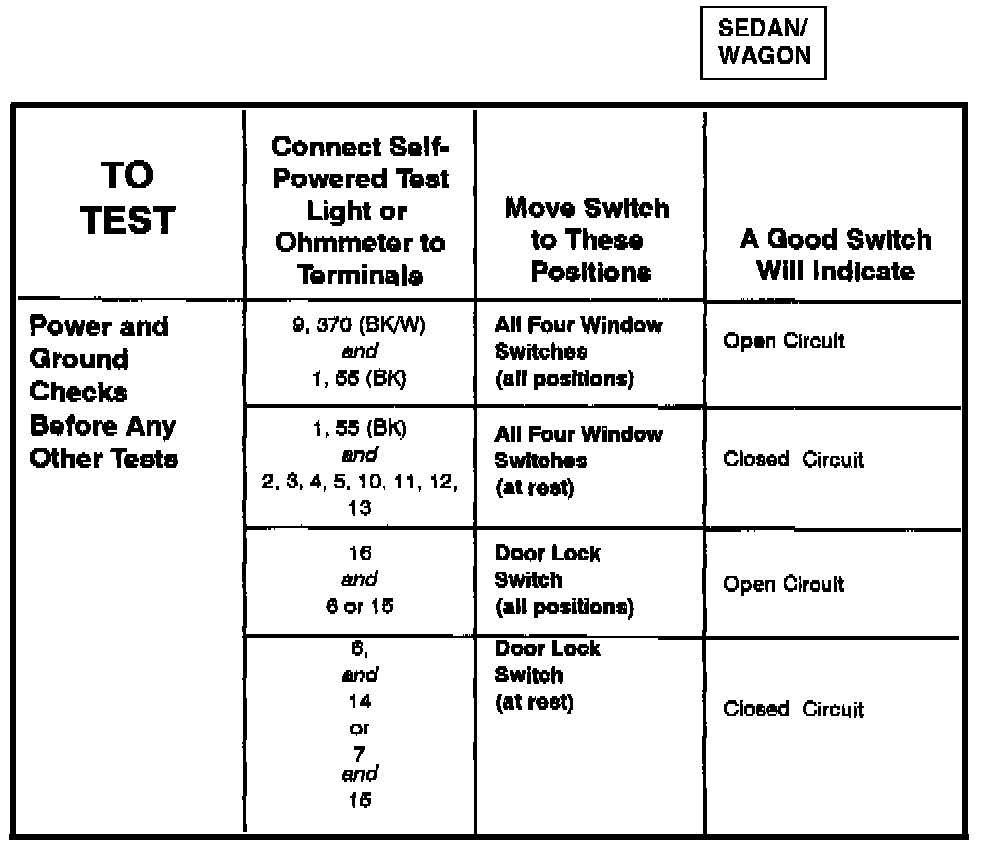

Master Window/Door Lock Switch - Component Testing Procedure:

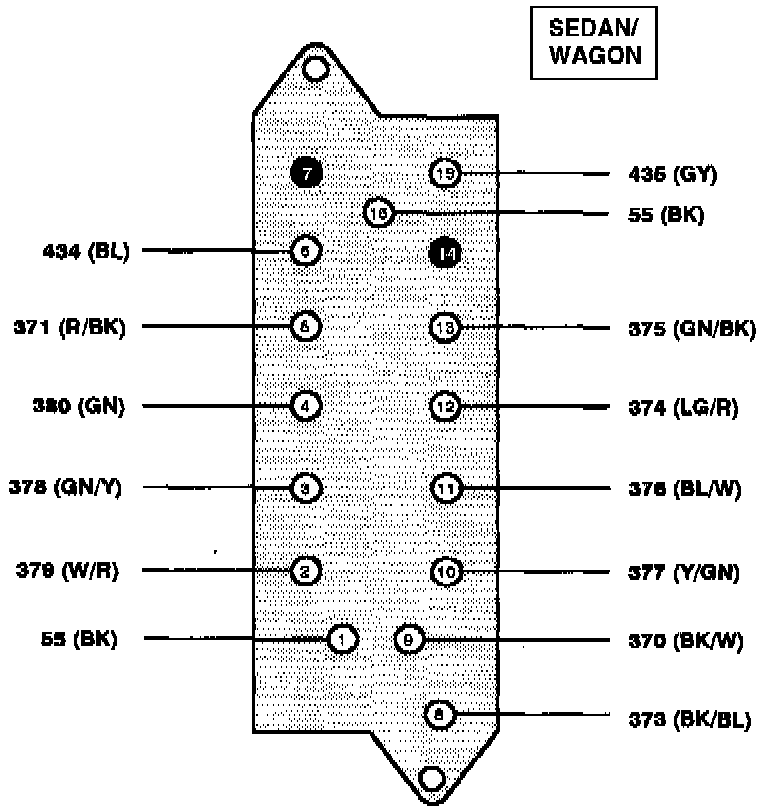

Master Window/Door Lock Switch - Terminal Locations:

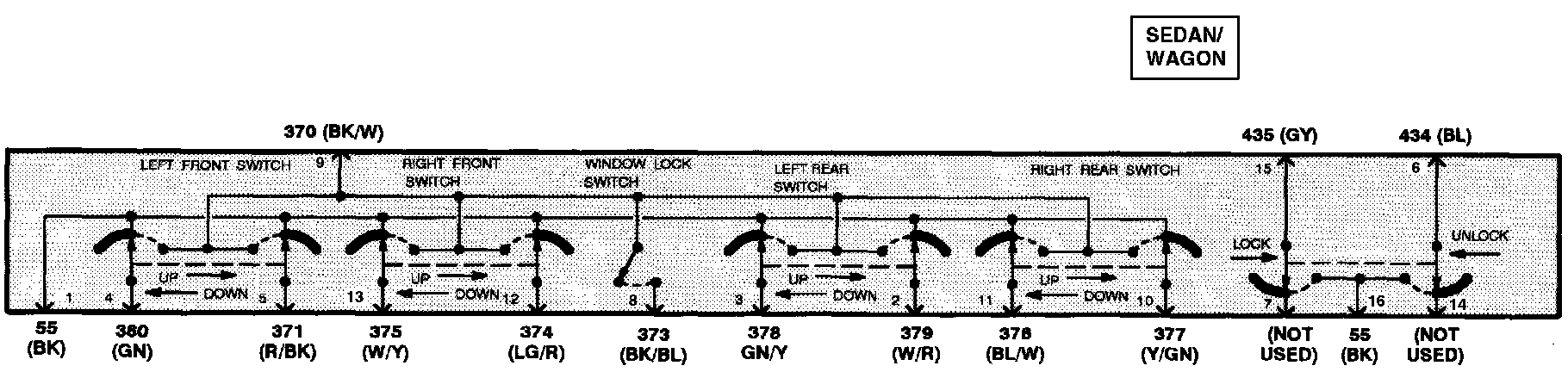

Master Window/Door Lock Switch - Schematic:
