Power Window Control Module: Locations

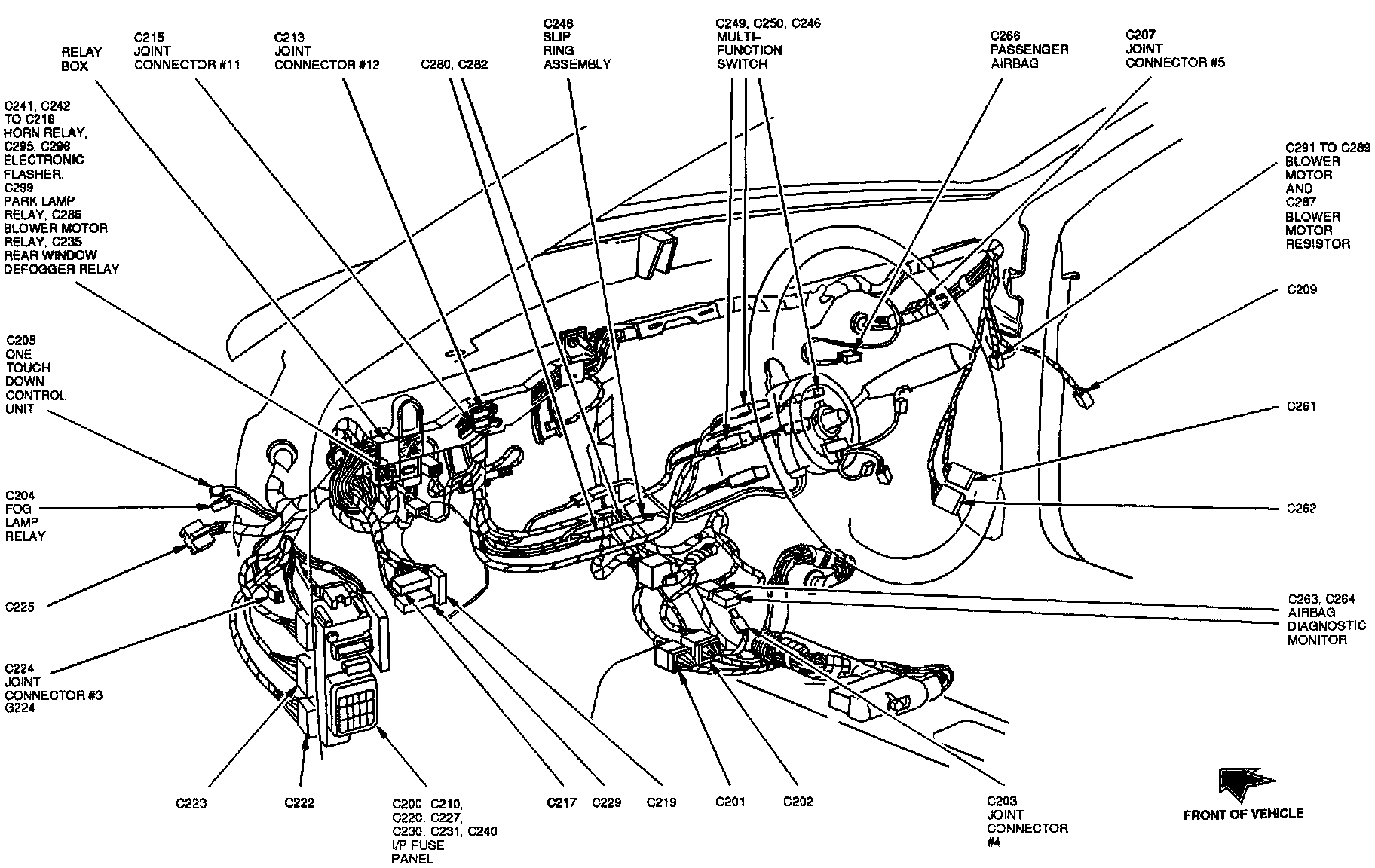

Cowl Views:





The One Touch Down Control Unit is located at LH side of I/P.
