Support Insulator LH

Special Tools:

REMOVAL
1. Remove the battery tray.





2. Install Three-Bar Engine Support.

NOTE: 2.0 L Zetec shown; 2.0 L SPI similar.

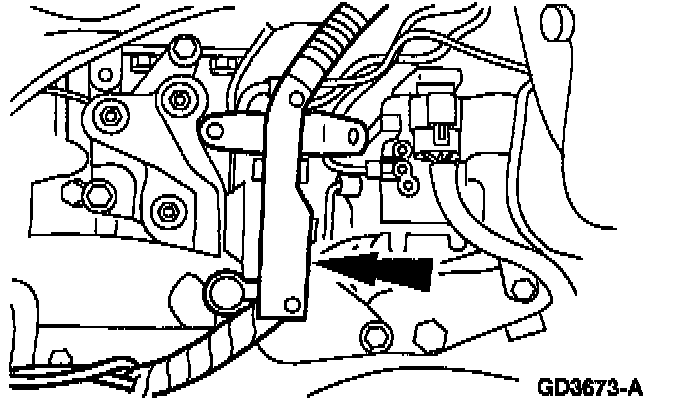

3. Remove the wiring harness from the LH support insulator and position aside.

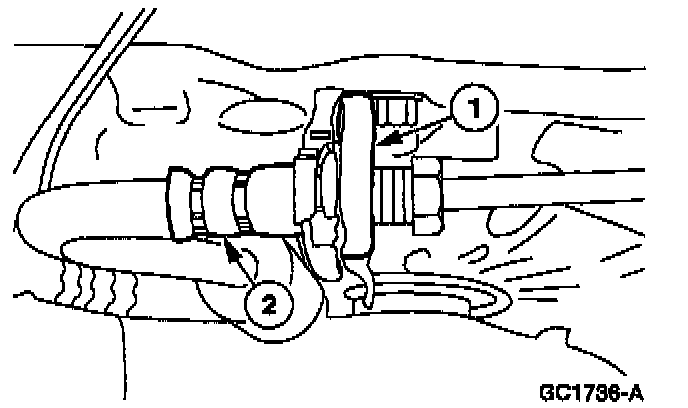

4. If equipped with the 2.0 L SPI, disconnect the clutch slave cylinder tube and hose from the LH insulator.
1 Remove the retaining clip.
2 Position the clutch slave cylinder tube and hose aside.





5. Remove the LH support insulator to transaxle nuts and washers.

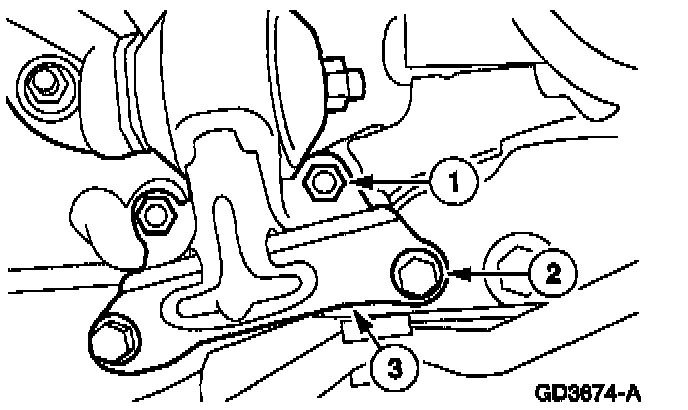

6. Remove the LH support insulator.
1 Remove the nuts.
2 Remove the bolts.
3 Remove the LH support insulator.

INSTALLATION

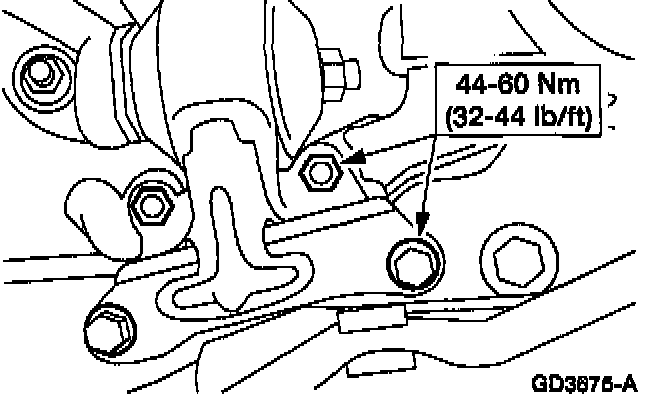

1. To install, reverse the removal procedure.
