Lower, Front

Special Tools:

REMOVAL





1. Install Three-Bar Engine Support.

NOTE: 2.0 L Zetec shown; 2.0L SPI similar.

2. Raise and support the vehicle.

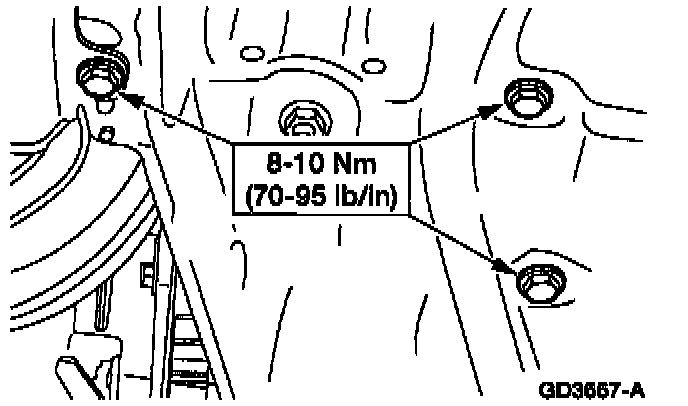

3. Remove the splash shield bolts from the engine support crossmember.

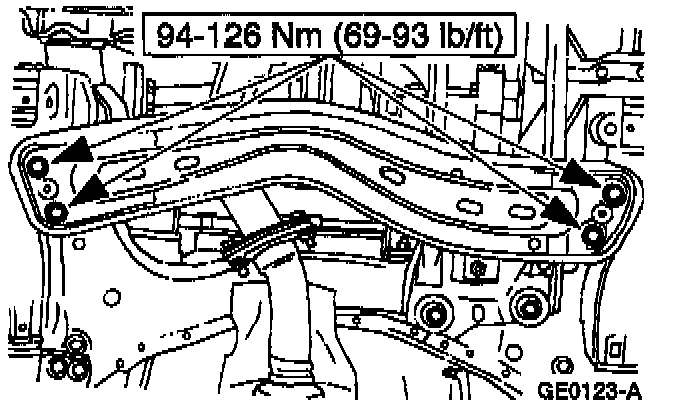

4. Remove the bolts and the crossmember.

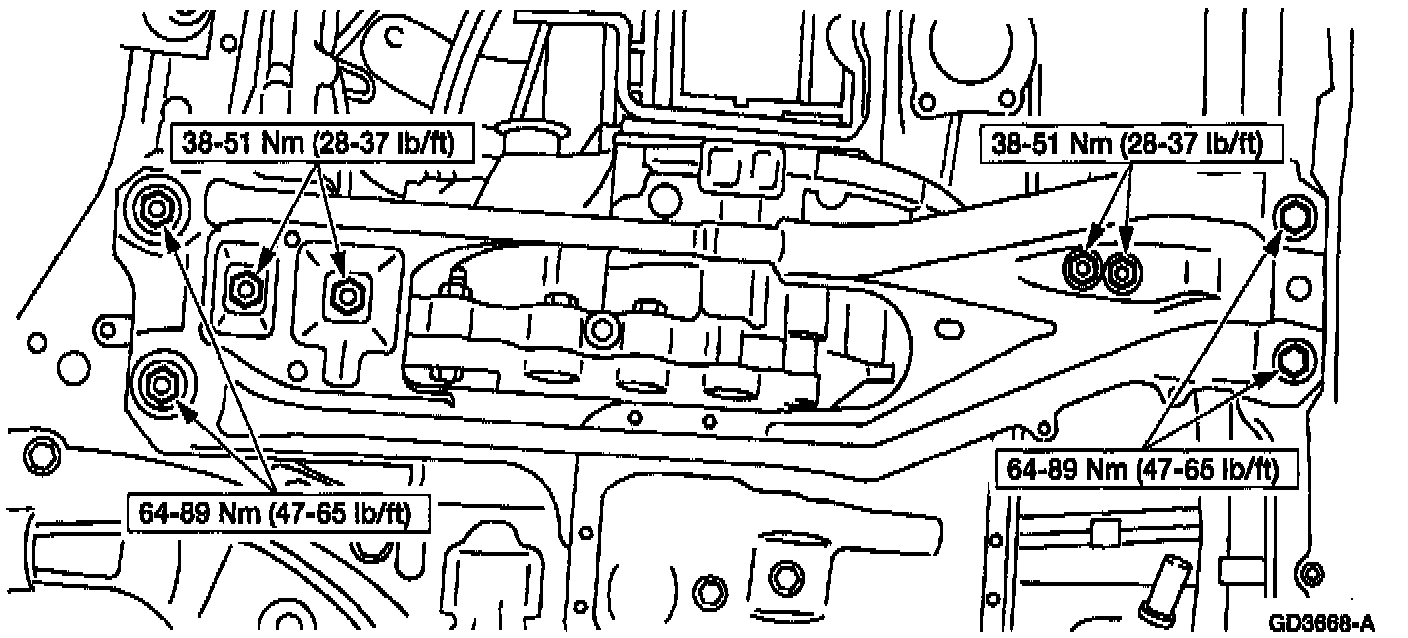

5. Remove the engine support crossmember.
1 Remove the bolts and nuts.
2 Remove the lower front insulator nuts.
3 Remove the lower rear insulator nuts.
4 Remove the engine support crossmember.

NOTE: Disconnect the A/C line from the retainer located on the front of the engine crossmember.

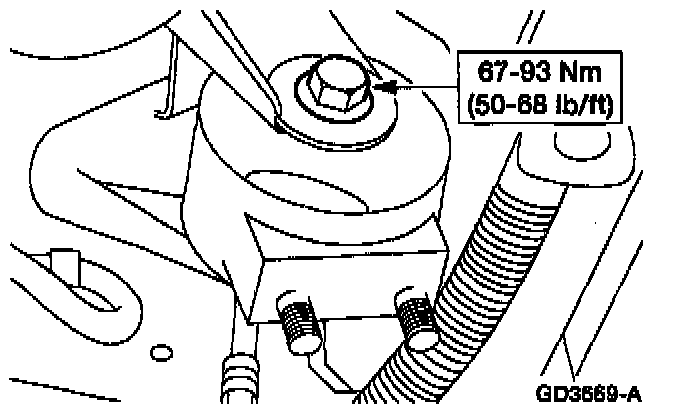

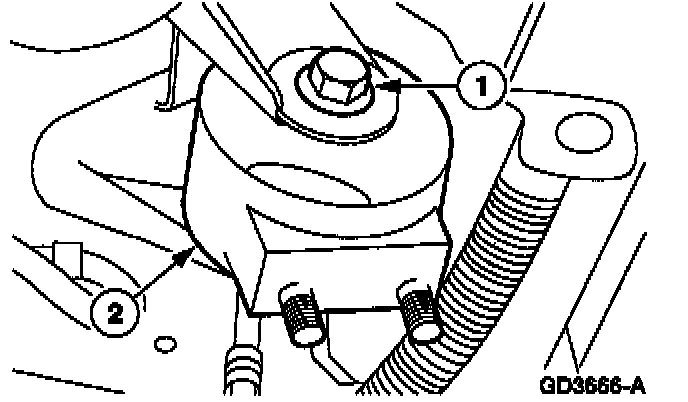

6. Remove the lower front support insulator.
1 Remove the bolt.
2 Remove the lower front support isolator.

INSTALLATION














1. To install, reverse the removal procedure.
