Shift Linkage: Description and Operation

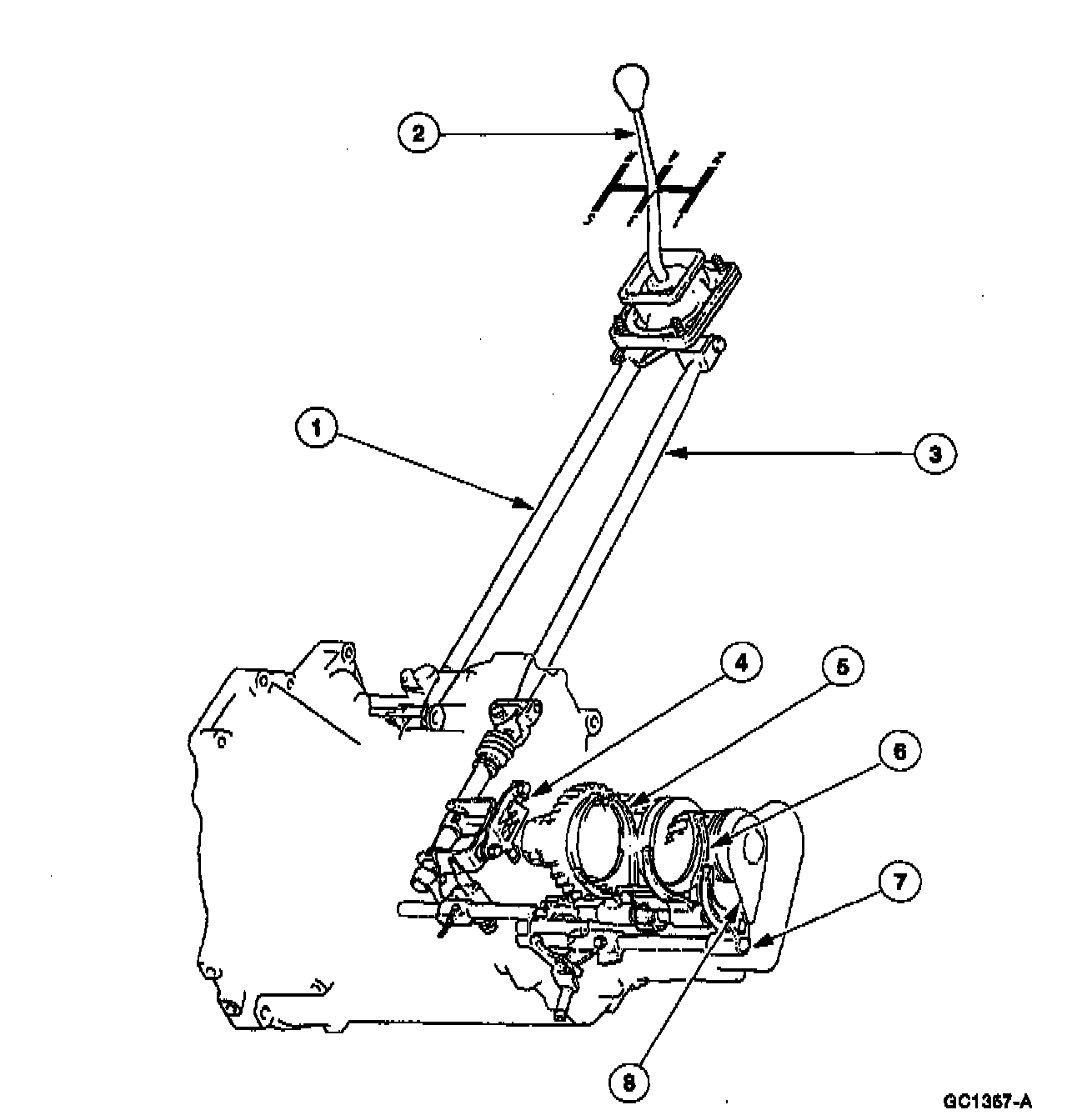

EXTERNAL SHIFT LINKAGE
The G15M-R manual transaxle is controlled by a floor-mounted gearshift lever located in the console panel. The gearshift lever is attached to the transaxle case through the gearshift lever stabilizer bar and support. Gearshift lever movements are transferred through the transmission gearshift rod and clevis.

INTERNAL SHIFT LINKAGE
The G15M-R manual transaxle is shifted internally by three shift forks. The fifth and reverse gear shifter fork shifts in and out of the fifth and reverse gears. The first/second and the third/fourth shift forks control all other forward gear shifts.
