Synchronizer Hub: Service and Repair

DISASSEMBLY

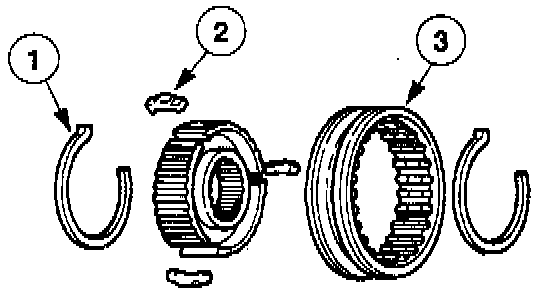

NOTE: First and second gear synchronizer shown; other synchronizers are similar.





1. Disassemble the synchronizer assembly.
1 Remove the synchronizer blocking springs.
2 Remove the synchronizer hub inserts.
3 Separate the synchronizer hub from the sleeve.

NOTE: Prior to disassembly, note the position of the index marks.

2. Inspect all synchronizer components for wear and damage.

ASSEMBLY





1. Assemble the synchronizer.
1 Position the synchronizer hub and sleeve together.
2 Install the synchronizer hub inserts.
3 Install the synchronizer blocking springs.

NOTE: Align the index marks during assembly.
