Halfshaft - Dynamic Damper

REMOVAL
1. Remove the RH front drive halfshaft.
2. Disassemble outboard joint.

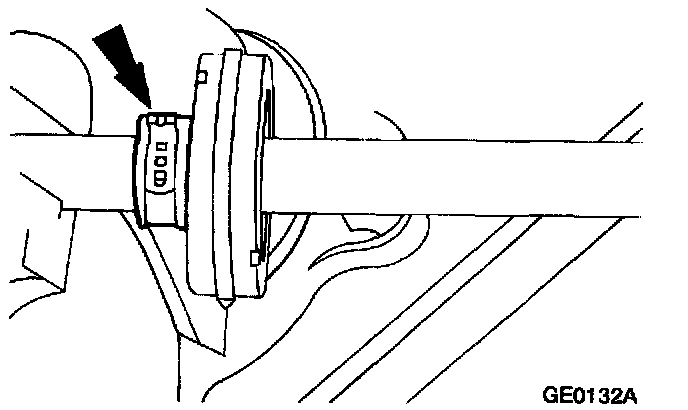

3. Remove and discard the dynamic damper retaining clamp and remove the dynamic damper.

NOTE: This procedure is required only if it is being replaced on the RH halfshaft.

INSTALLATION





1. To install, reverse the removal procedure.

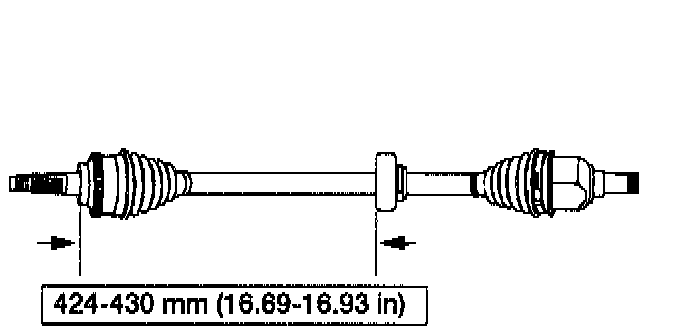

NOTE: Position the dynamic damper to specifications from the outboard driveshaft joint using a new retaining band to hold it in place.
