Seals and Gaskets: Service and Repair

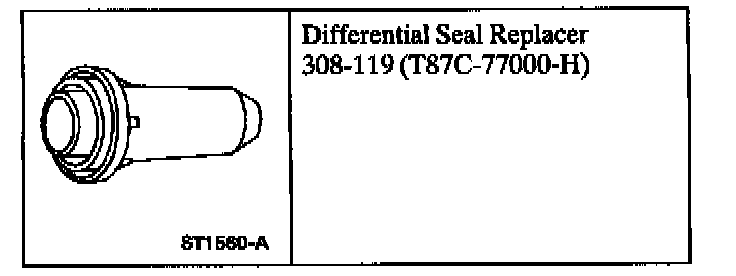

Special Tools:

REMOVAL
1. Drain the transaxle.
2. Remove the halfshaft.

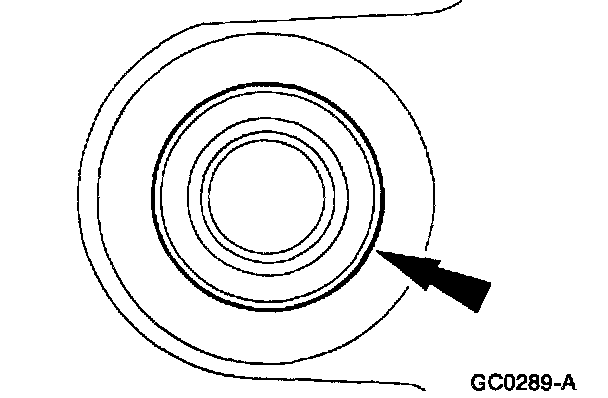

3. Remove the differential oil seal.

INSTALLATION

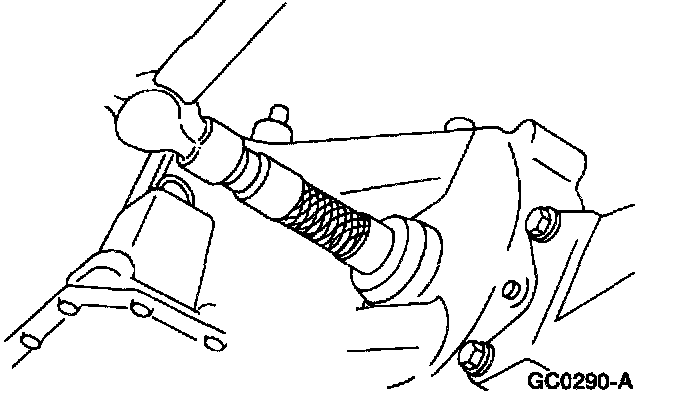

1. Use Differential Seal Replacer to install the new differential oil seal.
2. Install the halfshaft.
3. Fill the transaxle.
