Home >> Mercury >> 1998 >> Tracer L4-122 2.0L SOHC >> Repair and Diagnosis >> Transmission and Drivetrain >> Clutch >> Testing and Inspection >> Pinpoint Tests >> C: Clutch Drag

C: Clutch Drag

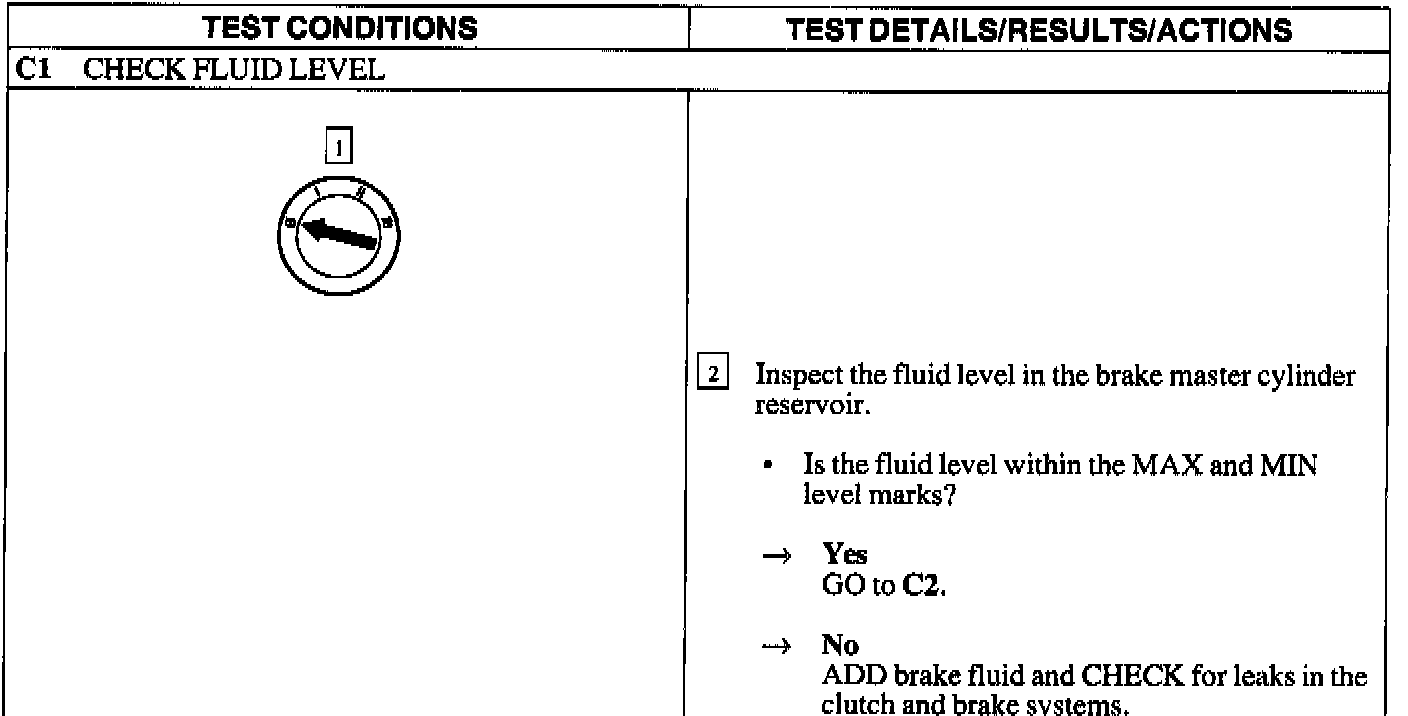

Test C1:

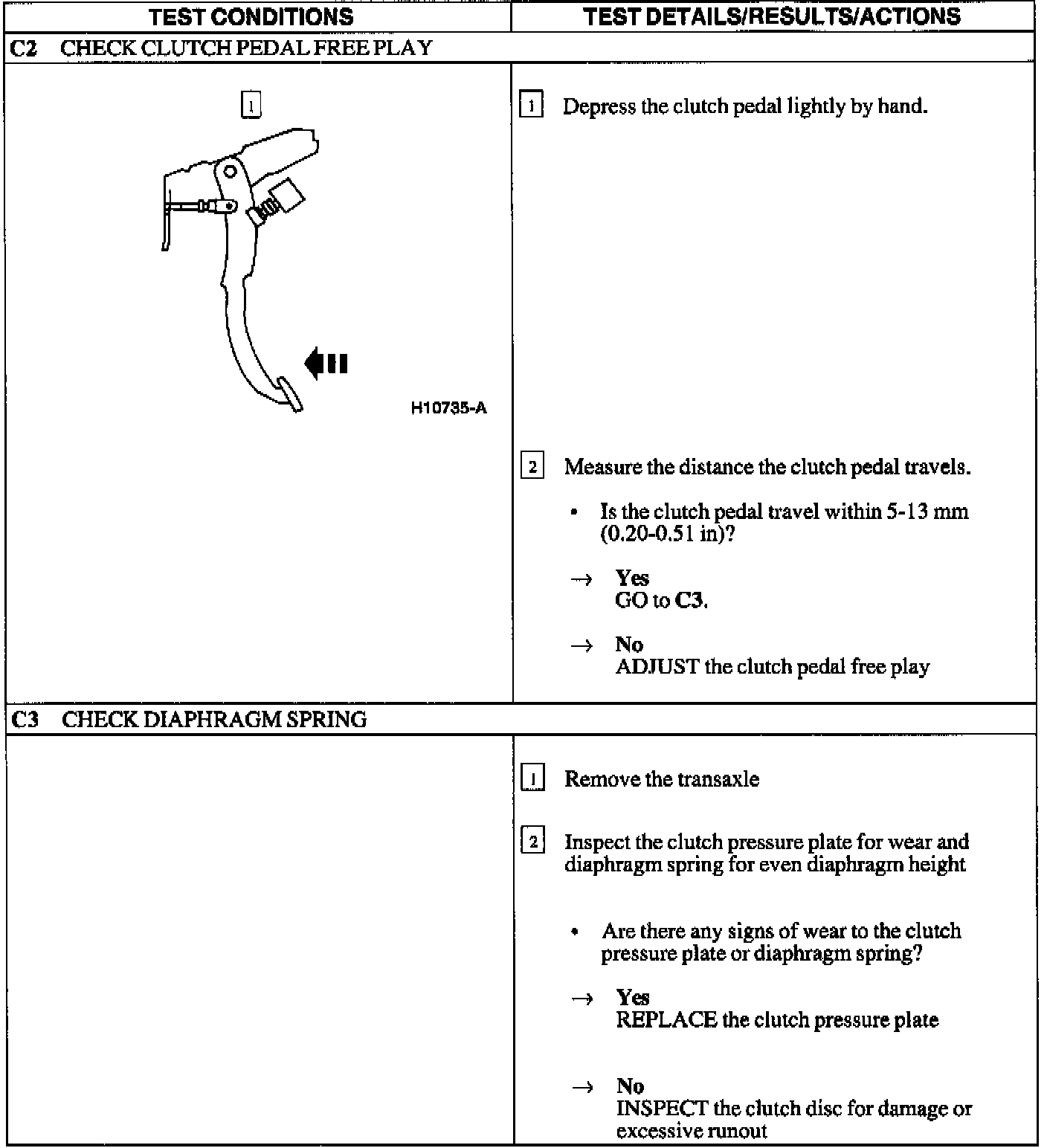

Test C2 - C3:
