Clutch Slave Cylinder: Service and Repair

REMOVAL

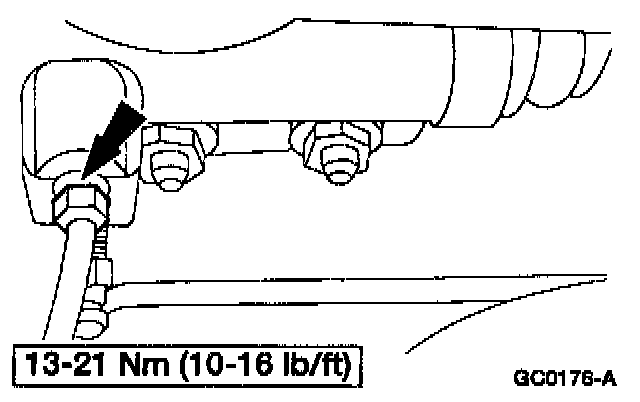

1. Disconnect the lower clutch slave cylinder tube and plug it to prevent excess fluid loss.

CAUTION: Brake fluid is harmful to painted and plastic surfaces. If brake fluid is spilled onto a painted or plastic surface, wash it immediately with water.





2. Remove the clutch slave cylinder nuts and the clutch slave cylinder.

INSTALLATION








1. To install, reverse the removal procedure.
^ Bleed the air from the system.
