Lower, Front

Special Tools:

REMOVAL

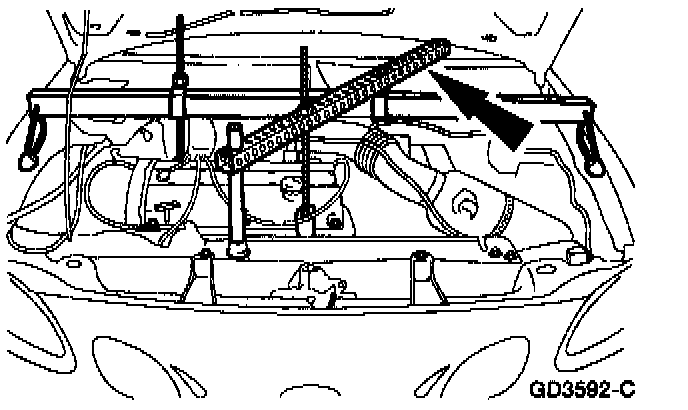

1. Install Three-Bar Engine Support.
2. Raise and support the vehicle.

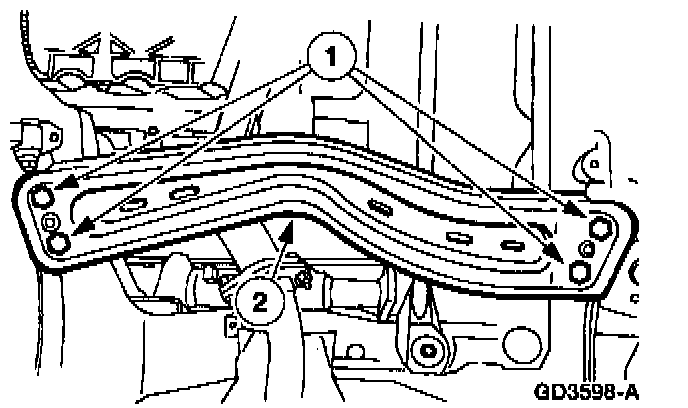

3. Remove the crossmember.
1 Remove the bolts.
2 Remove the crossmember.

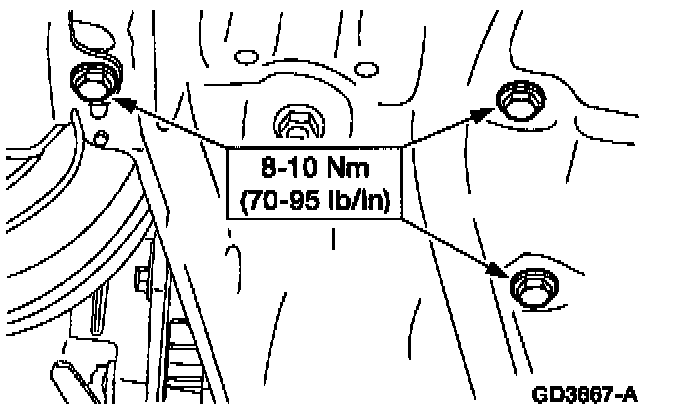

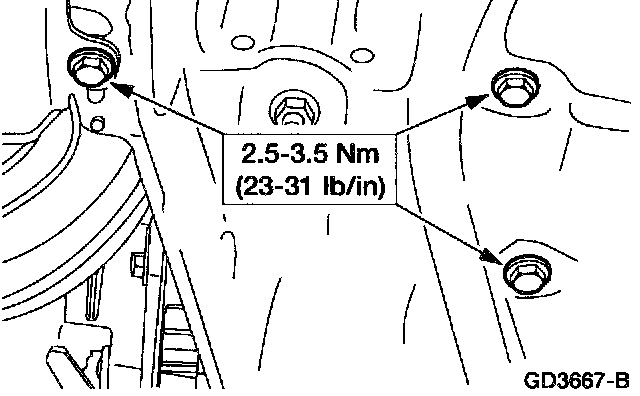

4. Remove the splash shield bolts from the transmission support crossmember.

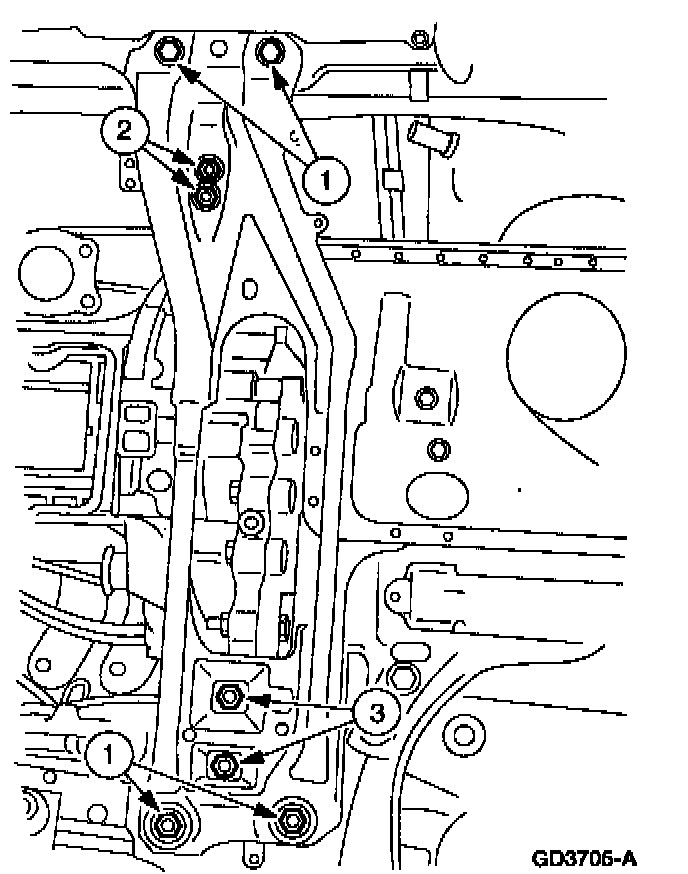

5. Remove the transmission support crossmember.
1 Remove the transmission support crossmember bolts and nuts.
2 Remove the LH front engine support insulator nuts.
3 Remove the transmission insulator nuts.

NOTE: Disconnect the A/C line from the retainer located on the front of the transmission support crossmember.

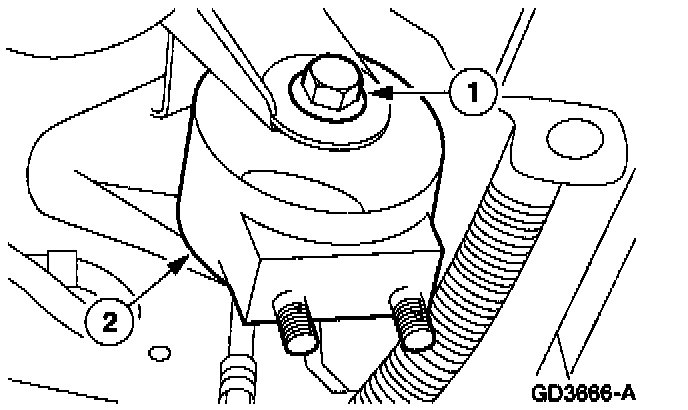

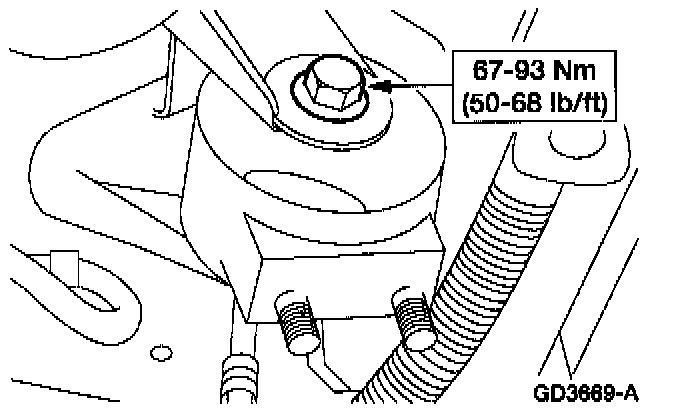

6. Remove lower front transmission isolator.
1 Remove the through bolt.
2 Remove the lower front support isolator.

INSTALLATION

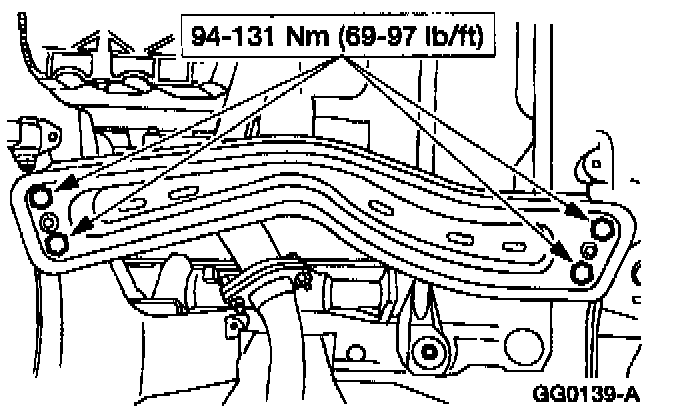

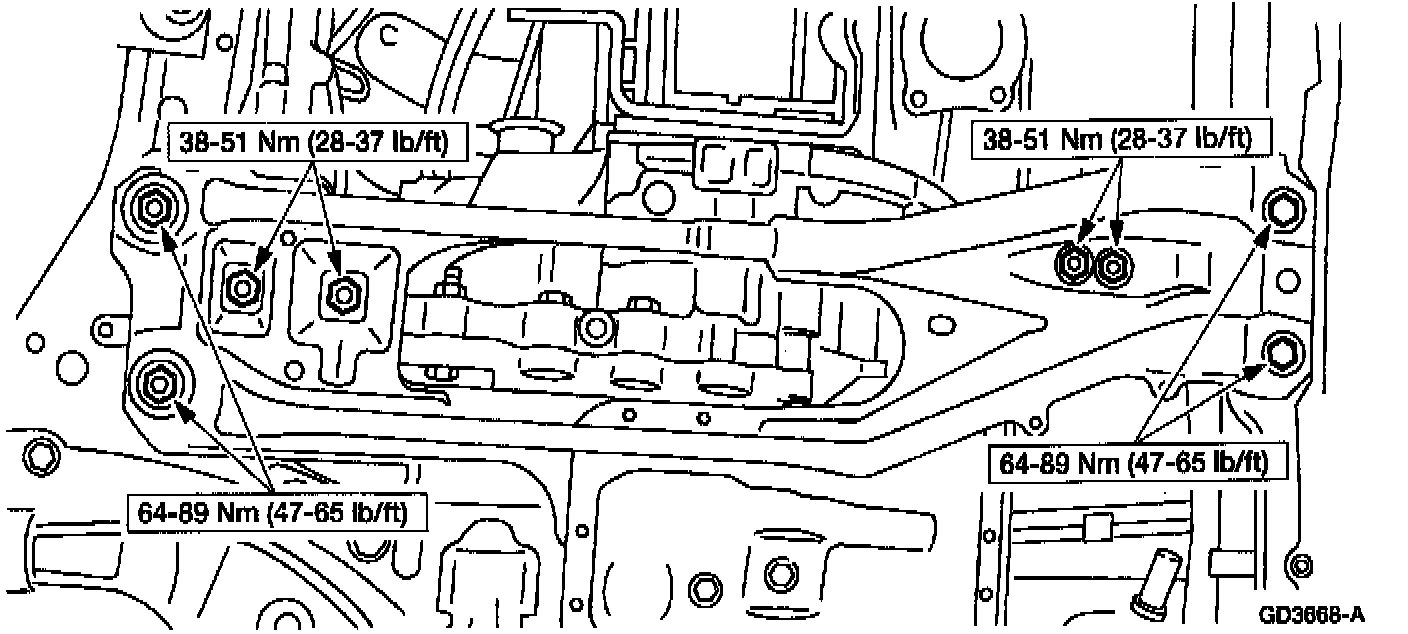

1. To install, reverse the removal procedure.
