LH

REMOVAL
1. Remove the battery tray.

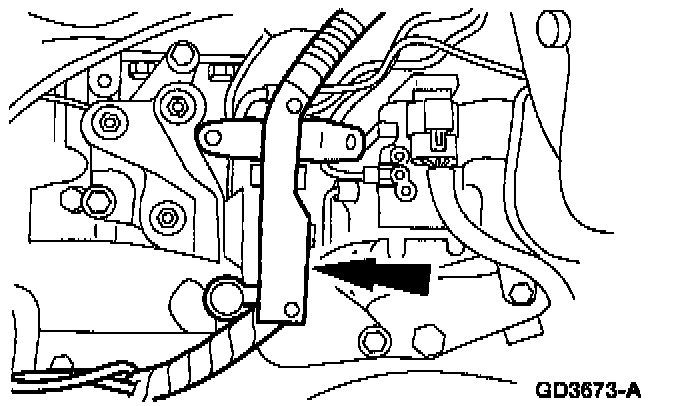

2. Remove the wiring harness from the LH transmission insulator and position it aside.

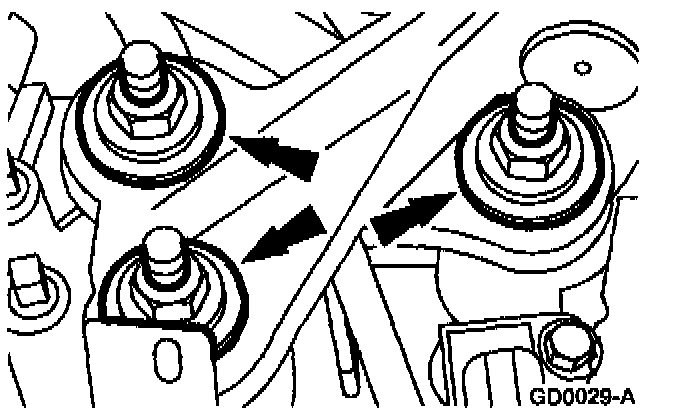

3. Remove the LH transmission insulator to transmission nuts and washers.





4. Remove the LH transmission insulator.

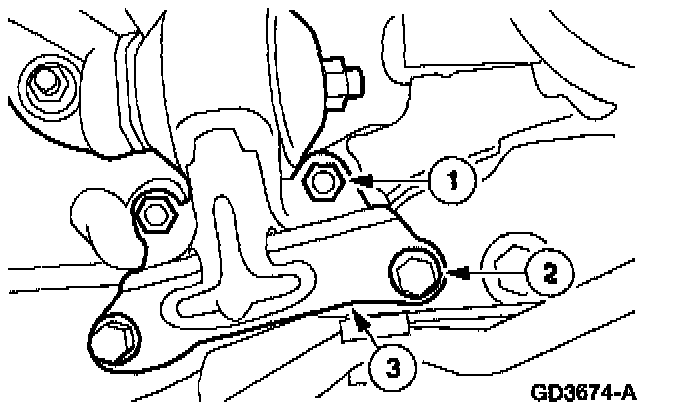

1 Remove the nuts.
2 Remove the bolts.
3 Remove the LH transmission insulator.

INSTALLATION

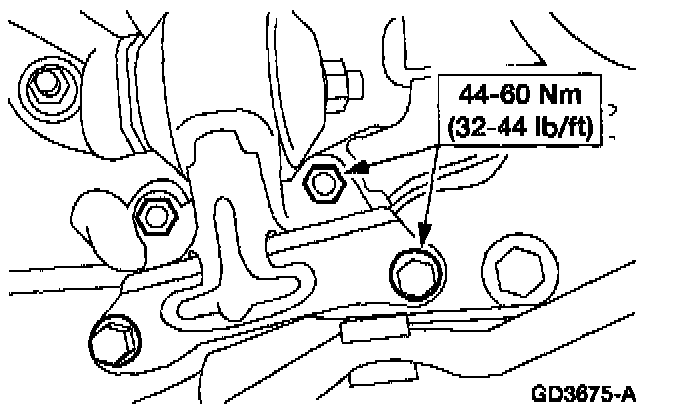

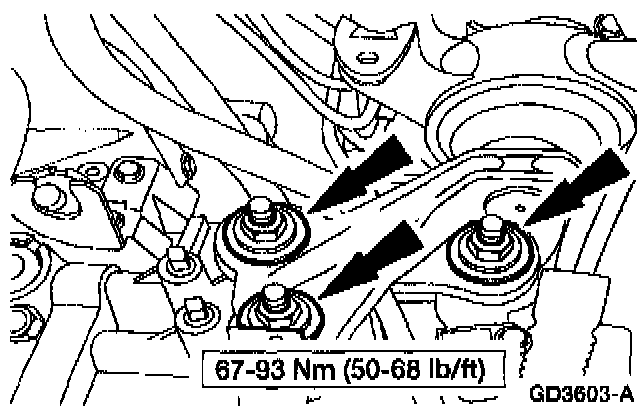

1. To install, reverse the removal procedure.
