Knob

REMOVAL

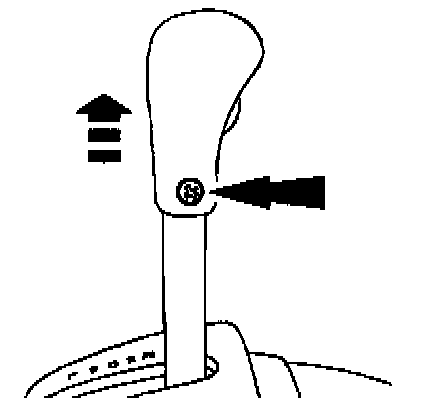

1. Remove the front screw.
^ Position the gearshift lever to gain access.





2. Remove the RH side screw and the gearshift knob.

INSTALLATION





1. To install, reverse the removal procedure.

NOTE: Use Threadlock and Sealer EOAZ-19554-AA meeting Ford specification WSK-M2G315-A5 (Type II) when installing the gearshift lever knob screws.
