Shifter A/T: Adjustments

1. Place the gearshift lever in the PARK position.

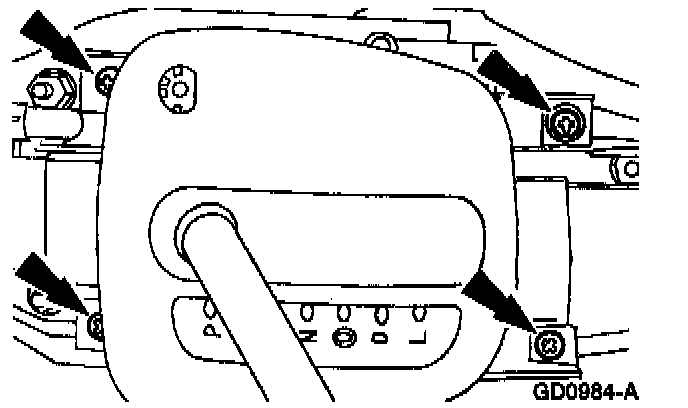

2. Loosen the transmission control selector dial bezel screws.

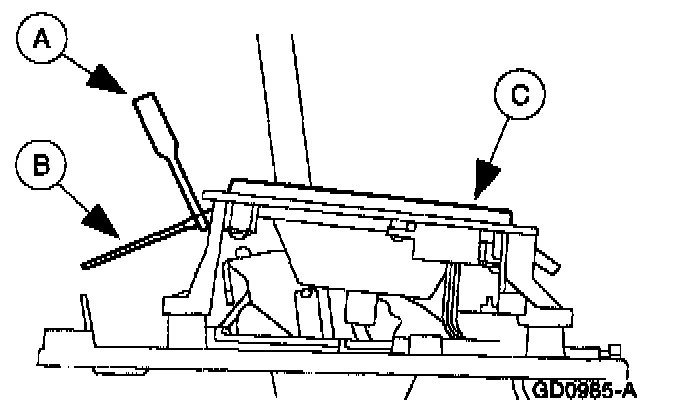

3. Place a (A) stiff wire in the (B) slider panel and position the pointer on the (B) slider panel to align with the PARK position on the (C) transmission control selector dial bezel.

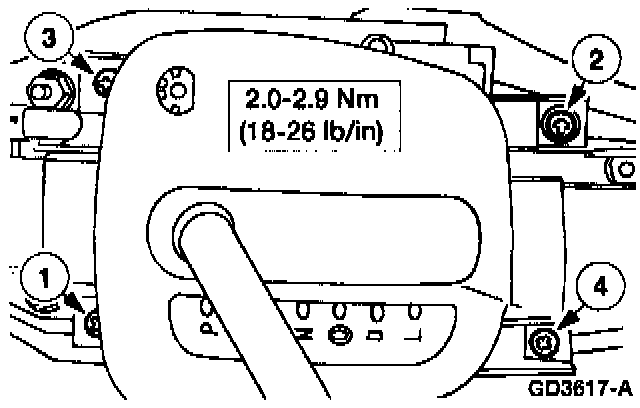

4. Tighten the transmission control selector dial bezel screws in the sequence shown.
