Front

REMOVAL
1. Remove the front wheel knuckle.





2. Remove and discard the inner wheel bearing oil seal.

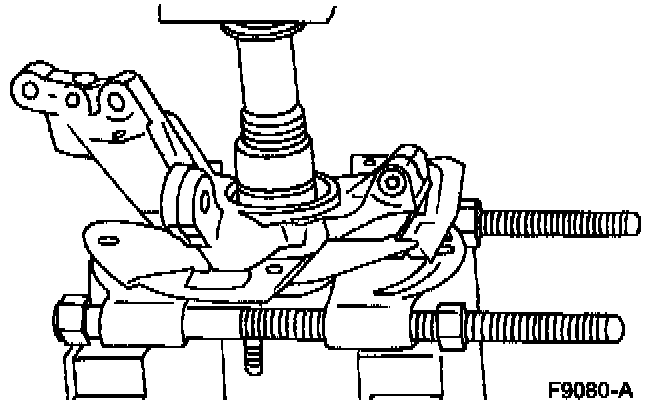

3. Use Bearing Pulling Attachment D84L-1123-A to press the wheel hub out of the front wheel knuckle.

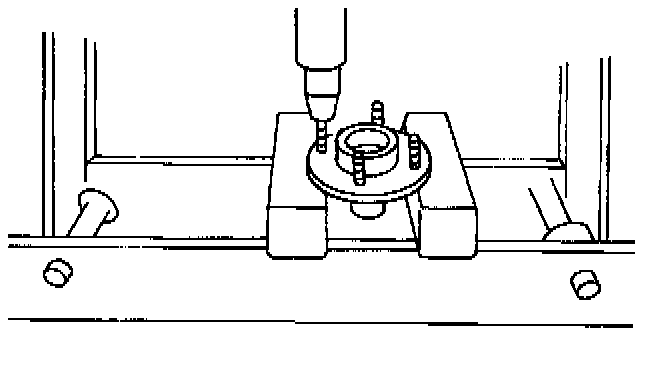

4. Press out and discard the wheel lug bolts.

CAUTION: Do not reuse the wheel lug bolts if removed.

INSTALLATION
1. To install, reverse the removal procedure.

NOTE: Always install a new inner wheel bearing oil seal on the back (inboard) side of the front wheel Knuckle.
