Home >> Mercury >> 1998 >> Tracer L4-122 2.0L SOHC >> Repair and Diagnosis >> Steering and Suspension >> Suspension >> Testing and Inspection >> Pinpoint Tests >> G: Vibration

G: Vibration

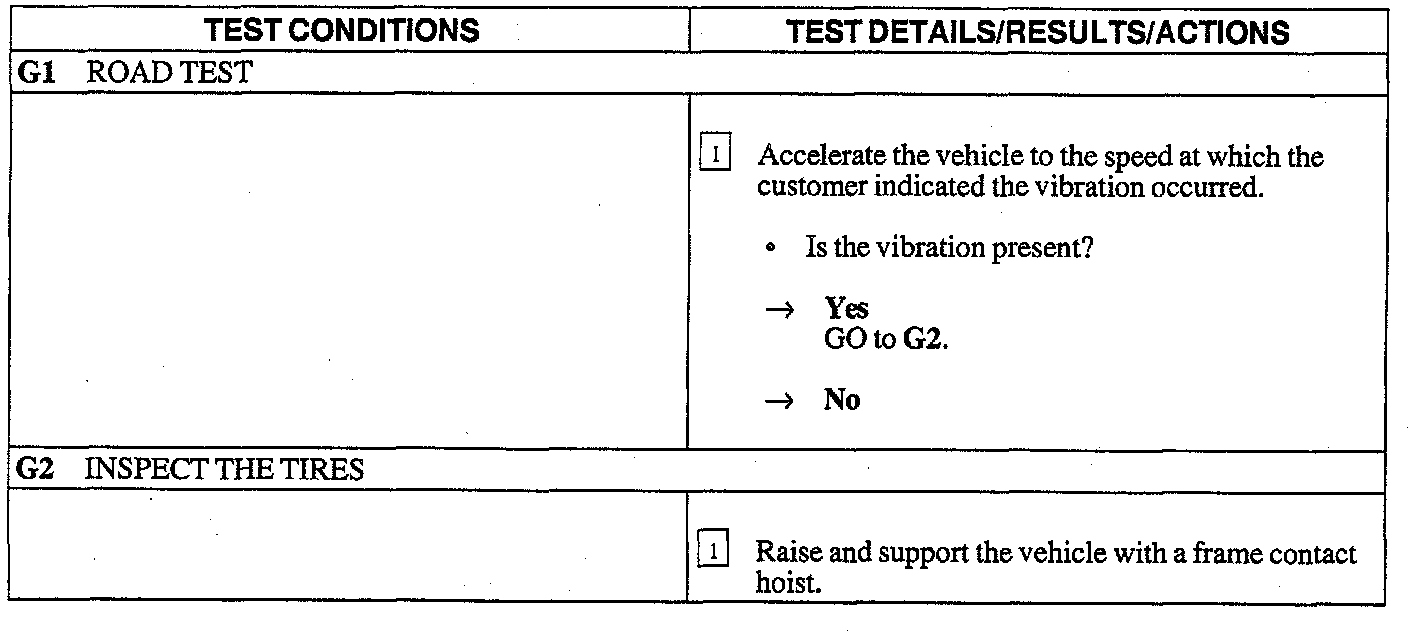

Test G1 - G2:

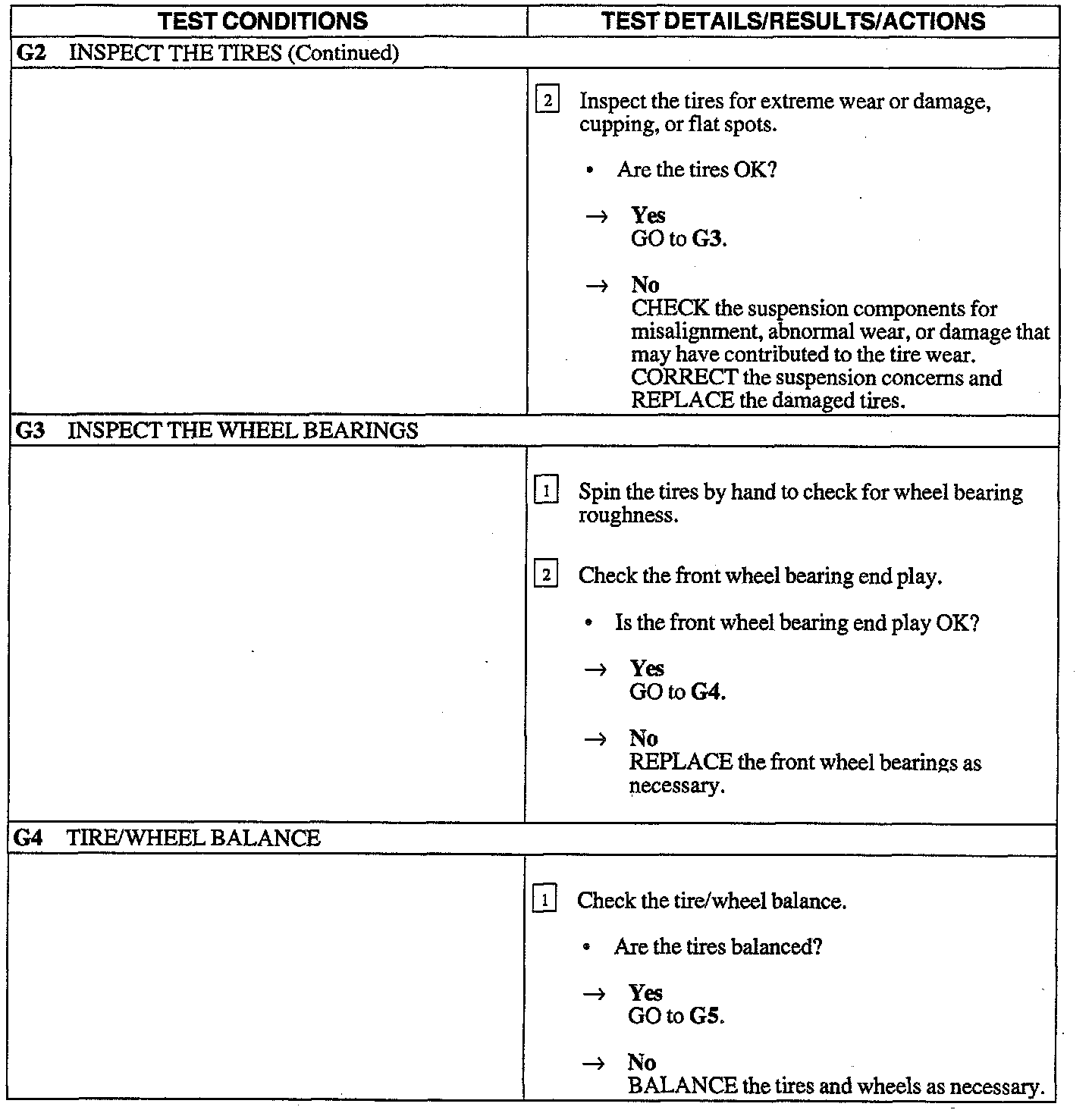

Test G2 - G4:

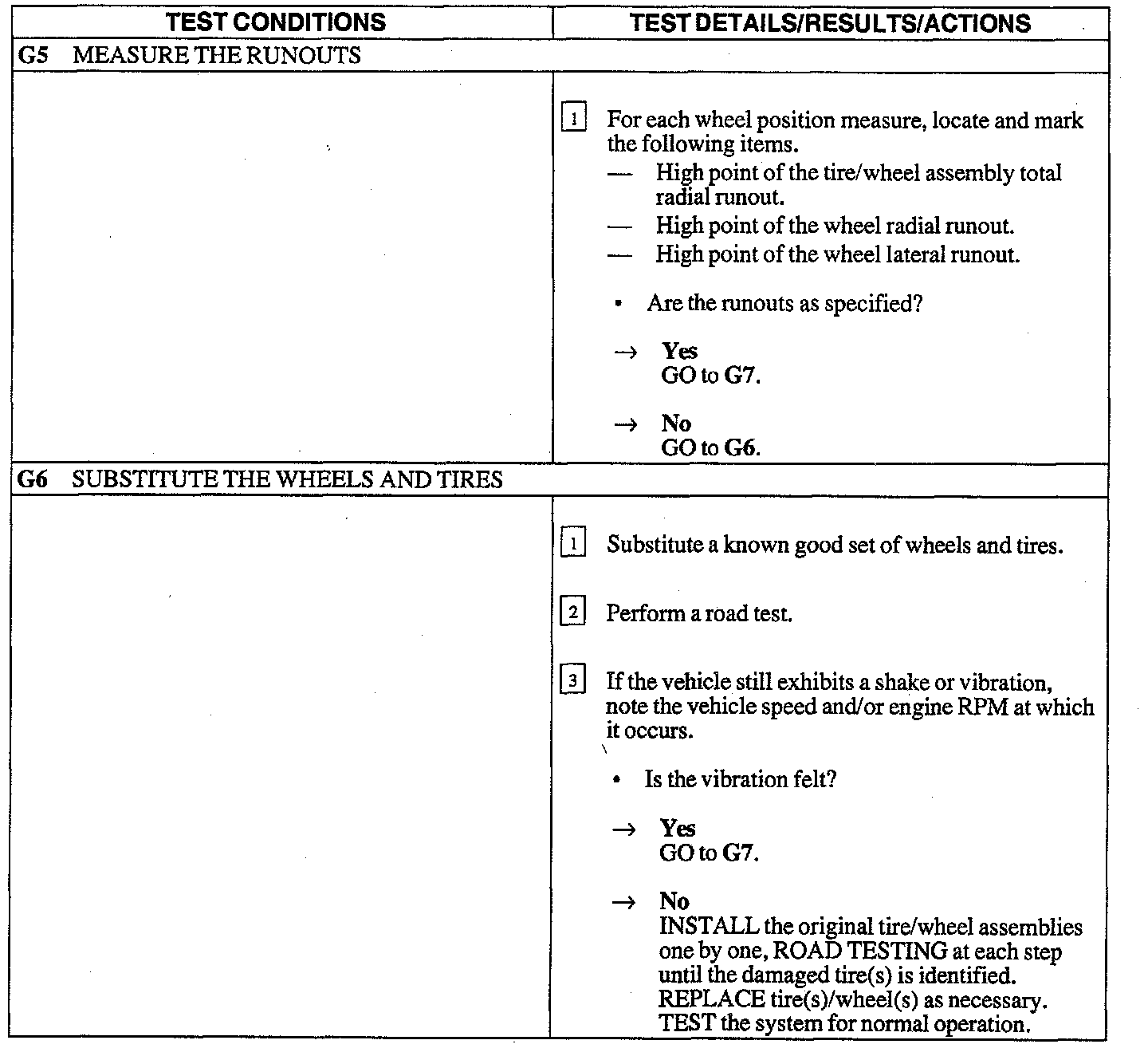

Test G5 - G6:

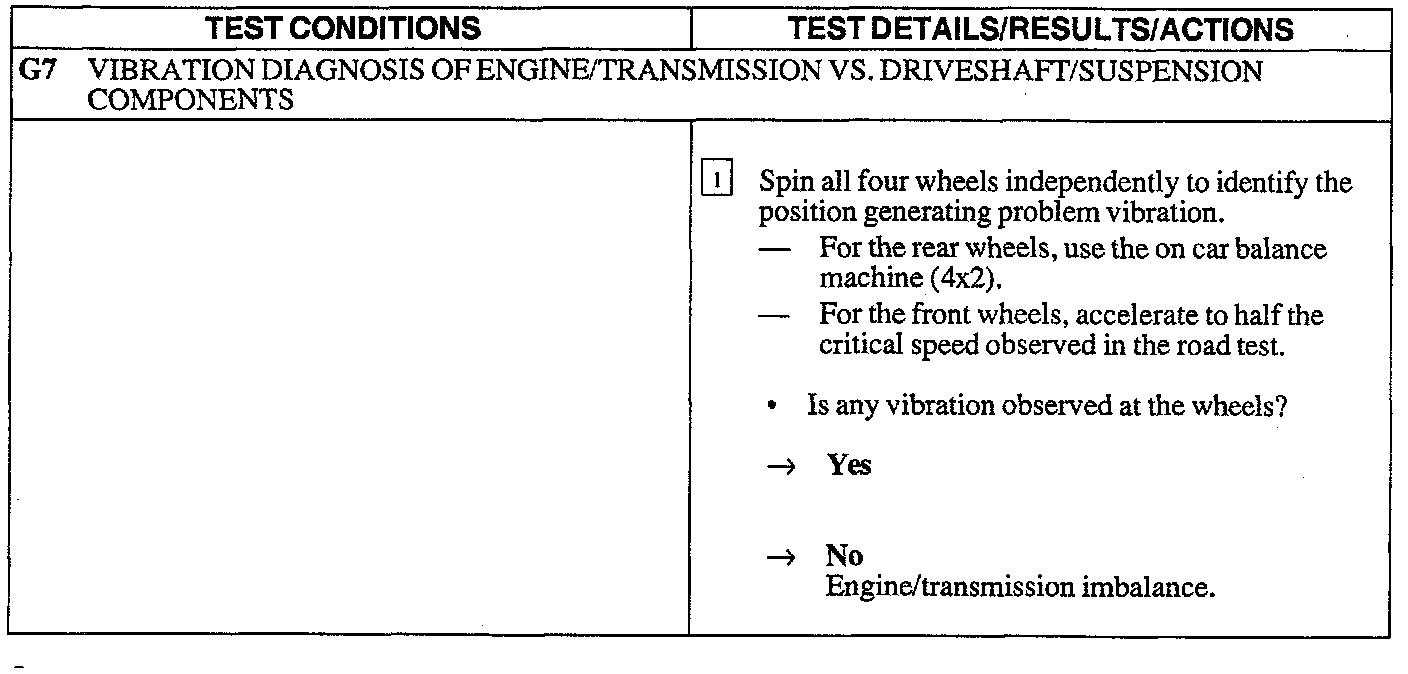

Test G7:
