Removal and Installation

REMOVAL
1. Remove the package tray trim panel.





2. Remove the upper strut and spring assembly nuts.
3. Raise and support the vehicle.

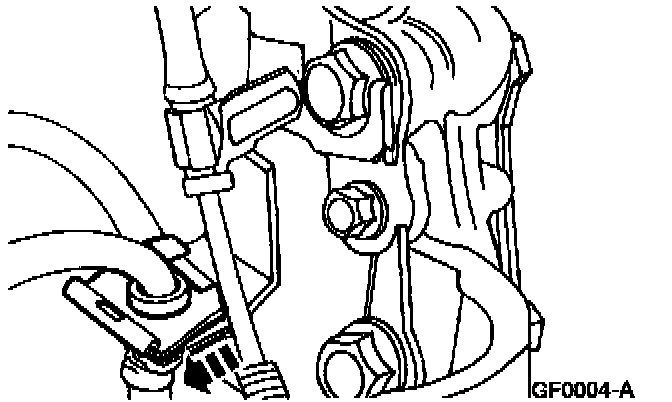

4. Slide the brake hose clip off and position the brake hose aside.





5. If equipped with anti-lock brakes, remove the anti-lock brake system (ABS) sensor bracket bolt.





6. Remove the lower strut and spring assembly nuts and bolts and the strut and spring assembly.

INSTALLATION











1. To install, reverse the removal procedure.
