Control Arm Bushing: Service and Repair

REMOVAL
1. Remove the front suspension lower arm.





2. Remove the nut and the front suspension lower arm mounting bolt bushing (rear) and washer.

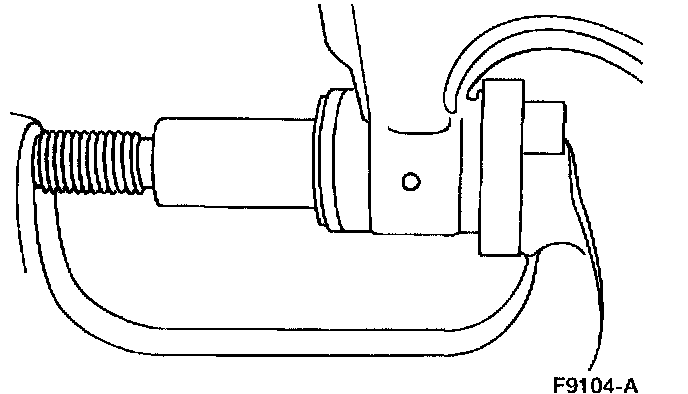

3. Use Lower Control Arm Bushing Tool T81P-5493-B and C-Frame and Clamp Assembly T74P-3044-A1 to remove the front suspension lower arm mounting bolt bushing (front).





INSTALLATION
1. To install, reverse the removal procedure.
