Power Steering Pump Pulley

REMOVAL





1. Disconnect the battery ground cable.
2. Remove the power steering pump reservoir.

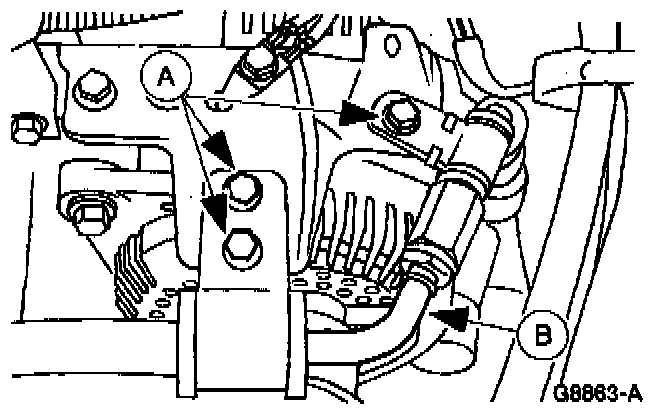

3. Remove the (A) three bolts and position the (B) power steering pressure hose aside.

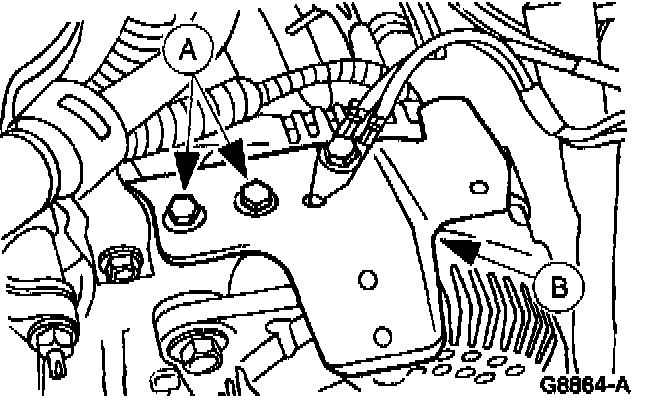

4. Remove the (A) two bolts and position the (B) power steering pressure hose support bracket aside.

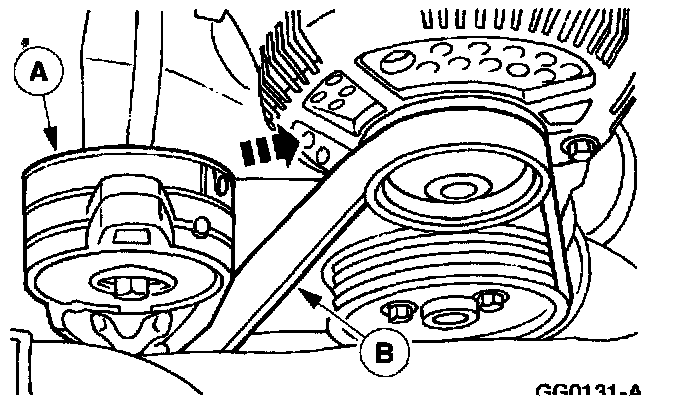

5. Rotate the (A) drive belt tensioner to release the tension and remove the (B) drive belt.

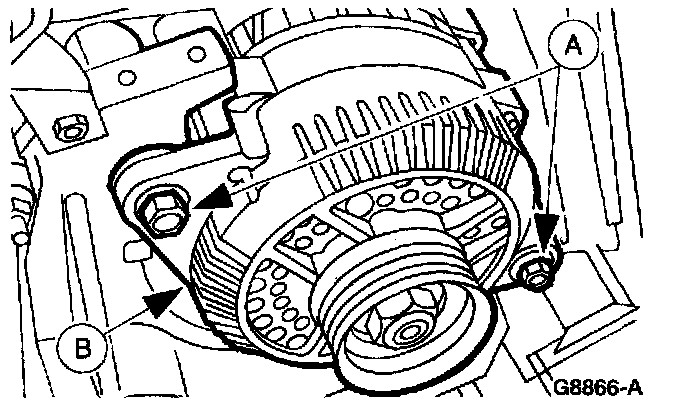

6. Remove the (A) two generator bolts and position the (B) generator (GEN) aside.

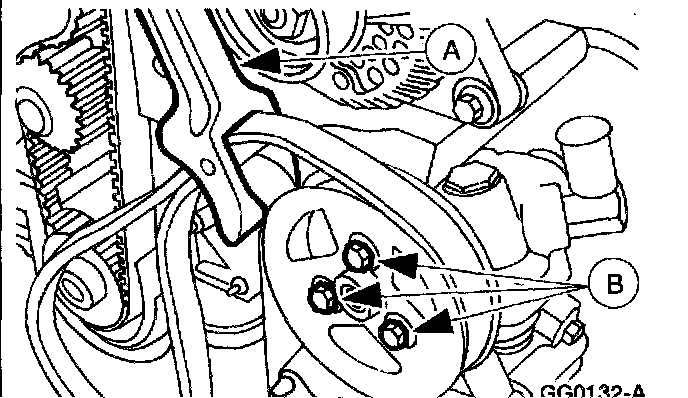

7. Use (A) Strap Wrench D85L-6000-A or equivalent to remove the (B) three pulley bolts.
8. Remove the power steering pump pulley.

INSTALLATION

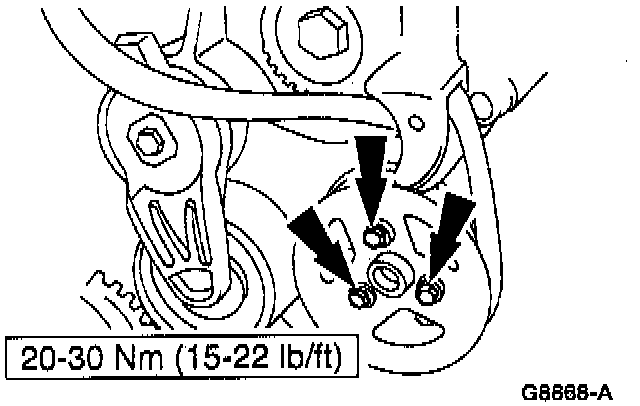

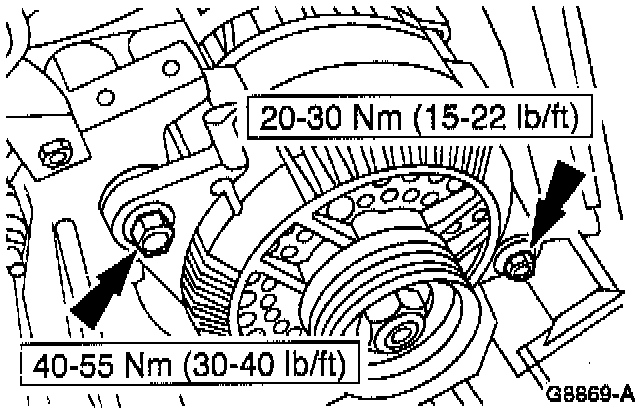

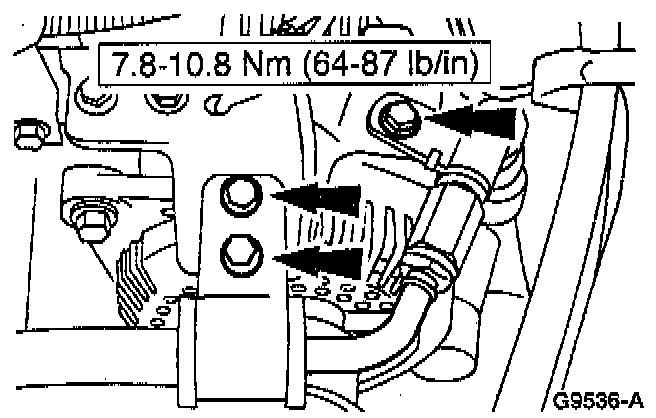

1. To install, reverse the removal procedure.

NOTE: When the battery is disconnected and reconnected, some abnormal drive symptoms may occur while the vehicle relearns its adaptive strategy. The vehicle may need to be driven 16 km (10 mile) or more to relearn the strategy.
