Alternator Brush: Service and Repair

REMOVAL
1. Remove the Generator (GEN).

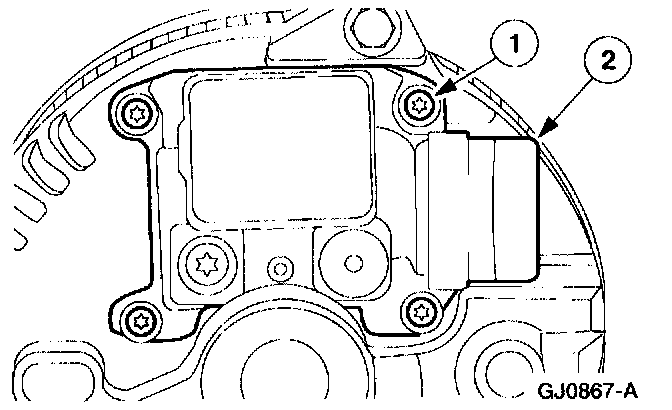

2. Remove the generator brush terminal holder and voltage regulator assembly.
1. Remove the screws.
2. Remove the assembly.

INSTALLATION

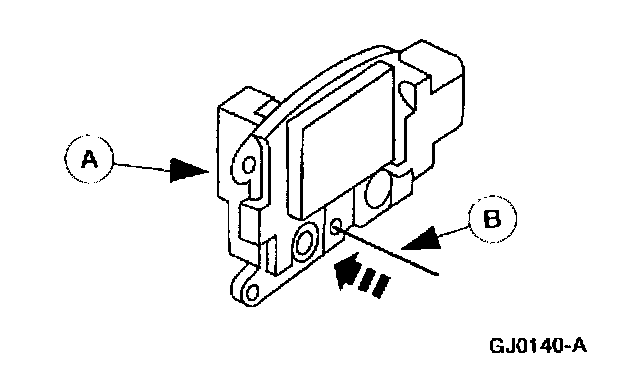

1. Depress the (A) brushes and insert the (B) wire to hold the brushes during installation.

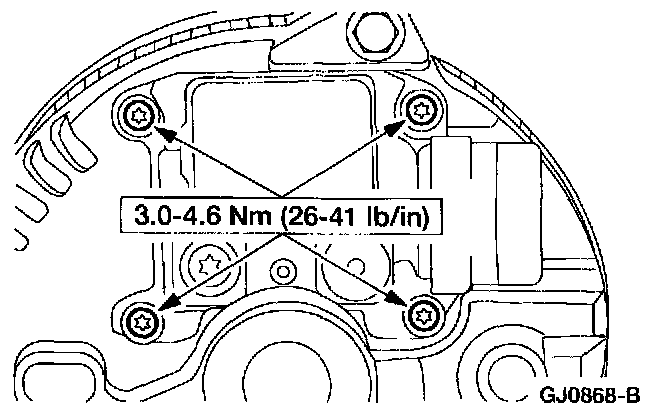

2. Install the Voltage Regulator (VR) screws and remove the wire.
3. Install the generator.
