Home >> Mercury >> 1998 >> Tracer L4-122 2.0L SOHC >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Automatic Transmission/Transaxle >> System Specifications >> A/T Torque Data

A/T Torque Data

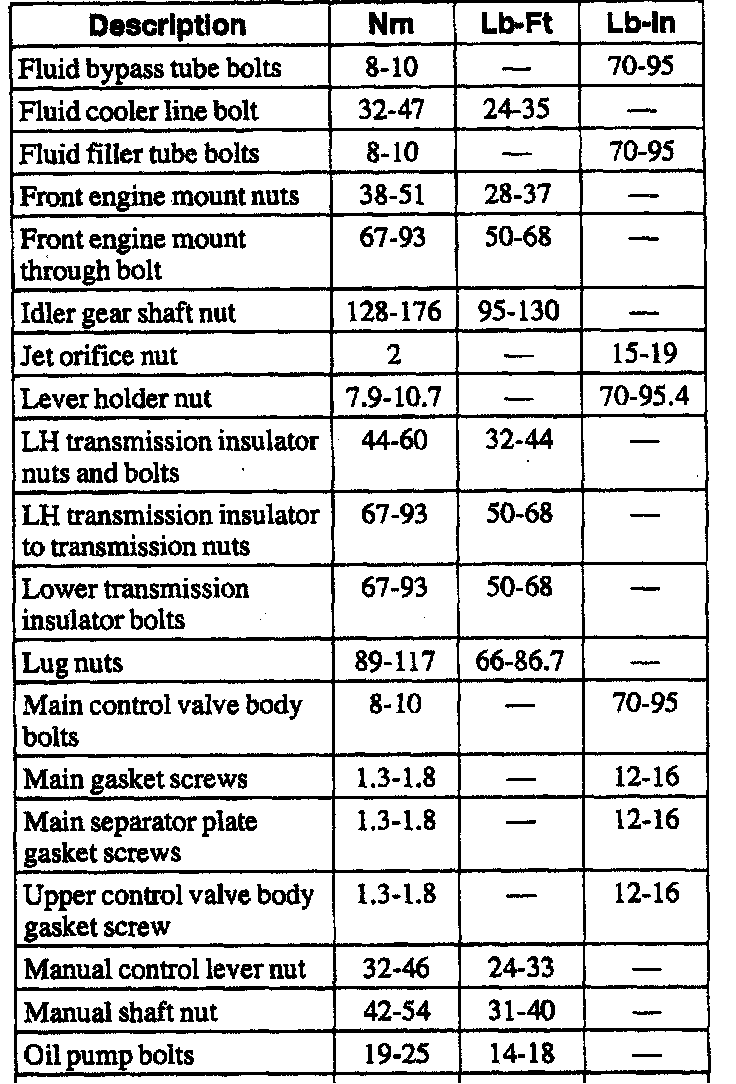

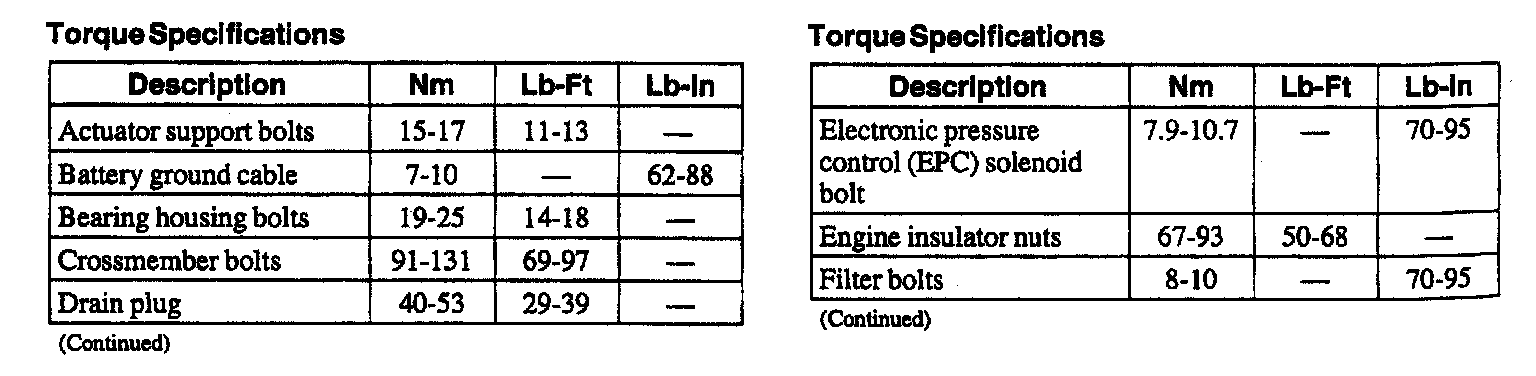

F4E III 4-spd A/T, Transaxle Torque (Escort/Tracer):

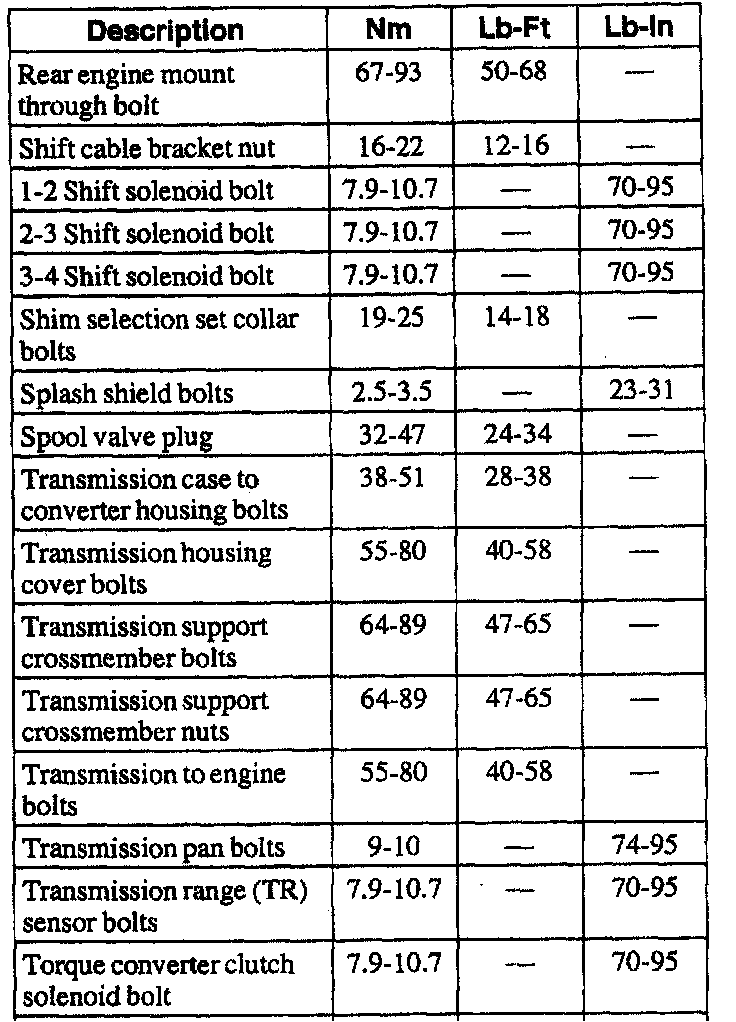

F4E III 4-spd A/T, Transaxle Torque Cont. (Escort/Tracer):





F4E III 4-spd A/T, Transaxle Cont. (Escort/Tracer):
