Inertia Fuel Shutoff Switch: Service and Repair

REMOVAL

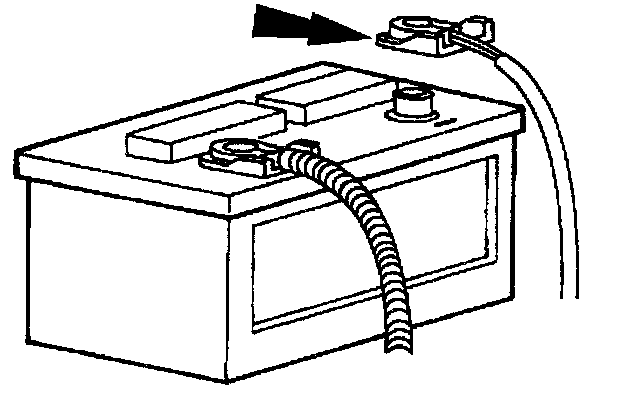

1. Disconnect the battery ground cable.

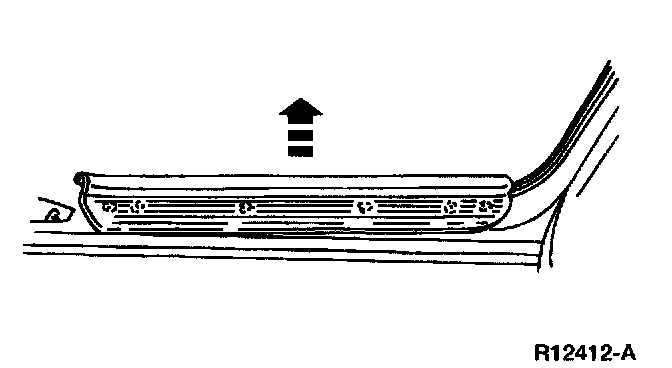

2. Remove the LH front door scuff plate by pulling upward.

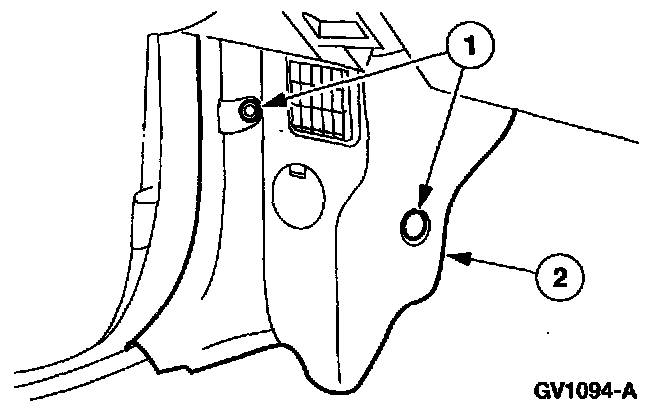

3. Remove the cowl side trim panel.
1. Remove the pushpins.
2. Remove the cowl side trim panel.

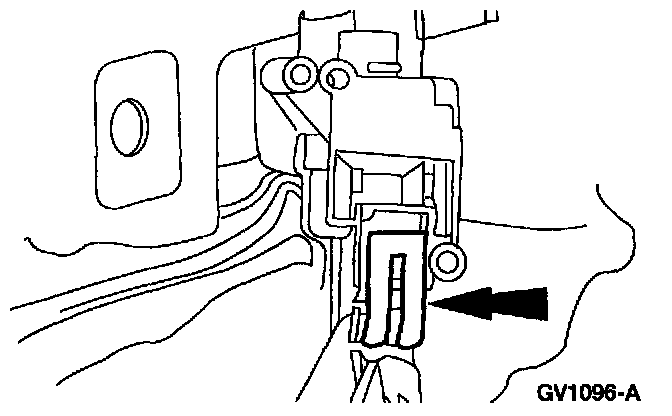

4. Remove the IFS switch retaining screws.

NOTE: Position the carpet aside to gain access to the Inertia Fuel Shutoff (IFS) switch.








5. Disconnect the IFS switch electrical connector.

INSTALLATION
1. To install, reverse the removal procedure.

NOTE: When the battery is disconnected and reconnected, some abnormal drive symptoms may occur while the vehicle relearns its adaptive strategy. The vehicle may need to be driven 16 km (10 mi) or more to relearn the strategy.
