Switch - Windshield Wiper/Washer

1. Key OFF.
2. Disconnect the windshield wiper/washer switch connector.

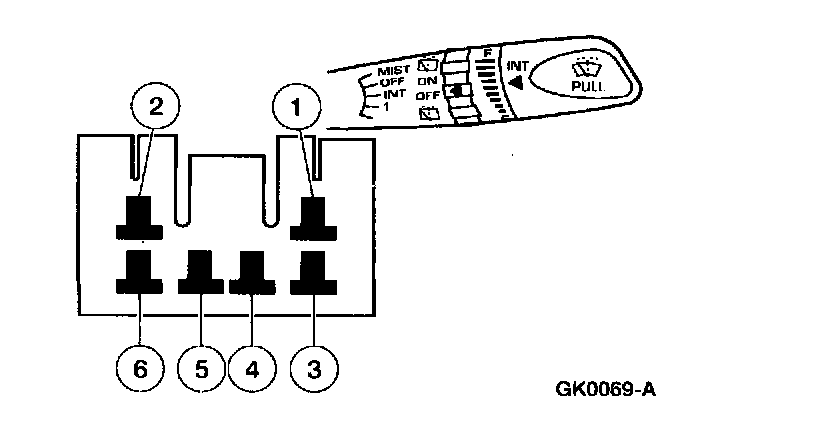

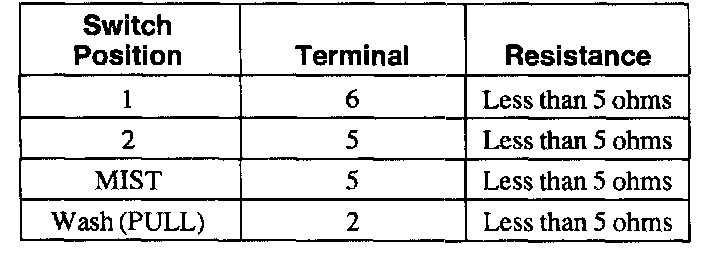

3. Measure the resistance between terminal 3 and the terminals shown of the windshield wiper/washer switch.







4. If the windshield wiper/washer switch fails any of these tests, replace it. Otherwise, return to the pinpoint tests.
