Multi-Function Switch
Multi-Function Switch

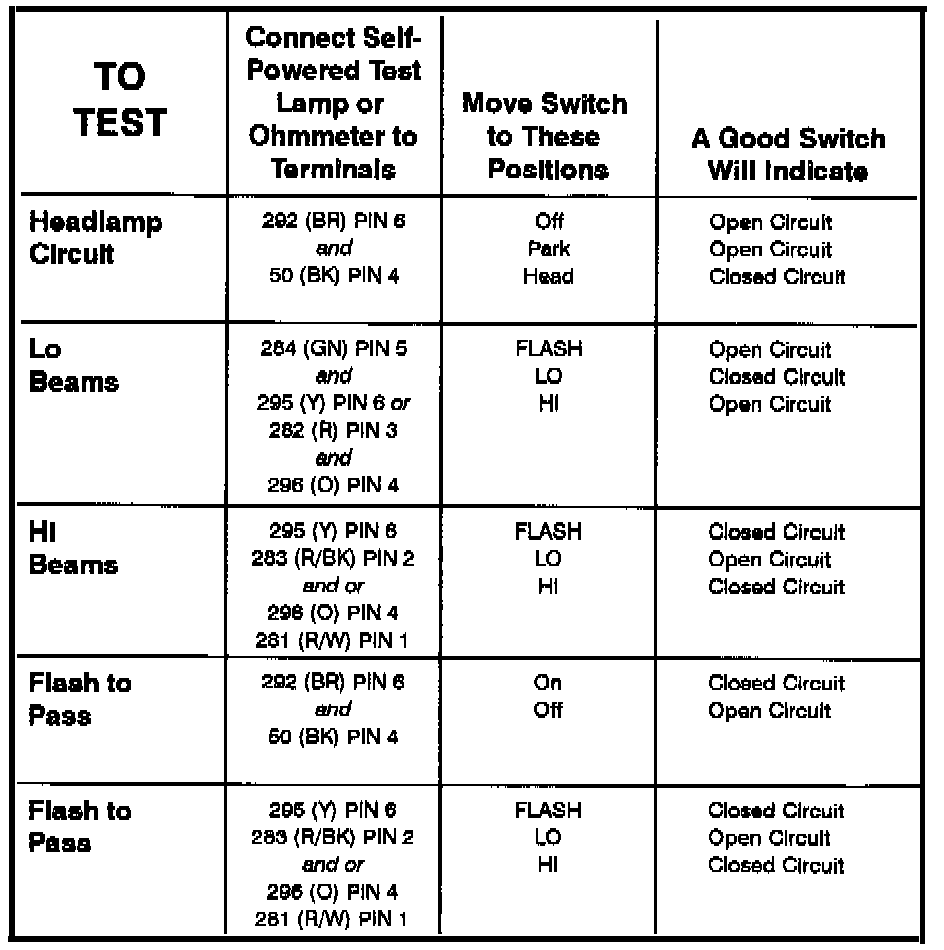

Multi-Function Switch - Component Testing Procedure (Part 1 Of 2):
Multi-Function Switch - Terminal Locations:
Multi-Function Switch - Schematic:
