A/C Cycling Switch

REMOVAL

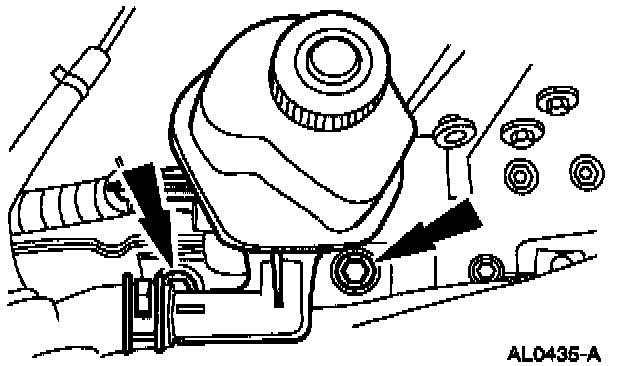

1. Remove the screws and reposition the power steering pump reservoir.

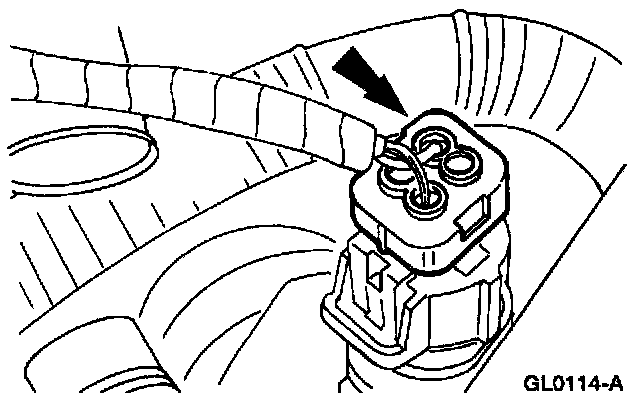

2. Disconnect the A/C cycling switch electrical connector.

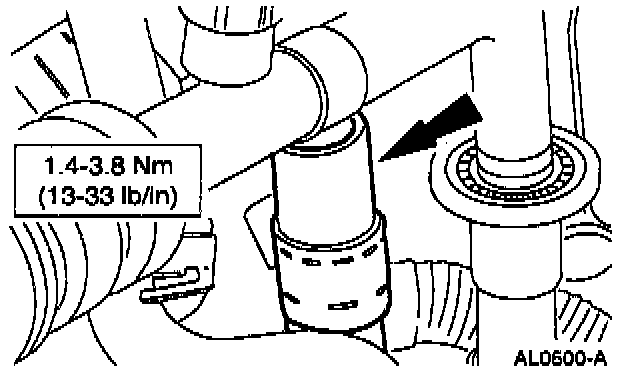

3. Remove the A/C cycling switch from the top of the suction accumulator/drier.

INSTALLATION







1. Follow the removal procedure in reverse order.
- Lubricate the O-ring seal with PAG Compressor Oil Motorcraft YN-12b F2AZ-19577-AC or equivalent meeting Ford specification WSH-M1C231-B.
