Blower Motor Switch: Service and Repair

REMOVAL
1. Remove the Control Assembly.

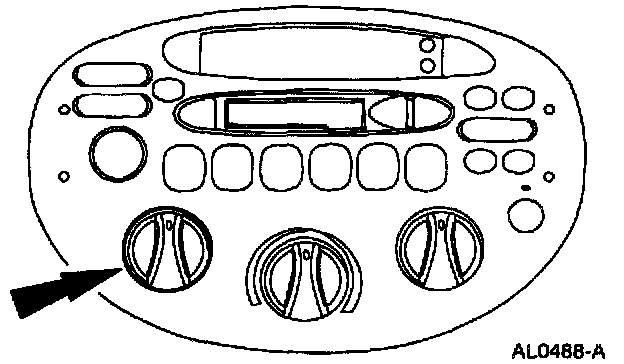

2. Remove the blower motor selector knob.

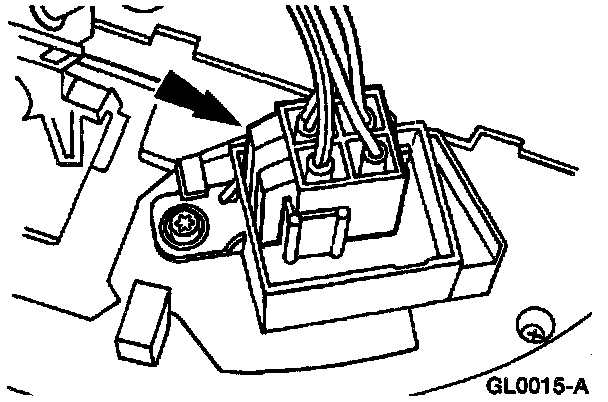

3. Disconnect the heater blower motor switch electrical connector.

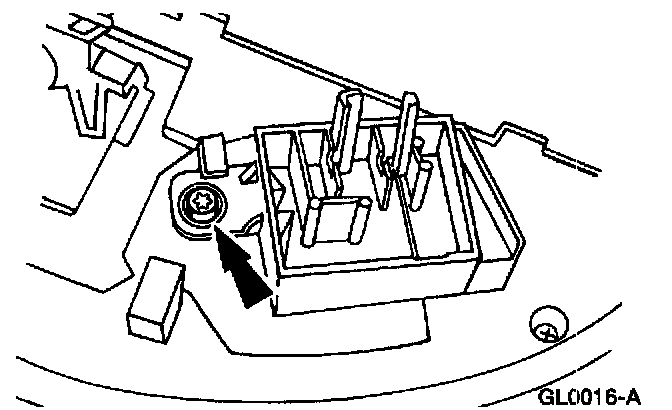

4. Remove the screw and the heater blower motor switch.

INSTALLATION
1. Follow the removal procedure in reverse order.
