Power Mirror Switch
>>
Testing and Inspection
>>
Open/Closed Circuit Tests
Open/Closed Circuit Tests

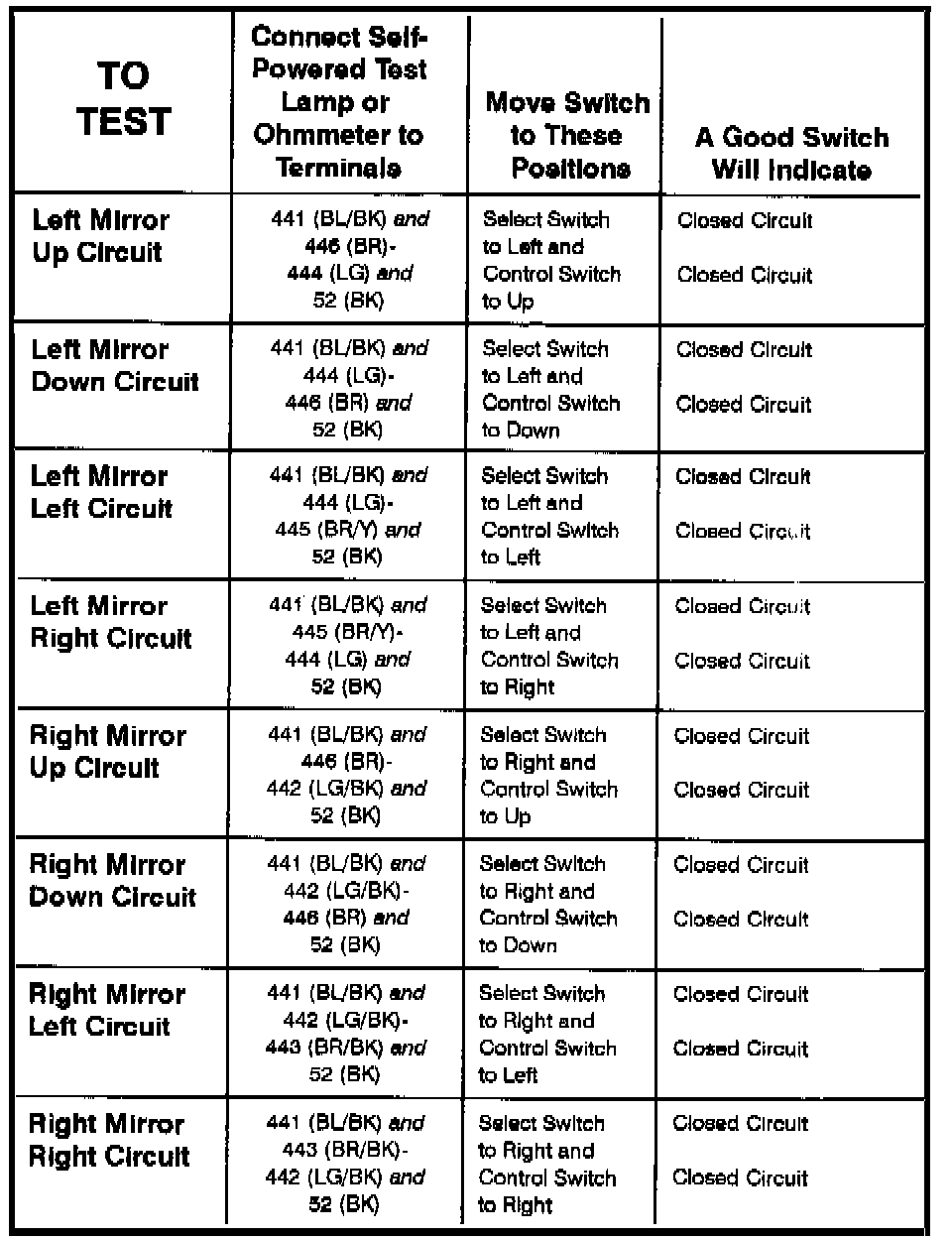

Power Mirror Switch - Component Testing Procedure:

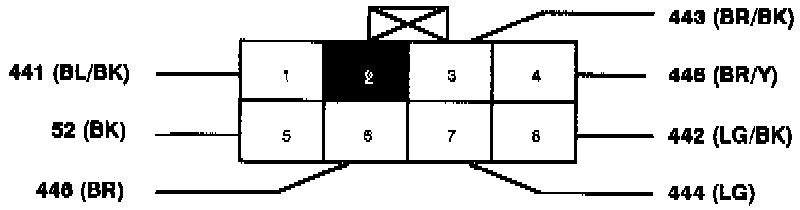

Power Mirror Switch - Terminal Locations:
Power Mirror Switch - Schematic:
