Sedan

REMOVAL

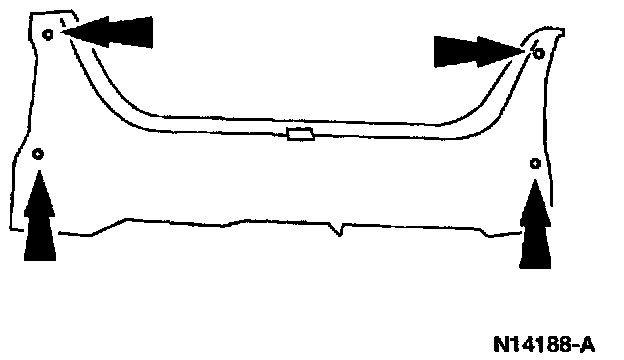

1. Remove the luggage compartment rear cover.

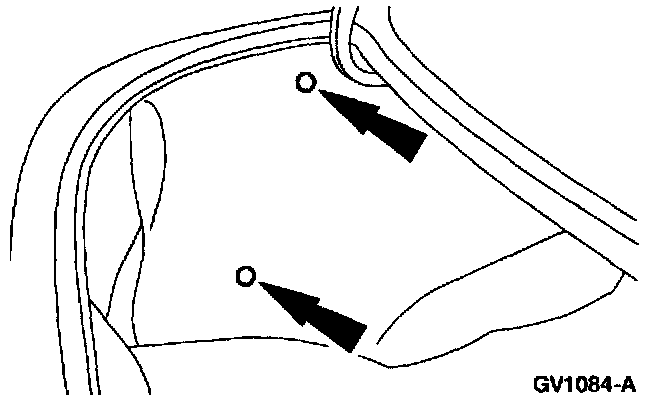

2. Remove the pushpins and position the LH luggage compartment side trim aside.

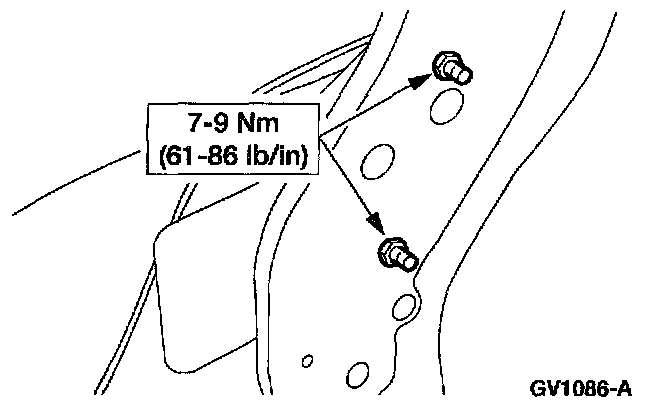

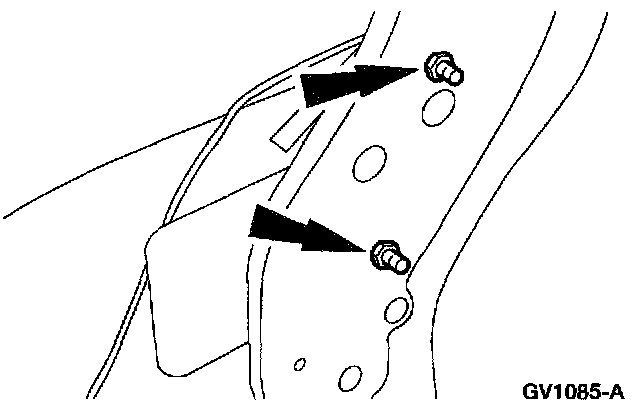

3. Remove the Fuel Pump Driver Module (FPDM) retaining nuts.

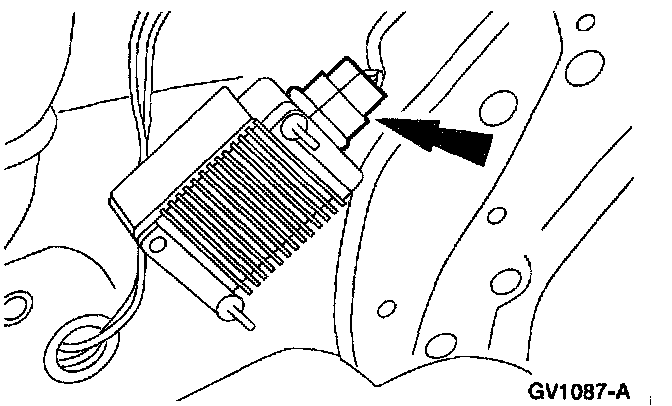

4. Disconnect the FPDM electrical connector.







INSTALLATION
1. To install, reverse the removal procedure.
