A: Shift Solenoids

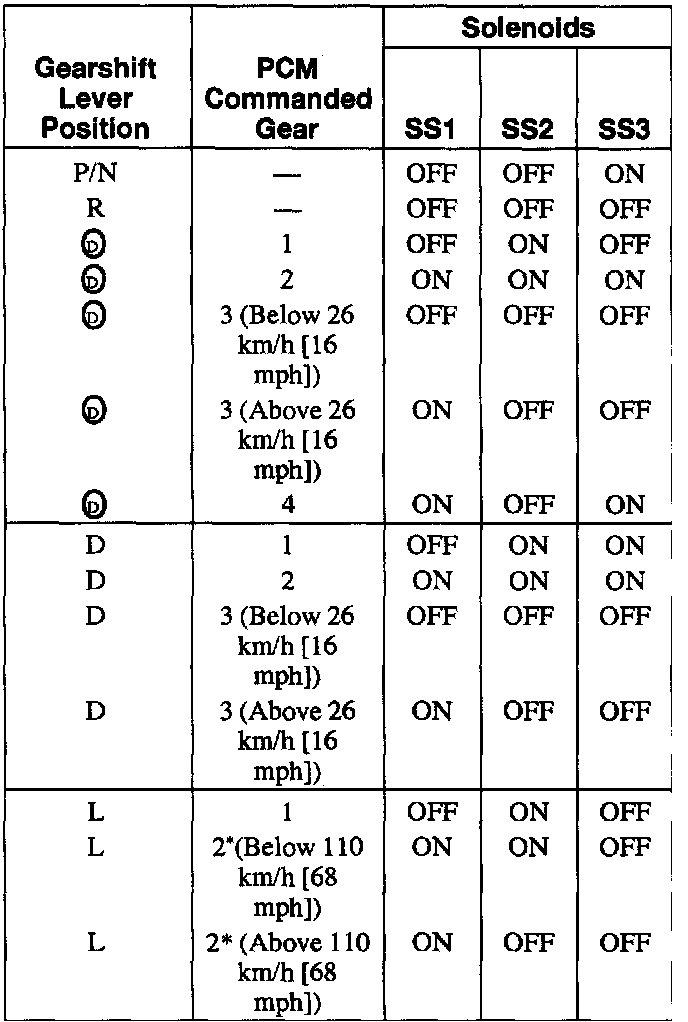

Solenoid Operation Chart:

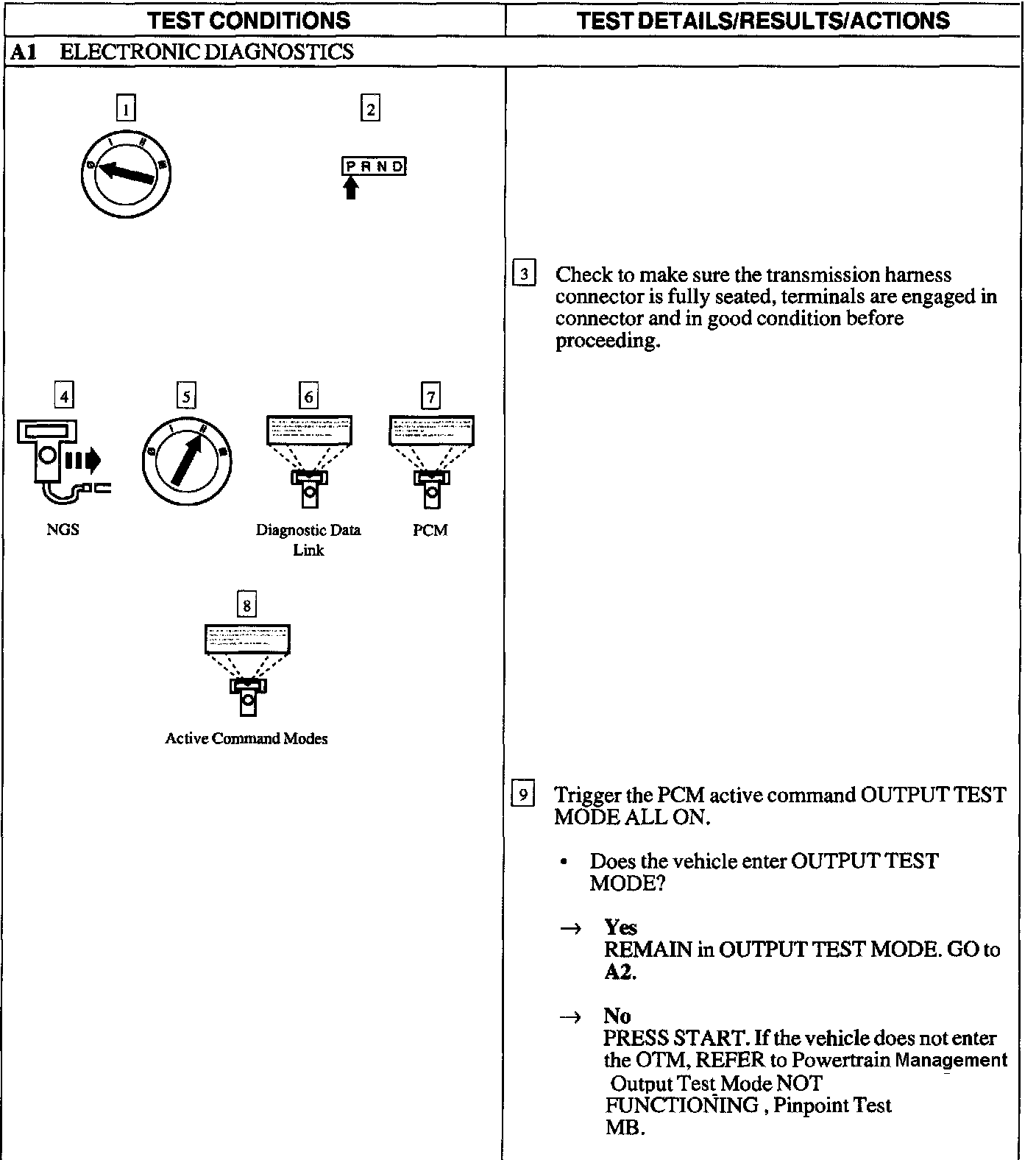

Test A1:

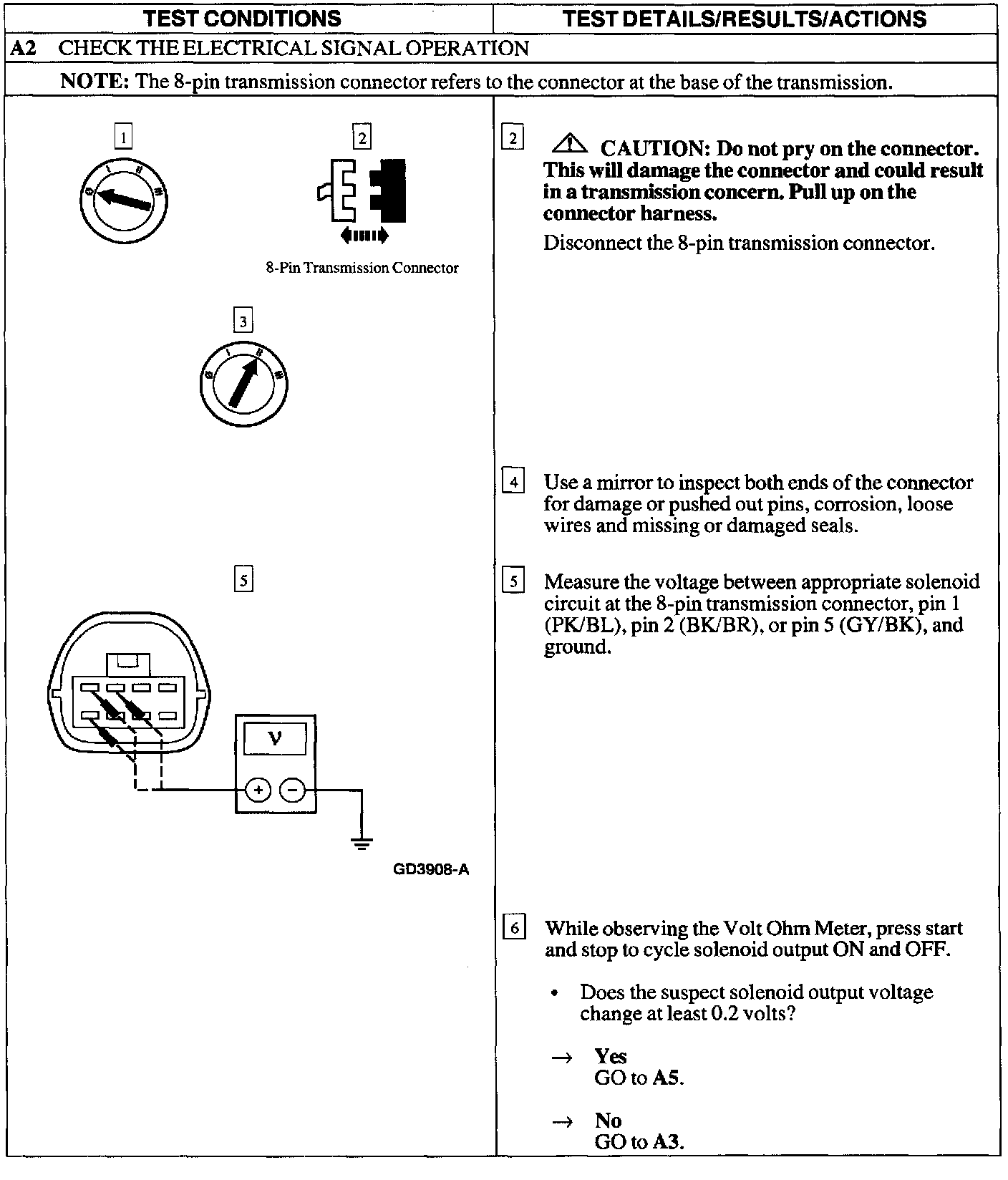

Test A2:

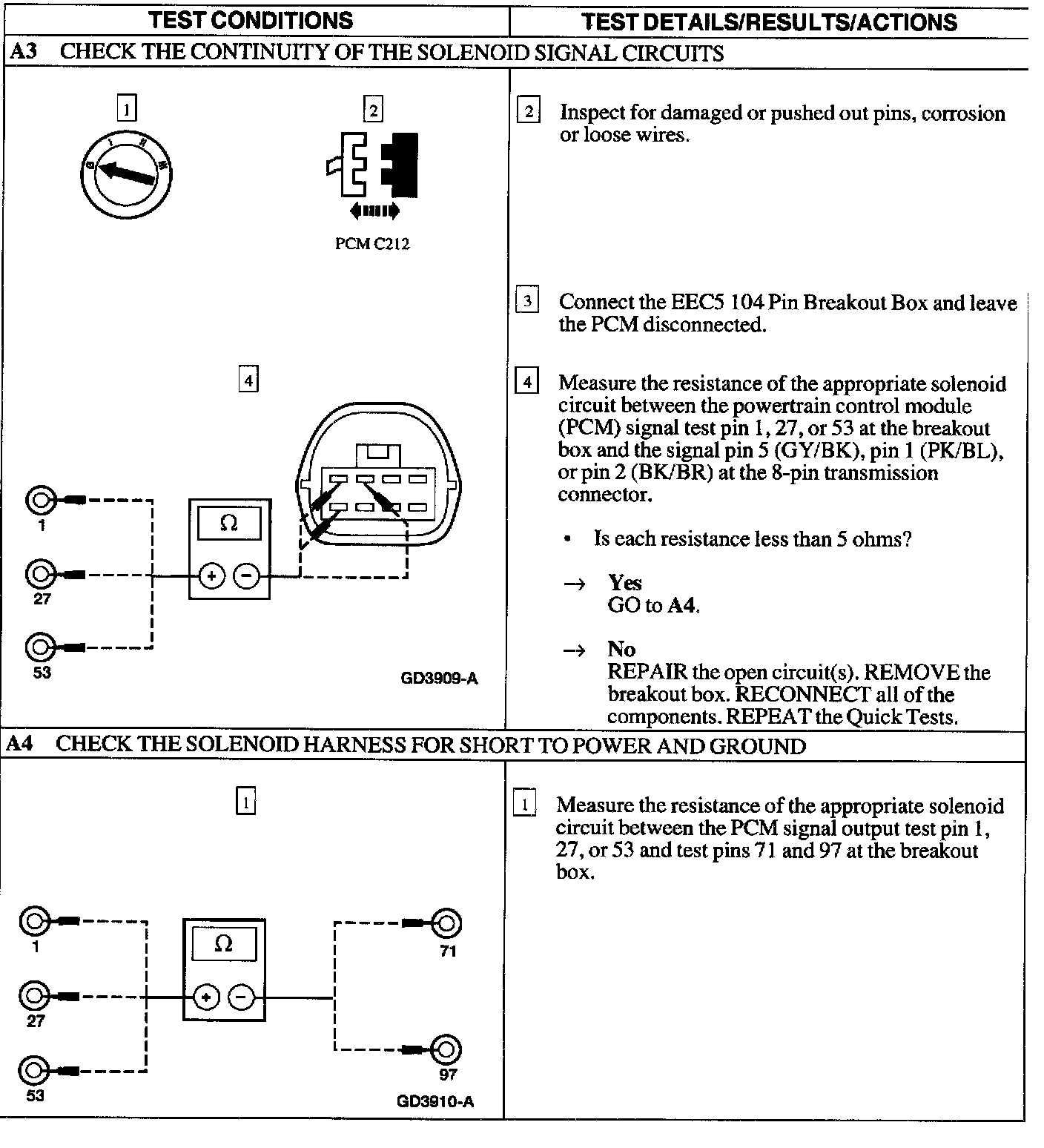

Test A3 - A4:

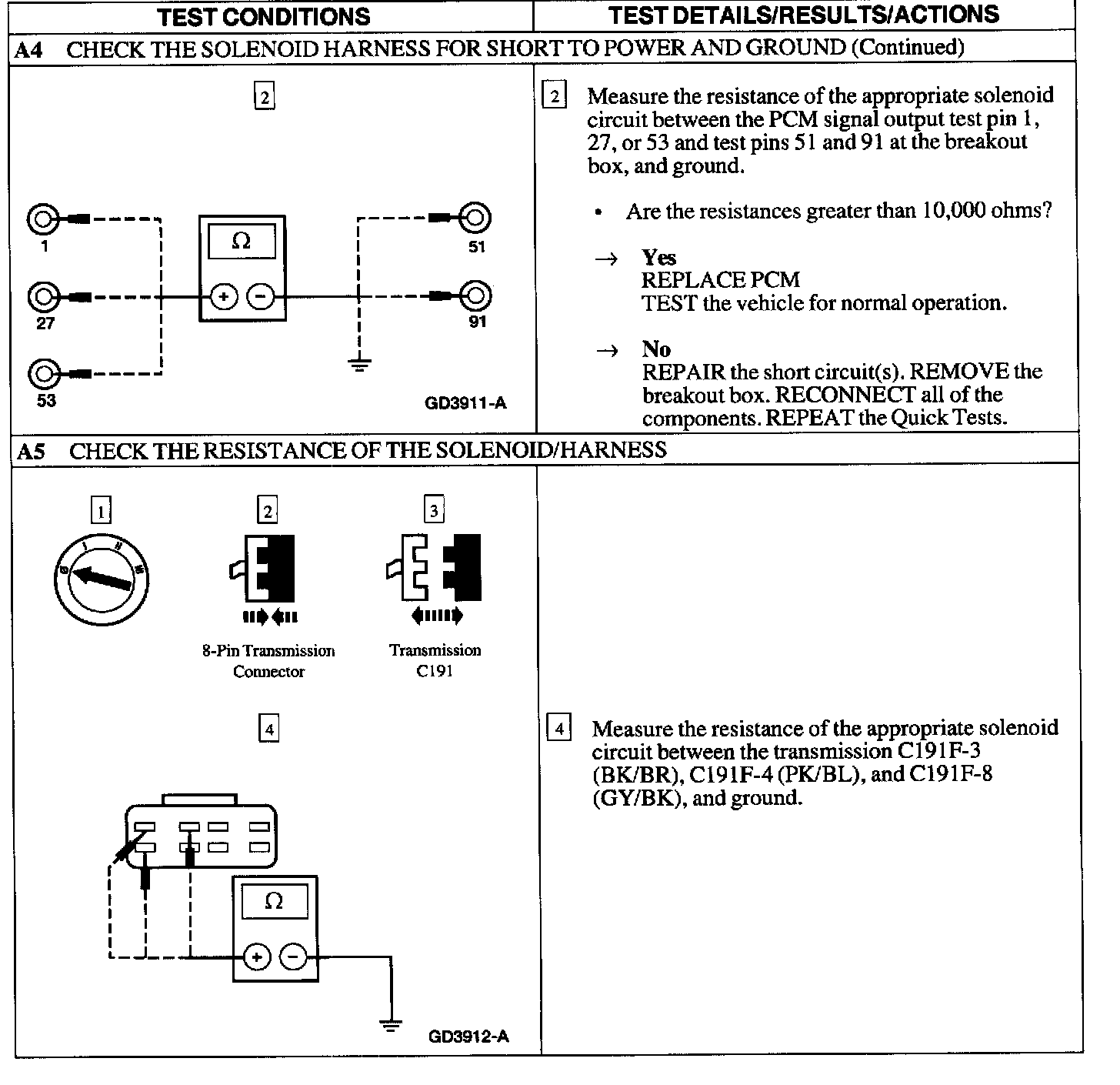

Test A4 - A5:

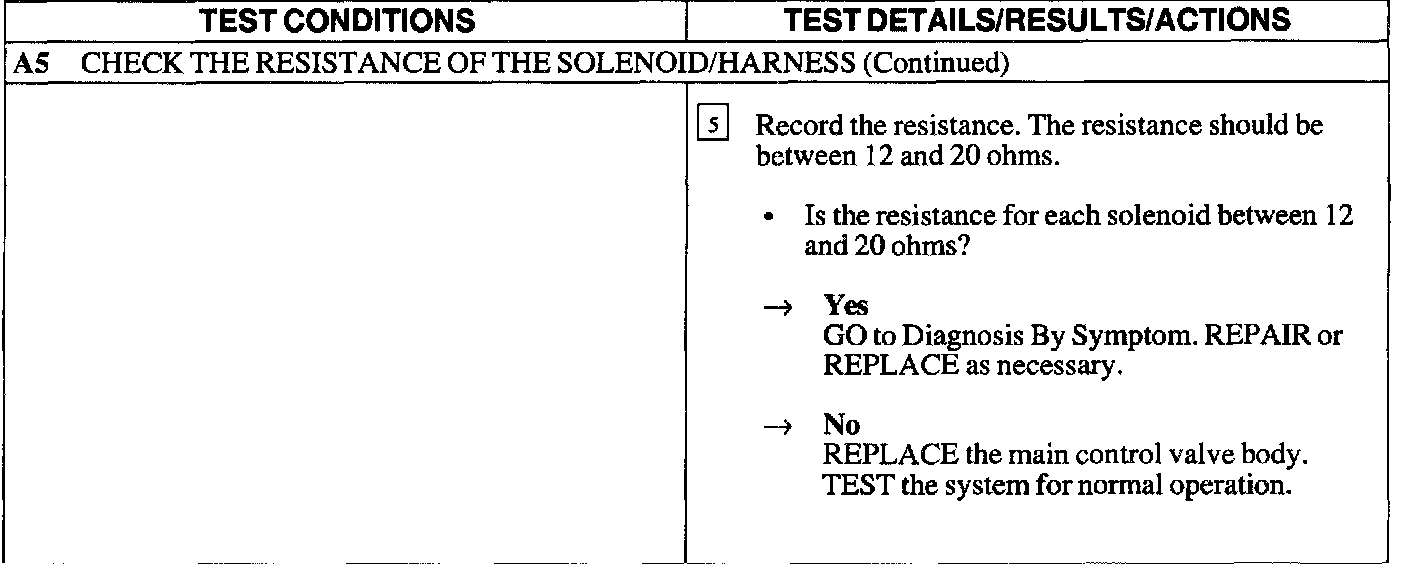

Test A5:

Diagnostic Trouble Code (DTC) List:
P0781, PO782, PO783, P1731, P1732, P1733 - Shift errors.
P0750, P0755, P0760 - Solenoid circuit failures.
P0751, P1751 - Shift solenoid number 1 malfunction.
P0756, P1756 - Shift solenoid number 2 malfunction.
P0761, P1761 - Shift solenoid number 3 malfunction.

This pinpoint test is intended to diagnose the shift solenoids electrical system only. To prevent replacement of good components, be aware that the following areas may be at fault:
- Engine.
- Performance, cooling, brakes.
- Electrical.
- Battery, input sensors, wiring harnesses.
- Transmission.
- Internal transmission components, linkages, cooling.

This pinpoint test is intended to diagnose the following components:
- Transmission wiring harness, SS1, SS2, SS3.
- Powertrain control module.
