Wagon

REMOVAL

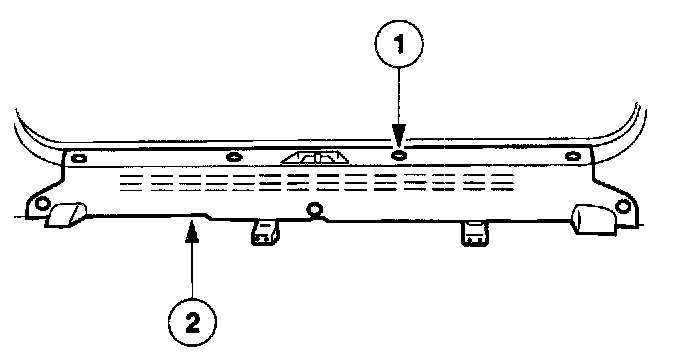

1. Remove the luggage compartment rear cover.
1. Remove the pushpins.
2. Remove the luggage compartment rear cover.







2. Place the LH rear seat back in the down position.

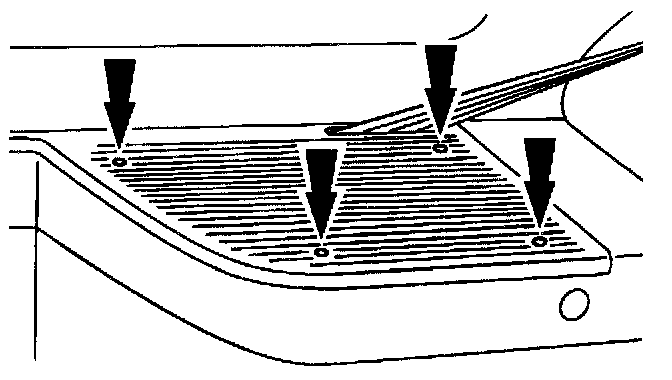

3. Remove the LH rear speaker grille screws.

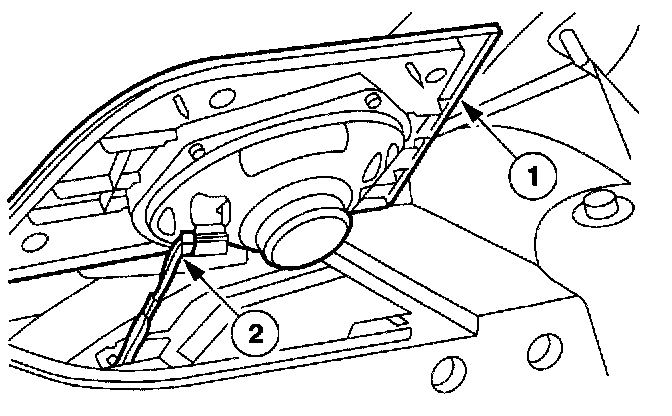

4. Remove the speaker and grille.
1. Lift up the speaker grille.
2. Disconnect the radio speaker wiring.

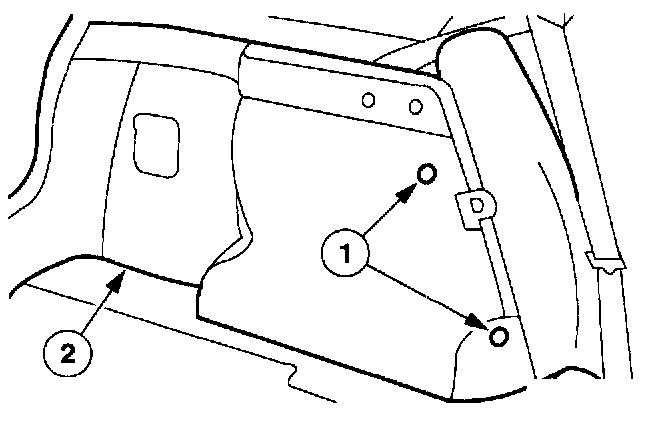

5. Position the LH quarter trim panel aside.
1. Remove the pushpins.
2. Position the LH quarter trim panel aside.

NOTE: Position the luggage compartment carpet aside.

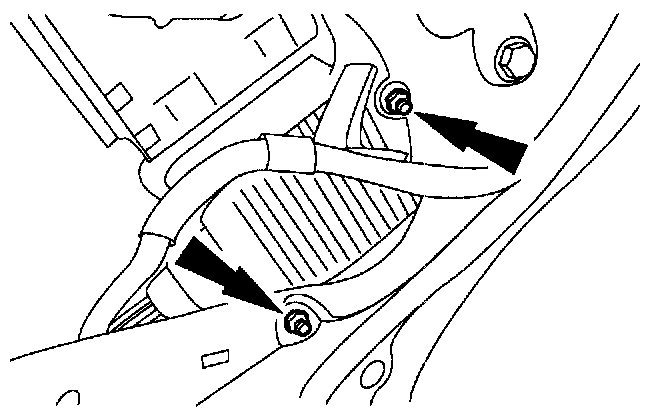

6. Remove the Fuel Pump Driver Module (FPDM) retaining nuts.

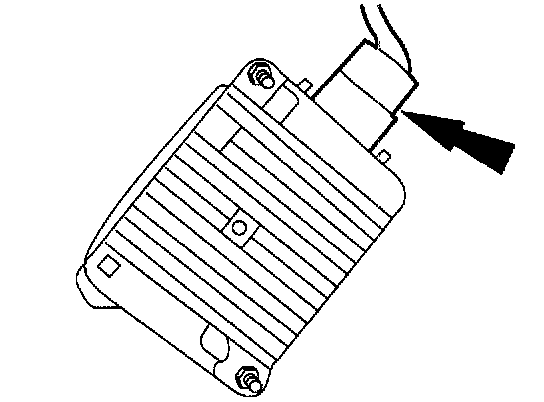

7. Disconnect the FPDM electrical connector.







INSTALLATION

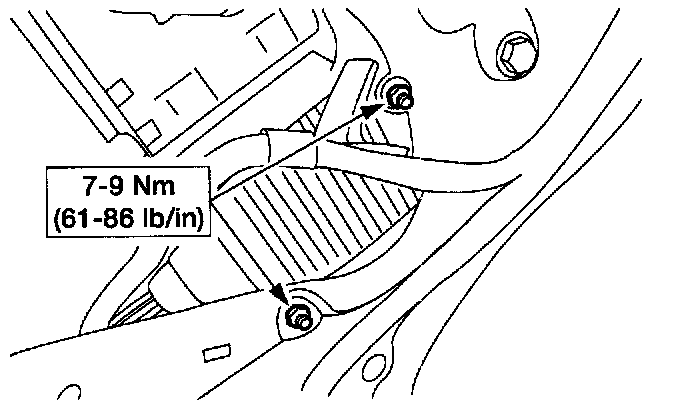

1. To install, reverse the removal procedure.
