Resonator: Service and Repair

REMOVAL
1. Remove the air cleaner housing.

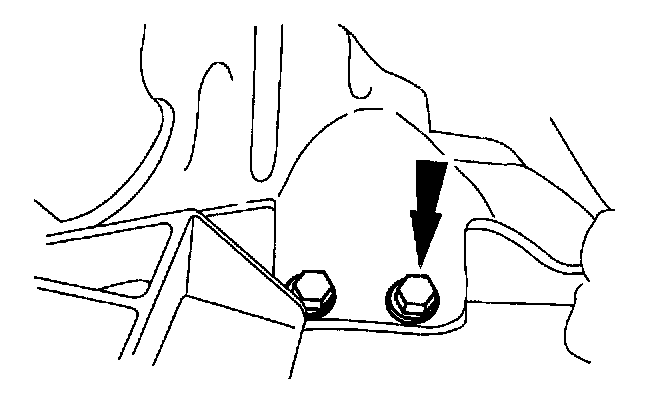

2. Remove the bolts and the air inlet tube grommet seal.

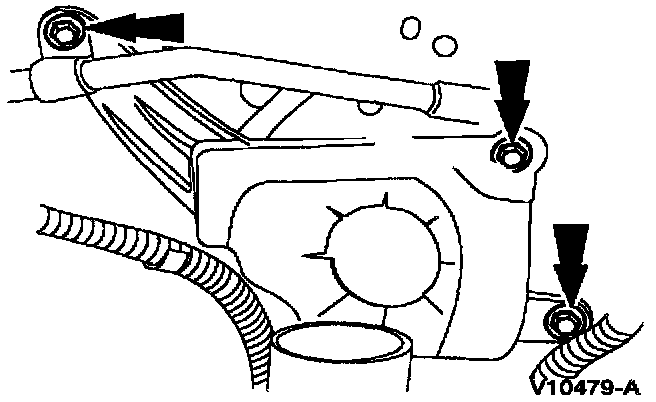

3. Remove the bolts and remove the engine intake air resonator.












INSTALLATION

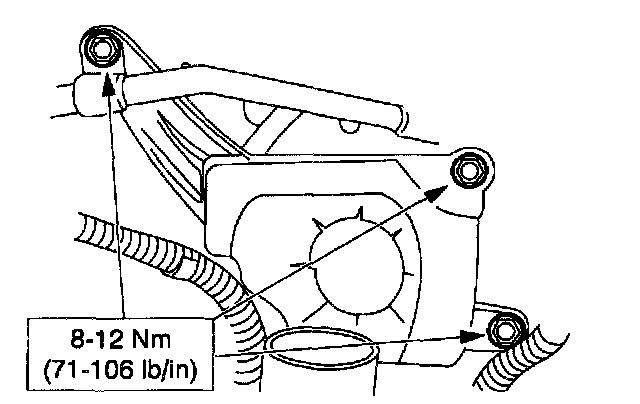

1. Follow the removal procedure in reverse order.
