Intake Air Duct: Service and Repair

REMOVAL







1. Disconnect the Intake Air Temperature (IAT) sensor electrical connector.

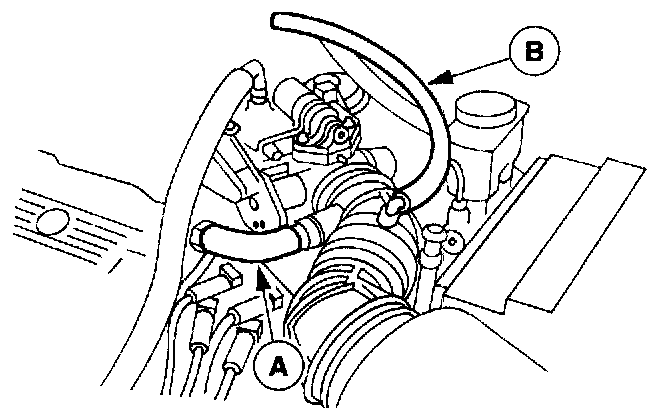

2. Disconnect the (A) crankcase air check valve hose and the (B) brake boost aspirator vacuum hose.







3. Loosen the two (A) air cleaner outlet tube hose clamp screws and remove the (B) air cleaner outlet tube.







INSTALLATION
1. Follow the removal procedure in reverse order.
