Fuel Filler Hose: Service and Repair

REMOVAL

WARNING: DO NOT SMOKE OR CARRY AN OPEN FLAME OF ANY TYPE WHEN WORKING ON OR NEAR ANY FUEL-RELATED COMPONENT. HIGHLY FLAMMABLE MIXTURES ARE ALWAYS PRESENT AND MAY BE IGNITED, RESULTING IN POSSIBLE INJURY.







1. Remove the filler neck retaining screws.
2. Raise and support the vehicle.

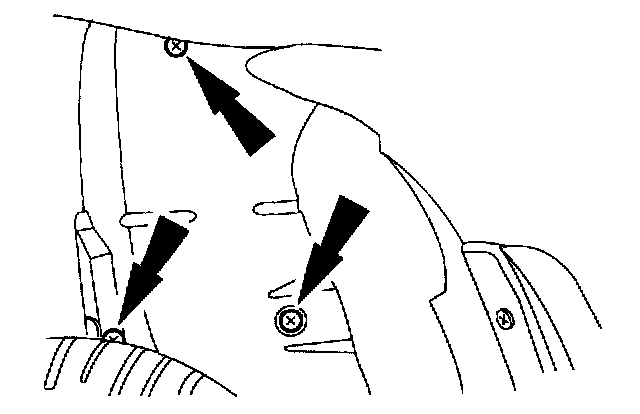

3. Remove the fuel tank filler pipe shield screws and remove the fuel tank filler pipe shield.







4. Remove the fuel tank filler pipe bolt.







5. Disconnect the fuel tank filler pipe.
1. Loosen the clamp and disconnect the fuel tank filler pipe.
2. Loosen the clamp and disconnect the fuel tank filler pipe vent hose.
6. Remove the fuel tank filler pipe.






















INSTALLATION

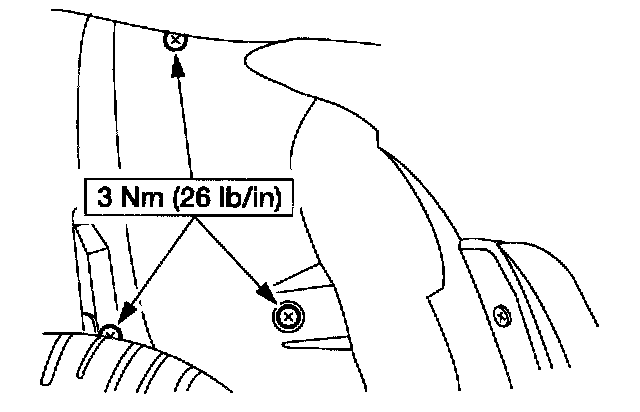

1. To install, reverse the removal procedure.
