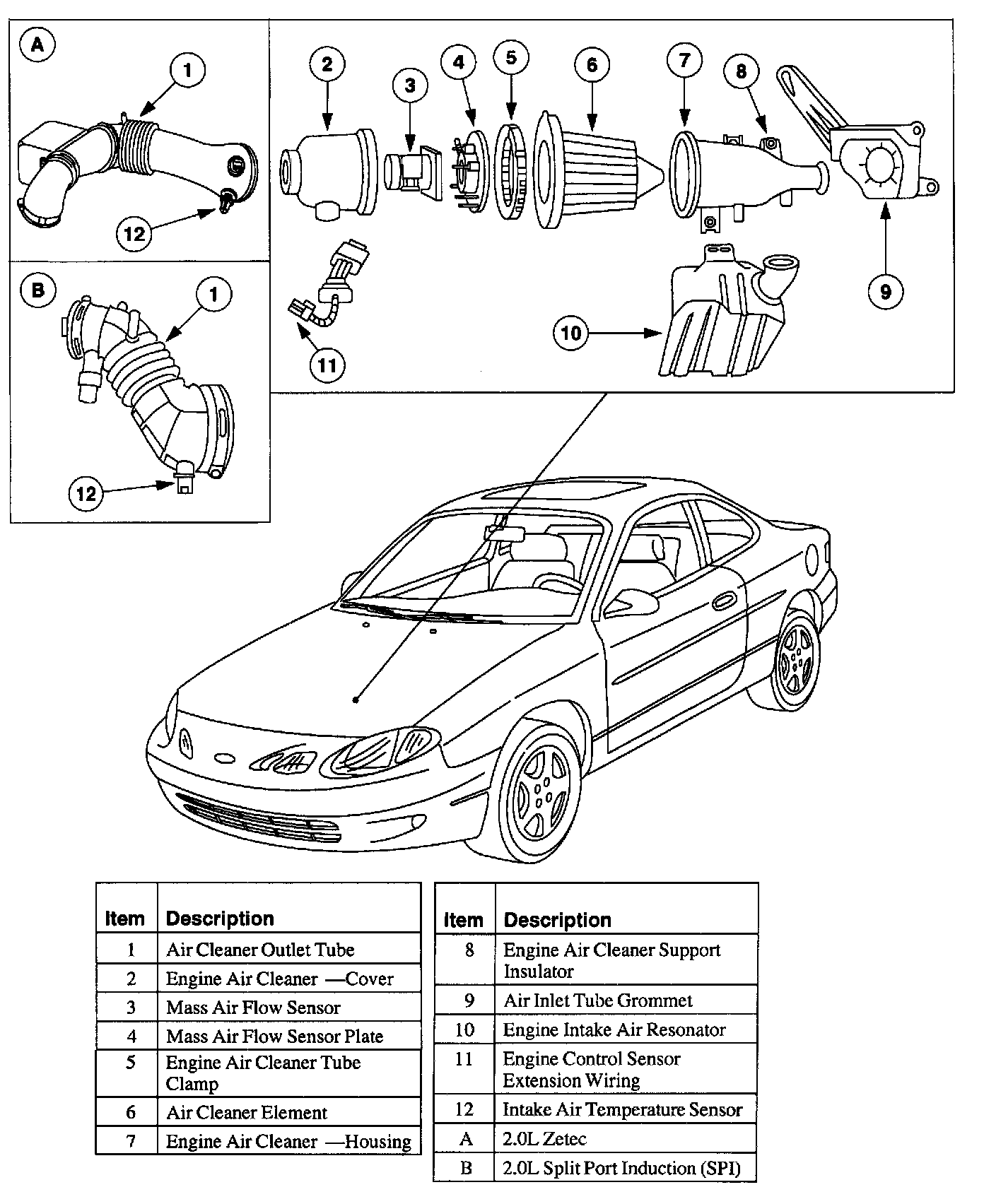

Air Intake System






The air intake system:
- cleans the intake air with a replaceable, dry-type Air Cleaner element (ACL element).
- measures the intake air flow with a Mass Air Flow sensor (MAF sensor).
- measures the intake air temperature with an Intake Air Temperature sensor (IAT sensor).
