Positive Crankcase Ventilation Valve: Service and Repair

REMOVAL

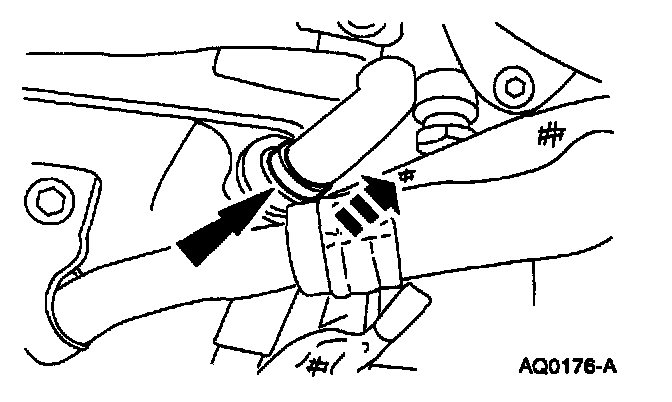

1. Remove the Positive Crankcase Ventilation valve (PCV valve) from the crankcase ventilation tube.

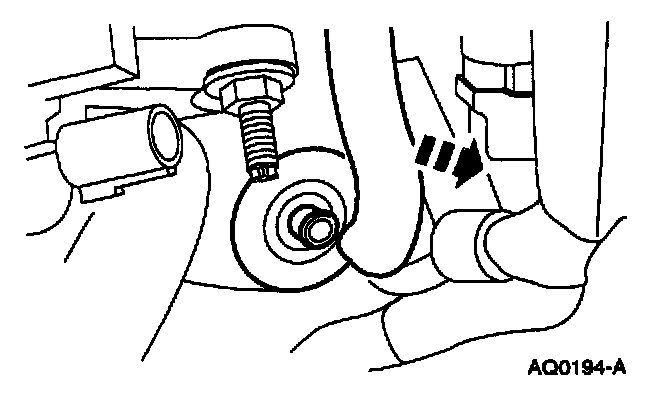

2. Pull upward to remove the positive crankcase ventilation valve from the grommet.

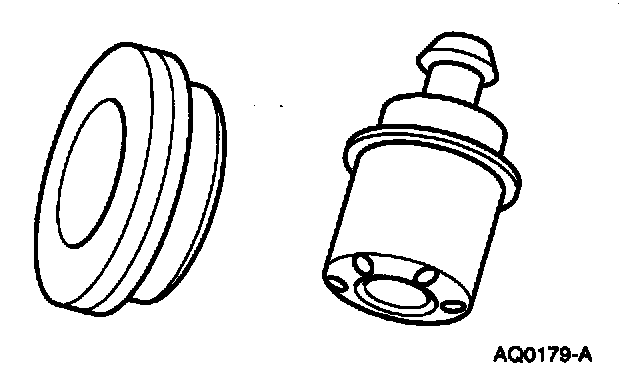

3. Inspect the positive crankcase ventilation valve and grommet for deterioration; replace as necessary.
