EGR Tube: Service and Repair

REMOVAL

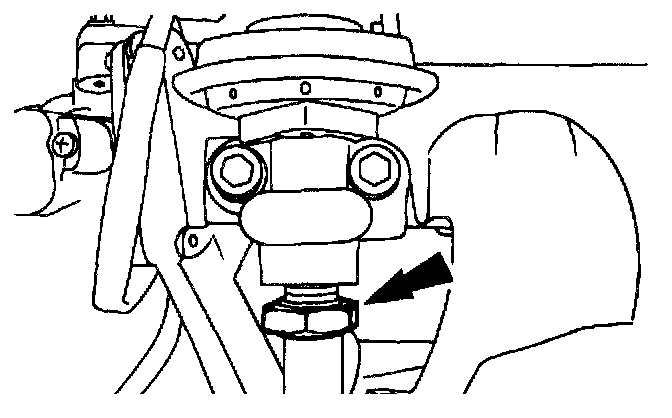

1. Loosen the Exhaust Gas Recirculation (EGR) valve to exhaust manifold tube nut from the bottom of the EGR valve.

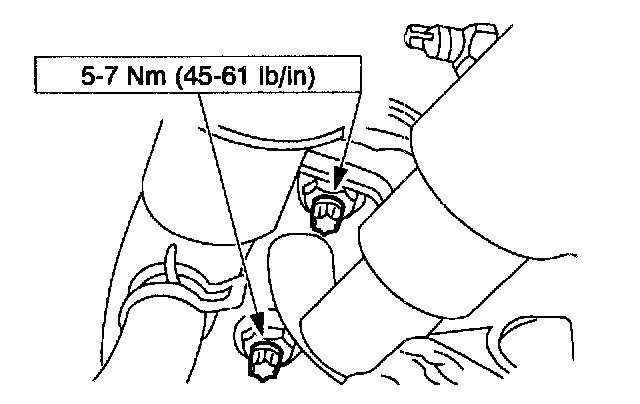

2. Remove the EGR valve to exhaust manifold tube nuts.

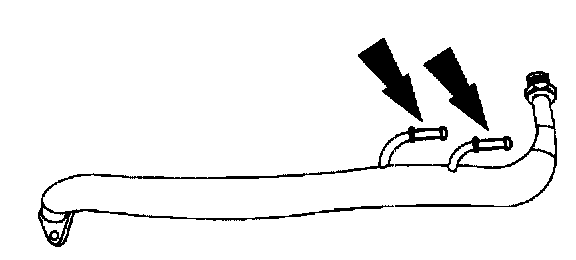

3. Remove the two EGR transducer lines from the line fittings and remove the EGR valve to exhaust manifold tube tube from the vehicle.












INSTALLATION

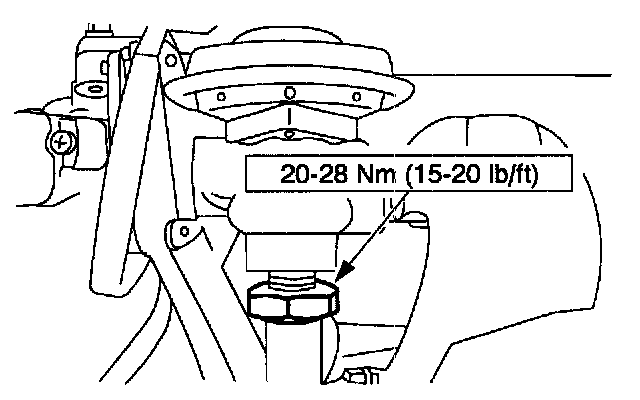

1. To install, reverse the removal procedure.
