EGR Electronic Vacuum Regulator Solenoid: Service and Repair

REMOVAL
1. Disconnect the battery ground cable.







2. Disconnect vacuum hoses and EGR vacuum regulator solenoid electrical connector.

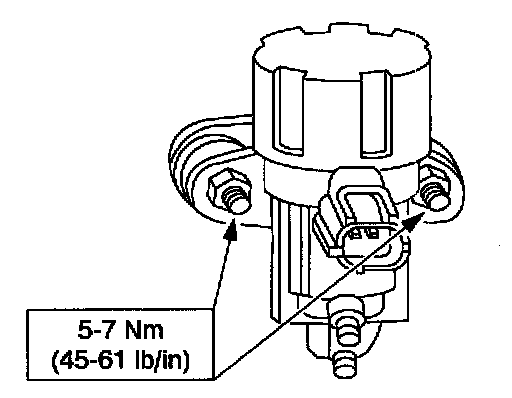

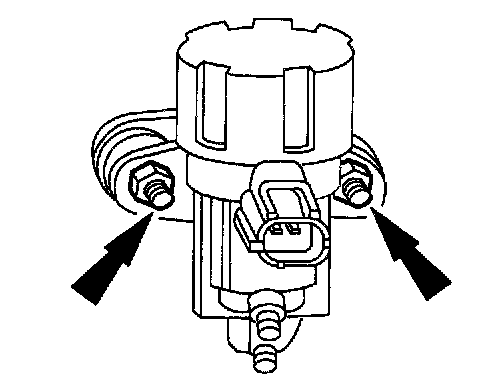

3. Remove the two nuts and the EGR vacuum regulator solenoid.







INSTALLATION
1. Follow the removal procedure in reverse order.
