Evaporative Emission Control Canister: Service and Repair

REMOVAL
1. Raise and support the vehicle.

WARNING: THE EVAPORATIVE EMISSION SYSTEM CONTAINS FUEL VAPOR AND CONDENSED FUEL VAPOR. ALTHOUGH NOT PRESENT IN LARGE QUANTITIES, IT STILL PRESENTS THE DANGER OF EXPLOSION OR FIRE. DISCONNECT THE BATTERY GROUND CABLE FROM THE BATTERY TO MINIMIZE THE POSSIBILITY OF AN ELECTRICAL SPARK OCCURRING, POSSIBLY CAUSING A FIRE OR EXPLOSION IF FUEL VAPOR OR FUEL LIQUID IS PRESENT IN THE AREA.

NOTE: Before the installation of the evaporative emission canister; refer to Leak Test-Evaporative Emission Canister Assembly. Evaporative Emission Canister Assembly Leak Test

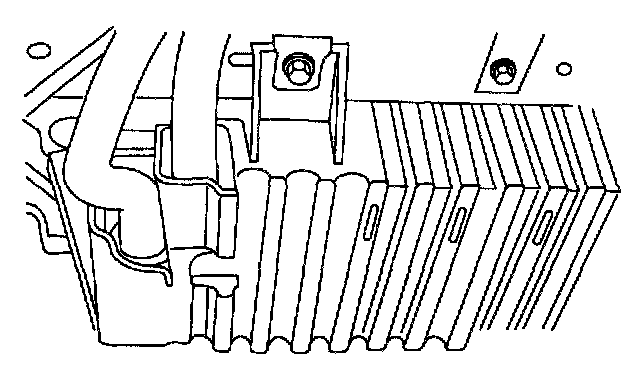

2. Remove the fuel vapor hoses from the evaporative emissions canister.

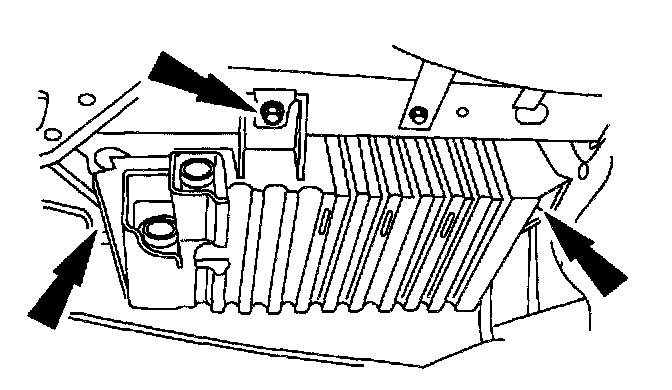

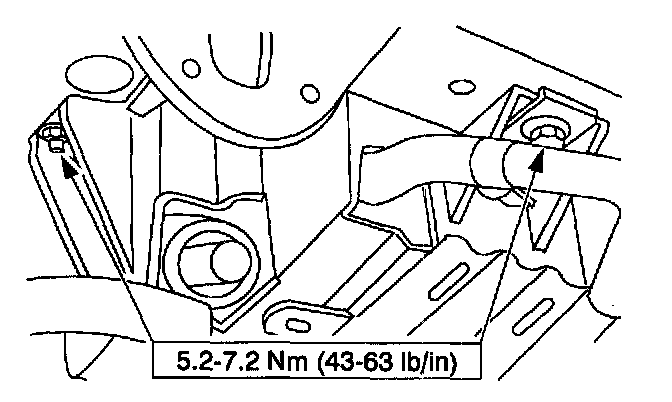

3. Remove the bolts and the evaporative emissions canister bracket. Place bracket and canister on bench.

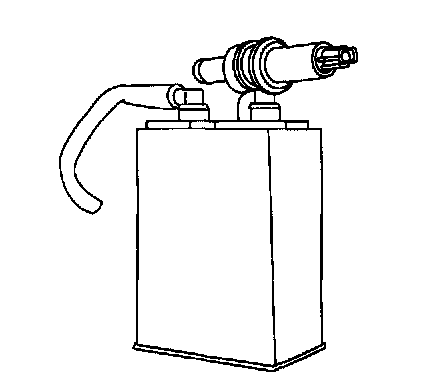

4. Remove evaporative emissions canister from bracket.








INSTALLATION
1. Follow the removal procedure in reverse order.
2. Perform the Evaporative Emission System Leak Test. EVAP System Leak Test
3. Run the Evaporative Emission Running Loss Monitor Repair Verification Drive Cycle. EVAP Running Loss System Repair Verification
