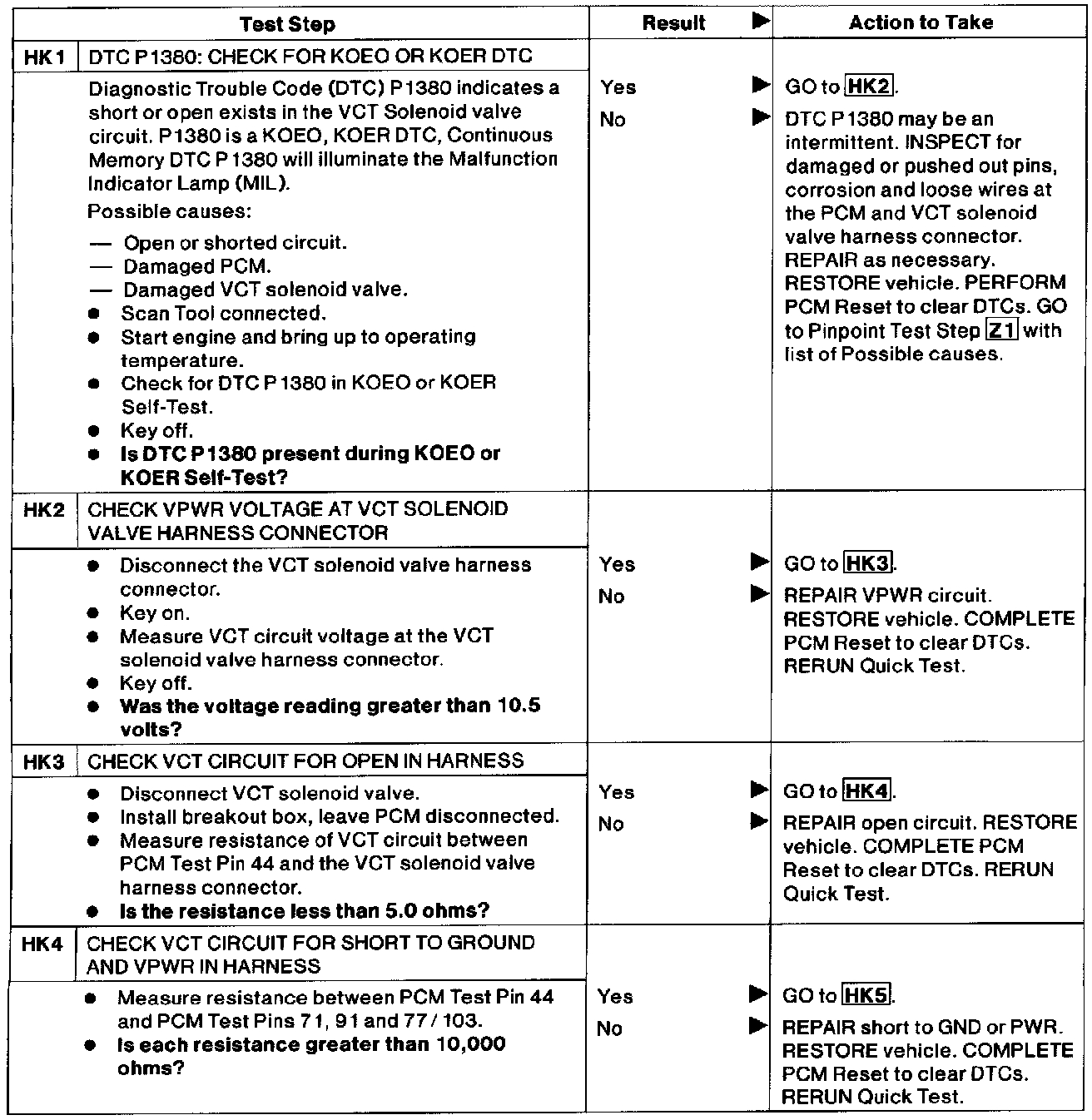

HK - Variable Cam Timing (VCT)
>>
HK1 - HK4
HK1 - HK4
This pinpoint test does not apply to SOHC, confirm DOHC engine selection in the year/make/model screen before continuing.:
