Installation

1. Position the hoses in the vehicle.

NOTE: Lubricate and install new O-ring seals where necessary before installation of the power steering hoses.

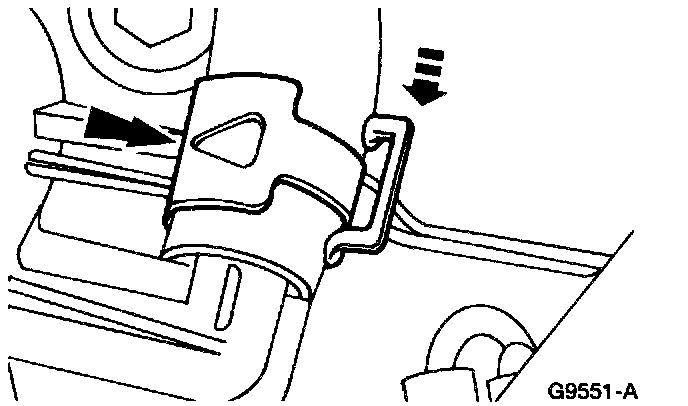

2. Connect the power steering return hose to the power steering pump reservoir and position the clamp.

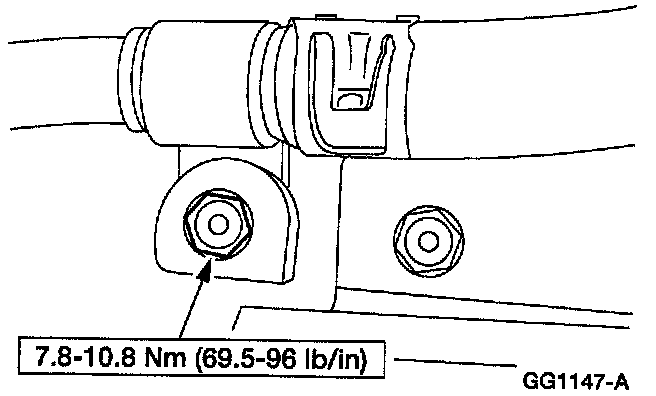

3. Install the power steering return hose retainer bracket bolt.
4. Install the hoses in the middle and lower power steering hose brackets.





5. Install the lower power steering hose retaining bracket bolt.





6. Connect the PSP switch electrical connector.
7. Install the fuel charging wiring support bracket.





8. Connect the fuel charging wiring electrical connectors.





9. Install the (B) power steering pressure and return hoses in the upper bracket and secure with the (A) screw.





10. Position the two power steering pressure hose brackets and install the bolts.
11. Raise and support the vehicle.

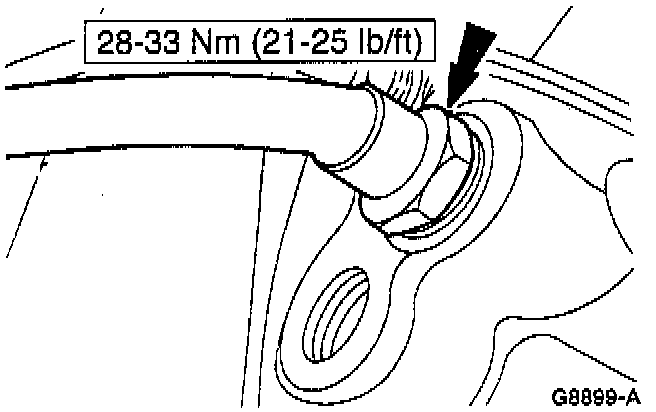

12. Connect the power steering pressure hose to the power steering pump.

NOTE: Ensure that the threads are clean of debris before installation of the hose.





13. Connect the power steering return hose to the steering gear.

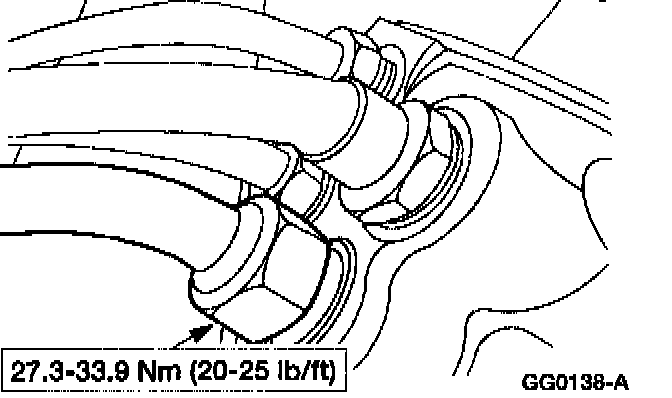

14. Connect the power steering pressure hose to the steering gear.

NOTE: Install a new teflon seal 388898-S on the power steering pressure hose fitting before connecting the hose.

15. Install a new strap to secure the power steering hoses to the steering gear.
16. Lower the vehicle.
17. Connect the battery ground cable.

NOTE: When the battery is disconnected and reconnected, some abnormal drive symptoms may occur while the vehicle relearns its adaptive strategy. The vehicle may need to be driven 16 km (10 mile) or more to relearn the strategy.

18. Fill the power steering system.
