Home >> Mercury >> 1998 >> Tracer L4-122 2.0L SOHC >> Repair and Diagnosis >> Lighting and Horns >> Headlamp >> Testing and Inspection >> Component Tests and General Diagnostics >> Pinpoint Tests >> A H/Lamps Inoperative

A H/Lamps Inoperative

A1 - A2:

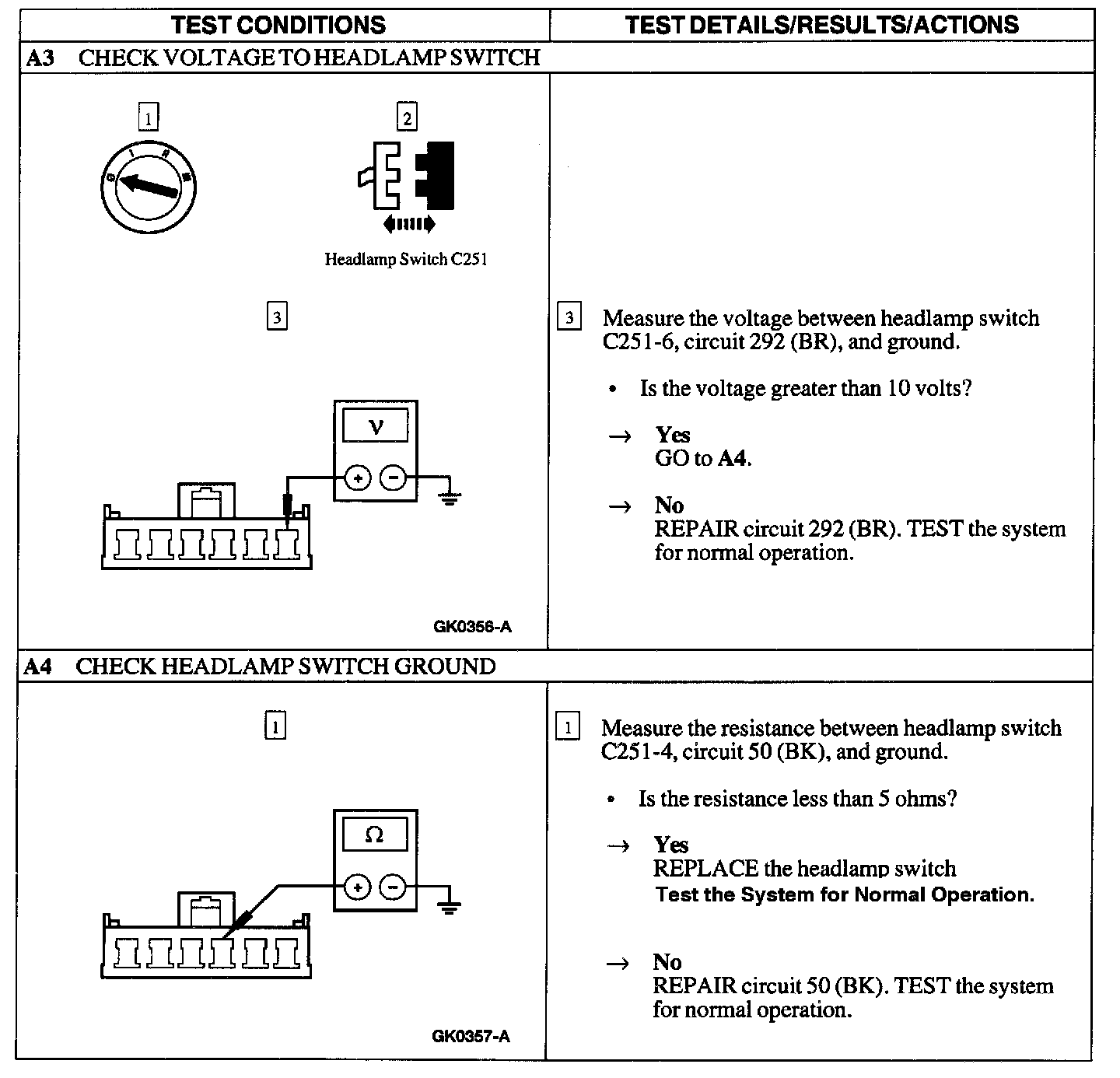

A3 - A4:
